CK-420 High Productivity Computerized PLC Automatic Paper Punching Machine with Motor & Engine
CK-420 High Productivity Computerized PLC Automatic Paper Punching Machine with Motor & Engine
Specifications
Brand Name :
PRINTYOUNG
Model Number :
CK-420
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 10500 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets per Month
Delivery Time :
15 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Punch Max. Size :
420 * 420 mm , max. A3 size
Punch Min. Size :
70 * 100 mm , min. A7 size
Max. Punch Thickness :
2 mm
Max. Height for Feeding Paper :
600 mm
Max. Working Speed :
7200 times/hour
Paper Available :
50 ~ 250 g/m²
Max. Height for Feeding Cover :
600 mm
Power :
380V / 50Hz / 3kw
Machine Weight :
900 kg
Air Compressor :
1.5kw (customer need prepare for themselves
Description
CK-420 High Productivity Computerized PLC Automatic Paper Punching Machine with Motor & Engine

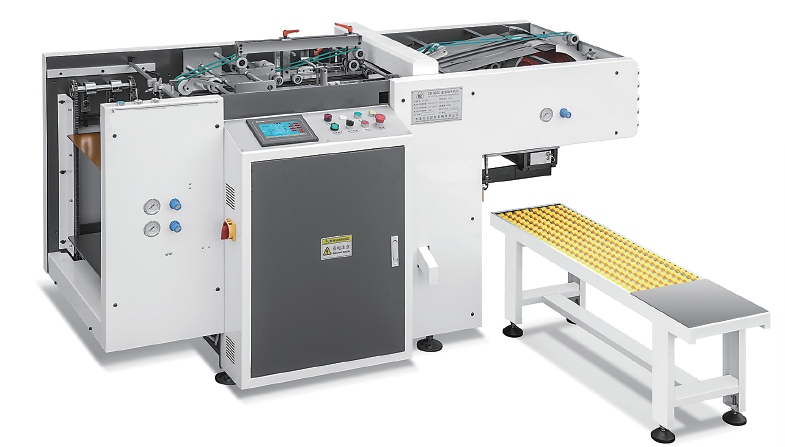

CK-420 Automatic Punching Machine
CK-420 High Productivity Computerized PLC Automatic Paper Punching Machine with Motor & Engine
Features
CK-420 automatic punching machine is one of our machinery designed for notebook factory to do hole punching jobs.Notebook factory mainly is paper size A4,then if they have some sketch paper,may request to do A3 paper punching.Then CK-420 is comming to be designed.Also this machine can do pp sheets,hardcover or cardboard,it already be a best choice for wire o notebook perforate.
Advantage:
1.Machine not only can do max. A3 size paper,but also can punch min A7 paper,this already be enough for notebook factory.Wire o notebook factory 80% choice to use this type machine do hole perforate.

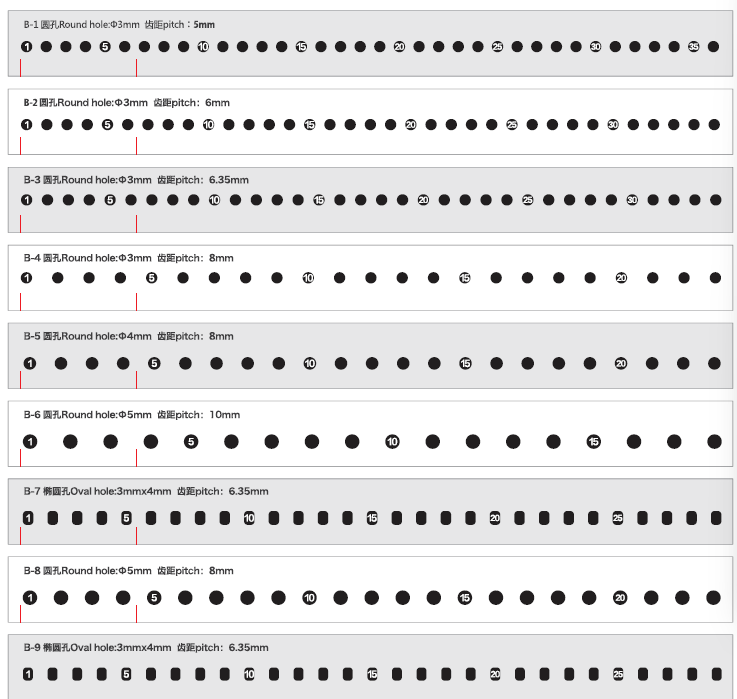

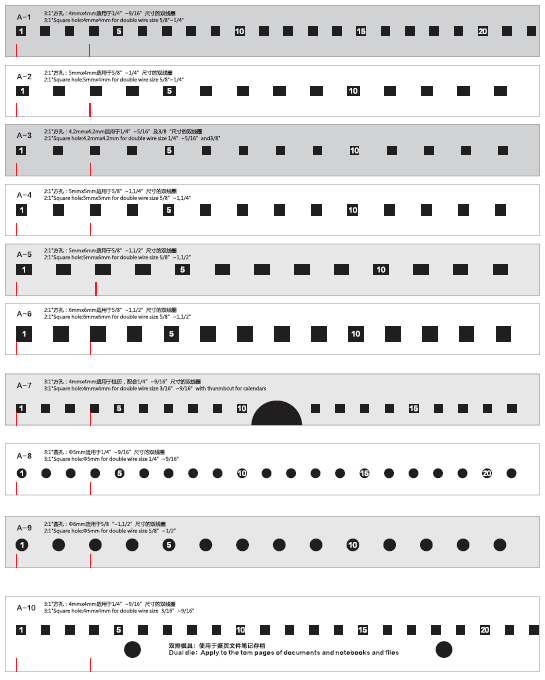

2.Stables and easy adjust,punch mould change very easy only 5 minuters.For index blocks, some special pages with index also could be punched by this machine.
3.Feeding methods,pp or paper it feeding by feeding pusher,and hard cover used sunction nozzle.
CK-420 High Productivity Computerized PLC Automatic Paper Punching Machine with Motor & Engine
CK-420 High Productivity Computerized PLC Automatic Paper Punching Machine with Motor & Engine
Technical Parameters
Punch Max. Size
420 * 420 mm , max. A3 size
Punch Min. Size
70 * 100 mm , min. A7 size
Max. Punch Thickness
2 mm
Max. Height for Feeding Paper
600 mm
Max. Working Speed
7200 times/hour
Paper Available
50 ~ 250 g/m²
Max. Height for Feeding Cover
600 mm
Power
380V / 50Hz / 3kw
Machine Weight
900 kg
Air Compressor
1.5kw (customer need prepare for themselves)
Applications
Application:paper,calendar,cardboard.
