1 Channel Fiber Optic Rotary Joint with 1270-1610nm Wavelength and 18-channel Power Transfer
1 Channel Fiber Optic Rotary Joint with 1270-1610nm Wavelength and 18-channel Power Transfer
Specifications
Brand Name :
Panlink
Model Number :
PSR-C18-FORJ
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
FORJ Channel :
1 Channel
Fiber Type :
SM 9/125μm Fiber
Wavelength nm :
1270-1610
Connector Types :
LC/PC
Protection Degree :
IP51(higher or lower on request)
Rotating Speed :
300rpm
Description
1-channel FORJ 1270-1610nm LC/PC with 18-channel Power Transfer

PSR-C18-FORJ

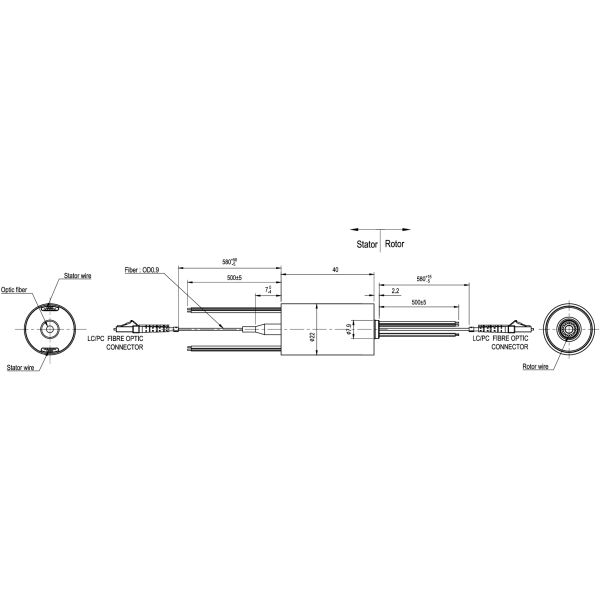

Dimensions in millimeters

1 Channel Fiber Optic Rotary Joint with 1270-1610nm Wavelength and 18-channel Power Transfer
Specification
Circuits 18 for Power Transmission, 1 for FORJ
Fiber Optic Specifications
Fiber Type SM 9/125μm Fiber
Wavelength nm 1270-1610
Connector Types LC/PC
Insertion Loss Max.(dB) 1.2
Insertion Loss Ripple(dB) 0.25
Return Loss(dB) 40
Electrical Specifications
Current Rating 2A
Voltage Rating 110VDC
Insulation Resistance Max 500MΩ @ 500VDC
Electrical Noise Max 10mΩ
Dielectric Noise 500VDC @ 50Hz, 60s
Lead Cable AWG28 Teflon
Mechanical Specifications
Rotating Speed 300rpm
Operating Temperature -40℉ to +160℉ (-40℃ to +71℃)
Storage Temperature -49℉ to +176℉(-45℃ to +80℃)
Operating Humidity 0~60%RH
Torque 0.4N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
