High-precision Metal Fiber Optic Rotary Joints for Radar, Electro-Optical Pods and Wind Turbines with Long Lifetime

• 1 Channel Fiber Optic Joint

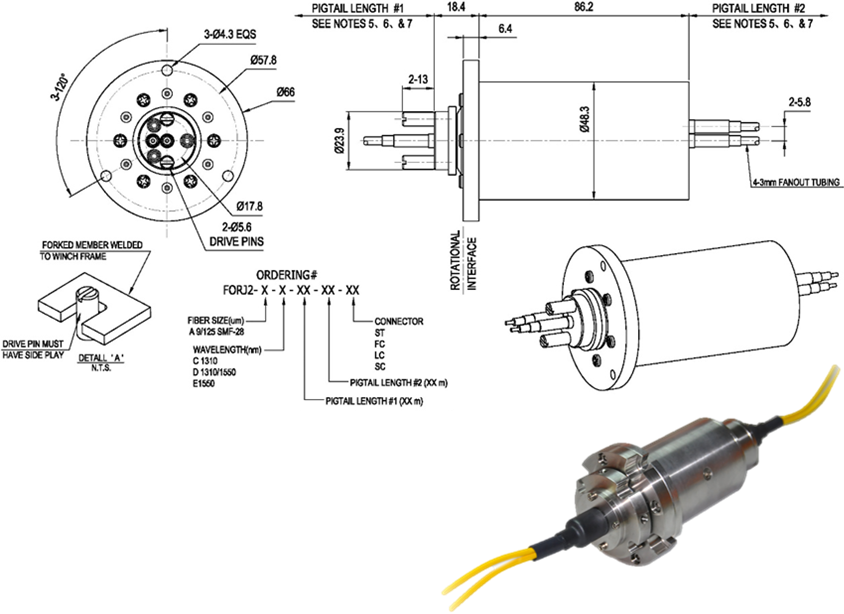

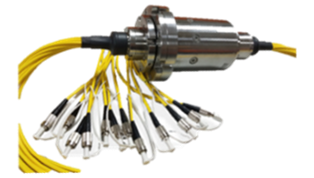

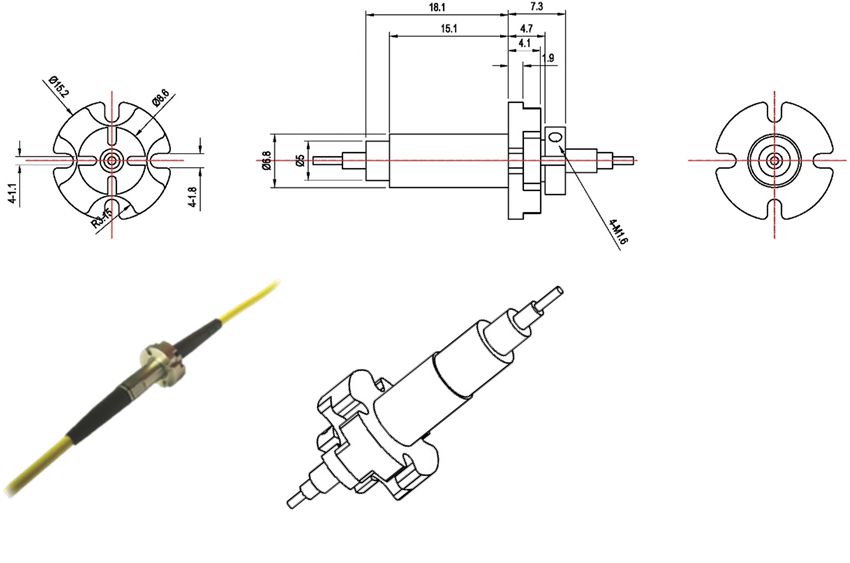

High Precision Metal Fiber Optic Rotary Joint For Radar / Electro Optical Pods

Model	RJ01-18-3
Channel	1 Channel	Wavelength range	850 nm/1310-1610nm Optional
Insertion Loss	＜0.5dB (typical: 0.3 dB)	Insertion loss ripple	<0.2 dB (typical: 0.1 dB)
Return Loss	>40 dB (typical: 45 dB, 23 C)	Maximum speed	2,000 rpm
Start Up Torque	<20 mN.m	Estimated life cycle	200 million revolutions
Optical Power Handling	5mw	Housing Material	Stainless stee
Pull Strength	10 N	IP rating	IP 65
Package Style	Pigtail 2000mm both side	Connector	FC/LC/ST/SC OPTIONAL
Weight, Approx.	30 g	Fiber types	Single or Multi mode
Operating Temperature	-40 °C ~ +70 °C	StorageTemperature	-55 °C ~ +85 °C
Vibration	MIL-STD-810H Method 514.8 Procedure I	Shock	STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth)
Relative Humidity, Max.	95%	Relative Humidity, Max.	95%

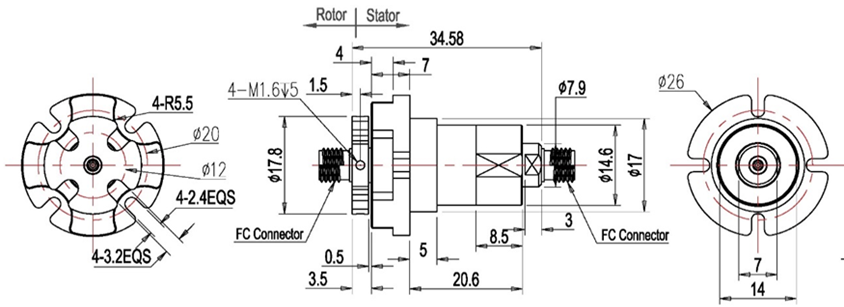

High Precision Metal Fiber Optic Rotary Joint For Radar / Electro Optical Pods

Model	RJ01-18-3
Channel	1 Channel	Wavelength range	850 nm/1310-1610nm Optional
Insertion Loss	＜0.5dB (typical: 0.3 dB)	Insertion loss ripple	<0.2 dB (typical: 0.1 dB)
Return Loss	>40 dB (typical: 45 dB, 23 C)	Maximum speed	2,000 rpm
Start Up Torque	<20 mNm	Estimated life cycle	200 million revolutions
Optical Power Handling	5mw	Housing Material	Stainless stee
Pull Strength	Nil	IP rating	IP 65
Package Style	FC Connector	Connector	FC
Weight, Approx.	30 g	Fiber types	Single or Multi mode
Operating Temperature	-40 °C ~ +70 °C	StorageTemperature	-55 °C ~ +85 °C
Vibration	MIL-STD-810H Method 514.8 Procedure I	Shock	STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth)
Relative Humidity, Max.	95%	Relative Humidity, Max.	95%

• 2 Channel Fiber Optic Joint

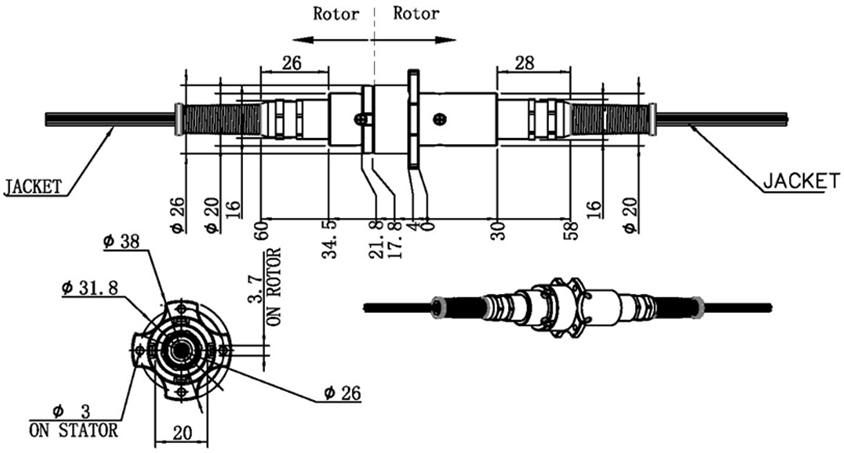

High Precision Metal Fiber Optic Rotary Joint For Radar / Electro Optical Pods

Model	RJ01-18-3
Channel	2 Channel	Wavelength range	1310-1610nm
Insertion Loss	＜3.5dB (typical: 3 dB)	Insertion loss ripple	<0.5 dB
Return Loss	>35 dB (typical: 40 dB, 23 C)	Maximum speed	2,000 rpm
Start Up Torque	<60 mN.m	Estimated life cycle	200 million revolutions
Optical Power Handling	5mw	Housing Material	Stainless stee
Pull Strength	10 N	IP rating	IP 65
Package Style	Pigtail 2000mm (optional)	Connector	FC/LC/ST/SC OPTIONAL
Weight, Approx.	150 g	Fiber types	Single mode
Operating Temperature	-40 °C ~ +70 °C	Storage Temperature	-55 °C ~ +85 °C
Vibration	MIL-STD-810H Method 514.8 Procedure I	Shock	STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth)
Relative Humidity, Max.	95%	Relative Humidity, Max.	95%

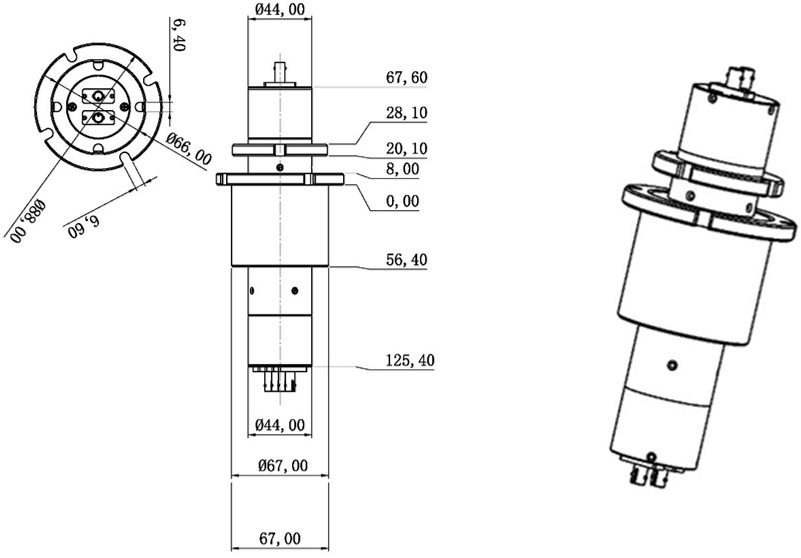

High Precision Metal Fiber Optic Rotary Joint For Radar / Electro Optical Pods

Model	RJ01-18-3
Channel	2-6 Channel	Wavelength range	850 nm/1310-1610nm Optional
Insertion Loss	＜3.5dB (typical: 3 dB)	Insertion loss ripple	<0.5 dB
Return Loss	>35 dB (typical: 40 dB, 23 C)	Maximum speed	2,000 rpm
Start Up Torque	<0.5Nm	Estimated life cycle	200 million revolutions
Optical Power Handling	5mw	Housing Material	Stainless stee
Pull Strength	10 N	IP rating	IP 65
Package Style	Connector	Connector	ST
Weight, Approx.	1.5kg	Fiber types	Single or Multi mode
Operating Temperature	-40 °C ~ +70 °C	StorageTemperature	-55 °C ~ +85 °C
Vibration	MIL-STD-810H Method 514.8 Procedure I	Shock	STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth)
Relative Humidity, Max.	95%	Relative Humidity, Max.	95%

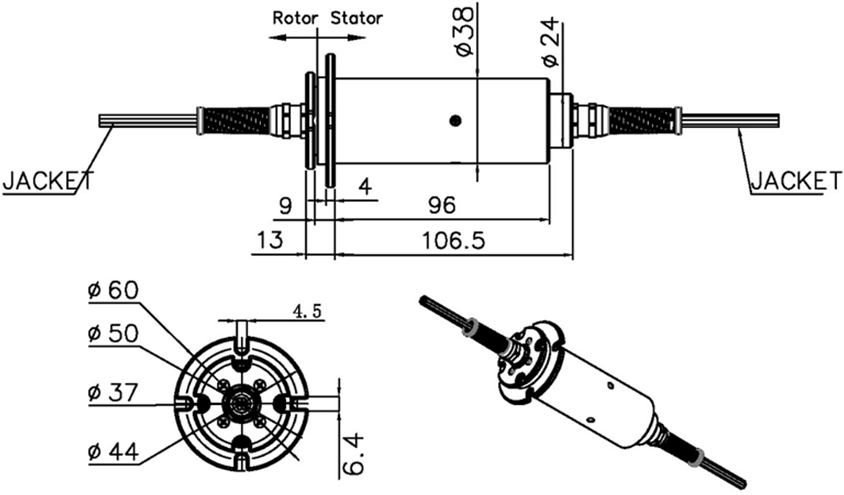

High Precision Metal Fiber Optic Rotary Joint For Radar / Electro Optical Pods

Model	RJ01-18-3
Channel	2-7 Channel	Wavelength range	850 nm/1310-1610nm Optional
Insertion Loss	＜3.5dB (typical: 3 dB)	Insertion loss ripple	<0.5 dB
Return Loss	>35 dB (typical: 40 dB, 23 C)	Maximum speed	2,000 rpm
Start Up Torque	<0.5Nm	Estimated life cycle	200 million revolutions
Optical Power Handling	5mw	Housing Material	Stainless stee
Pull Strength	10 N	IP rating	IP 65
Package Style	Pigtail	Connector	FC/LC/ST/SC OPTIONAL
Weight, Approx.	0.5kg	Fiber types	Single or Multi mode
Operating Temperature	-40 °C ~ +70 °C	Storage Temperature	-55 °C ~ +85 °C
Vibration	MIL-STD-810H Method 514.8 Procedure I	Shock	STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth)
Relative Humidity, Max.	95%	Relative Humidity, Max.	95%

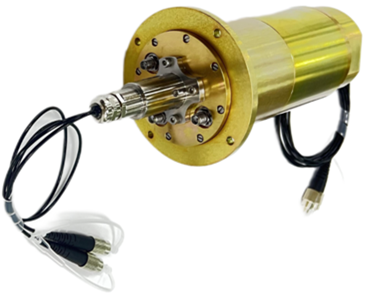

High Precision Metal Fiber Optic Rotary Joint For Radar / Electro Optical Pods

Model	RJ01-18-3
Channel	2-31 Channel	Wavelength range	850 nm/1310-1610nm Optional
Insertion Loss	＜3.5dB (typical: 3 dB)	Insertion loss ripple	<0.5 dB
Return Loss	>35 dB (typical: 40 dB, 23 C)	Maximum speed	2,000 rpm
Start Up Torque	<0.5Nm	Estimated life cycle	200 million revolutions
Optical Power Handling	5mw	Housing Material	Stainless stee
Pull Strength	10 N	IP rating	IP 65
Package Style	Pigtail	Connector	FC/LC/ST/SC OPTIONAL
Weight, Approx.	1 kg	Fiber types	Single or Multi mode
Operating Temperature	-40 °C ~ +70 °C	Storage Temperature	-55 °C ~ +85 °C
Vibration	MIL-STD-810H Method 514.8 Procedure I	Shock	STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth)
Relative Humidity, Max.	95%	Relative Humidity, Max.	95%

• 1 Channel RF + Multi Channel Fiber Optic Joint

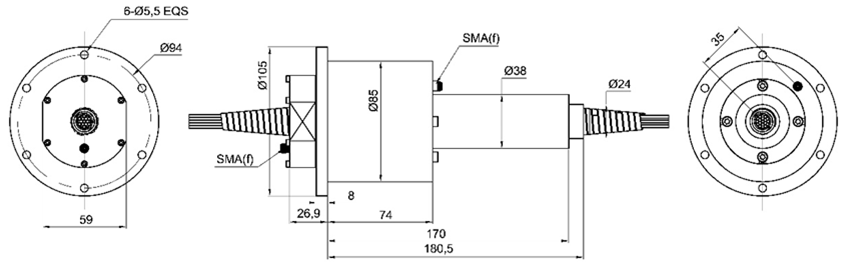

High Precision Metal Fiber Optic Rotary Joint For Radar / Electro Optical Pods

Model	HH02-501
Channel	Channel 1	Channel 2-5(FORJ)
Interface Type	SMA(f)	Fiber types	Single mode
Frequency Range	DC - 18 GHz	Wavelength range	1310-1550nm
Peak Power, Max.	500W	Insertion loss	<3.5dB
Average Power, Max.	5 W	Insertion loss ripple	<1.5dB
VSWR, Max.	2.0 @ DC-4G, 2.5 @ 4-8G, 3.5 @ 8-12G, 4 @ 12-18G	Return loss	>40dB
VSWR - WOW, Max.	0.1@ DC-4GHz 0.4@4-8GHz 0.8@8-12GHz 1@12-18GHz	Light power(Max)	23dBm
Insertion Loss, Max.	0.6dB@ DC-4GHz 1dB@4-8GHz 2dB@8-12GHz 3.5dB@12-18GHz	Connector types	FC/ST/LC/SC
Insertion Loss WOW, Max.	0.1dB@ DC-4GHz 0.35dB@4-8GHz 0.7dB@8-12GHz 1dB@12-18GHz	Channel	4
Rotating Speed, Max.	60rpm
Life Time, Min.	5 million revolutions
Starting Torque, Max	0.2 Nm @ room temperature
Housing Material	aluminum alloy
Housing Surface Finish	chromate conversion coat
Weight, Approx.	350 g
Operating Temperature	-40 °C ~ +70 °C
Storage Temperature	-55 °C ~ +85 °C
Relative Humidity,Max.	95%
Protection Level	IP54

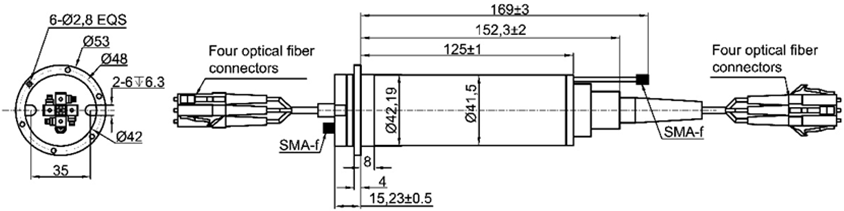

High Precision Metal Fiber Optic Rotary Joint For Radar / Electro Optical Pods

Model	HH02-501
Channel	Channel 1	Channel 2-5(FORJ)
Interface Type	SMA(f)	Fiber types	Single mode
Frequency Range	DC - 18 GHz	Wavelength range	1310-1550nm
Peak Power, Max.	500W	Insertion loss	<3.5dB
Average Power, Max.	5 W	Insertion loss ripple	<1.5dB
VSWR, Max.	2.0 @ DC-4G, 2.5 @ 4-8G, 3.5 @ 8-12G, 4 @ 12-18G	Return loss	>40dB
VSWR - WOW, Max.	0.1@ DC-4GHz,0.4 @ 4-8GHz , 0.8 @ 8-12GHz, 1 @ 12-18GHz	Light power(Max)	23dBm
Insertion Loss, Max.	0.6dB@ DC-4GHz 1dB@4-8GHz 2dB@8-12GHz 3.5dB@12-18GHz	Connector types	FC/ST/LC/SC
Insertion Loss WOW, Max.	0.1dB@ DC-4GHz 0.35dB@4-8GHz 0.7dB@8-12GHz 1dB@12-18GHz	Channel	4
Rotating Speed, Max.	60rpm
Life Time, Min.	5 million revolutions
Starting Torque, Max	0.2 Nm @ room temperature
Housing Material	aluminum alloy
Housing Surface Finish	chromate conversion coat
Weight, Approx.	350 g
Operating Temperature	-40 °C ~ +70 °C
Storage Temperature	-55 °C ~ +85 °C
Relative Humidity,Max.	95%
Protection Level	IP54
