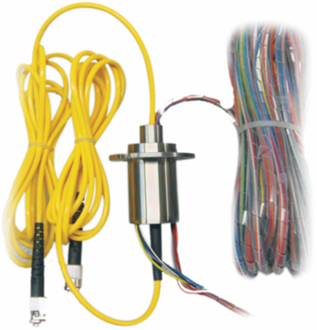

High Speed Rotary Joint IP54 Fiber Optic Hybrid Rotary Joint Compatible With Multiple Protocols
High Speed Rotary Joint IP54 Fiber Optic Hybrid Rotary Joint Compatible With Multiple Protocols
Specifications
Brand Name :
Panlink
Model Number :
PSR-FORJ Series
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Name :
High Speed Rotary Joint
Lifetime :
10 million revolutions
Housing Material :
Aluminum Alloy
Protection Level :
IP54
Fiber Type :
SM or MM Optional
Wavelength Range :
650~1650nm
Connector Types :
FC, SC, ST, SMA or LC
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

High-speed and Long-lasting Fiber Optic Hybrid Roatry Joint Compatible with Multiple Protocols

Fiber optic rotary joints combine electrical slip rings with fiber optic rotary joints, providing a multifunctional rotating interface for electrical and optical connections. These hybrid units enable the unlimited transmission of power, signals, and large amounts of data between stationary and rotating platforms, optimizing system configurations and reducing costs. Panlink offers a wide range of electrical and optical combinations to meet various application needs. A highly compact miniature slip ring can be integrated with a single-channel fiber optic rotary joint for low current, signal, and high-speed data transfer in HD camera systems. Conversely, a rugged high-power electrical slip ring can be combined with multi-channel fiber optic rotary joints for use in ROVs.

When harsh environment operation is required, options such as stainless steel housing, fully sealed enclosures, and fluid-filled pressure compensation are available. Additionally, hybrid optical-electrical units can be combined with fluid rotary unions to provide a complete solution for electrical, optical, and fluid rotating interfaces.

Main Application High Speed Rotary Joint IP54 Fiber Optic Hybrid Rotary Joint Compatible With Multiple Protocols
• Mobile aerial camera systems
• Surveillance systems
• Robotics
• Automated machinery
• Winch and TMS applications
• Unmanned vehicles

Feature
• Combined electrical slip ring with fiber optical rotary joint
• Flexible transmission of power, signal and high bandwidth data through a single rotational joint
• Wide range of electrical and optical options
• Multi high power circuits optional
• Compatible with data bus protocol
• Can be combined with fluid rotary unions

Model Channels

Current Rating

(amps)

Voltage Rating

(VAC)

 Size(mm) rpm
Electrical RF 2 5 10 15 120 220 OD L
PSR-F3-24-FORJ 24 1 24 × 22 51.5 300
PSR-F3-36-FORJ 36 1 36 × 22 70 300

PSR-F3-36-FORJ

-IP68

 36 1 36 × × 22 75 300

PSR-F3-4P16S

-FORJ

 20 1 16 × 4 × × 27 60.8 300

PSR-F3-4P38S

-FORJ

 42 1 38 4 × 38 100 300
PSR-F7-12-FORJ 12 1 12 × 24.8 38.7 300

Remark: The models listed above are standard units. Custom combinations of electrical and optical

components are available upon request.

Specification
Voltage Rating 220VAC
Current Rating 12/ 24/ 36 x 2amps
Insulation Resistance 200MΩ @ 500VDC
Rotating Speed, Max 300rpm
Torque During Rotation, Max 0.01N.m
Life Time, Min 10 million revolutions
Lead Wires 300mm AWG#30 Teflon Wires
Housing Material Aluminum Alloy
Working Temperature -40℃ to +80℃(-40℉ to +176℉)
Storage Temperature -45℃ to +85℃(-49℉ to +185℉)
Relative Humidity 95%
Protection Level IP54
Fiber Type SM or MM
Channels 1
Wavelength Range 650~1650nm
Insertion Loss, Max 2dB (typical 0.5dB)
Insertion Loss Ripple ＜+/-0.25dB(typical:+/-0.15dB)
Return Loss(SM), Min 40dB(typical:45dB, 23C)
Speed, Max 2000rpm
Pulling Strength 10N
Optical Power Handling 5mW/standard
Package Style Pigtails on both ends
Connector Types FC, SC, ST, SMA or LC

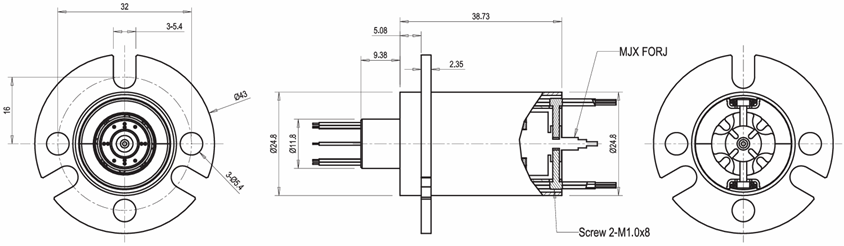

PSR-F7-12-FORJ Dimensions

High Speed Rotary Joint IP54 Fiber Optic Hybrid Rotary Joint Compatible With Multiple Protocols

PSR-F3-24-FORJ Dimensions

High Speed Rotary Joint IP54 Fiber Optic Hybrid Rotary Joint Compatible With Multiple Protocols

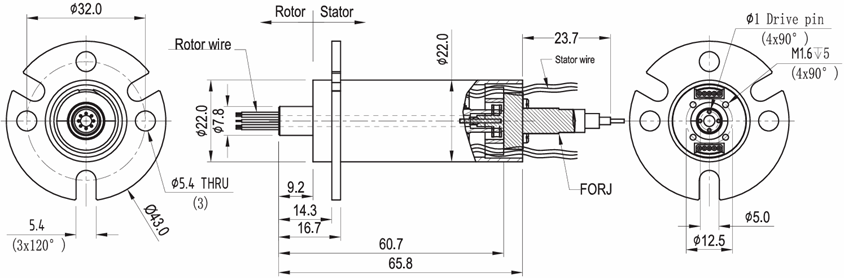

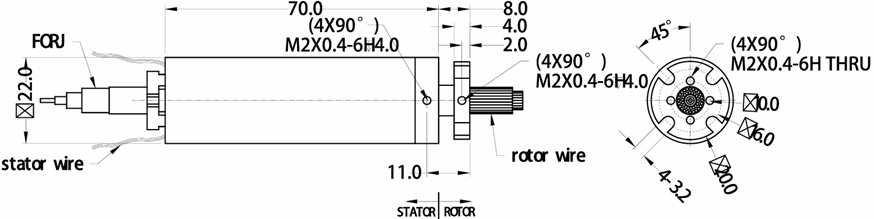

PSR-F3-36-FORJ Dimensions

High Speed Rotary Joint IP54 Fiber Optic Hybrid Rotary Joint Compatible With Multiple Protocols
