Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss
Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss
Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss
Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss
Specifications
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
MOQ :
1
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Model Number :
PSR-RJ Series
Price :
Negotiable
Name :
Coaxial Rotary Joint
Description

Stable Coaxial Rotary Joint For Radar, Medical Equipments And Satellite Communication With Low Insertion Loss

RF Rotary Joint

RF rotary joints are electromechanical devices designed to transmit RF signals between a fixed platform and a rotating platform. They are essential components in various high-performance systems, including high-definition camera systems, defense radar systems, and satellite communications (SATCOM).

Panlink RF rotary joints are engineered with a compact design, ensuring low insertion loss, excellent voltage standing wave ratio (VSWR), minimal fluctuation of electrical characteristics, and high crosstalk attenuation across all channels and frequencies.

Our product range includes a variety of RF rotary joints to meet diverse application needs:

• Coaxial rotary joints
• Waveguide rotary joints
• Hybrid RF rotary joints

Coaxial Rotary Joint

• Single Channel Coax Rotary Joint

Model Number of Channel Frequency Range Interface Peak Power, Max
RJ01-03-1 1 DC -3 Ghz SMA-F (50Ω) 3 KW
RJ01-06-1 1 DC -6 Ghz SMA-F (50Ω) 3 KW
RJ01-40-4 1 DC - 40 GHz 2.92mm-F (50Ω) 500W @ 1GHz
RJ01-18-3 1 DC -18 Ghz N-F (50Ω) 10 KW
RJ01-18-1 1 DC - 18 Ghz SMA-F (50Ω) 3 KW

Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion LossStable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss

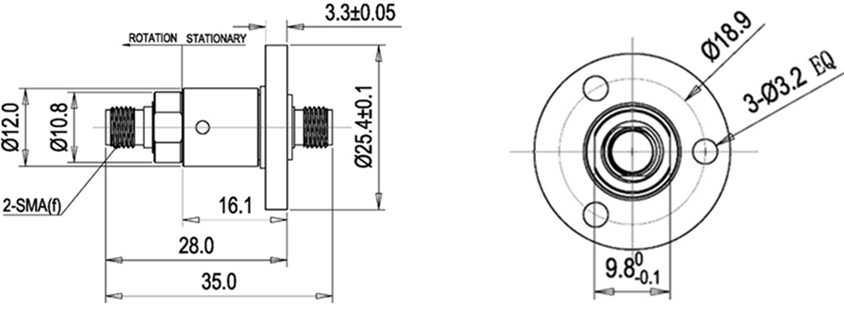

Model RJ01-03-1
Interface Type SMA-F(50Ω)
Style I
Frequency Range DC to 3GHz
Peak Power, Max 3KW
Average Power, Max 200W @ 1GHz
VSWR, Max

1.3 @ DC - 10GHz

1.4 @ 10 - 18GHz
VSWR- WOW, Max 0.1
Insertion Loss, Max

0.3dB @ DC - 10GHz

0.45dB @ DC - 10GHz
Rotating Speed, Max 200rpm
Life time, Min 5 million revolutions
Starting Torque, Max 0.05N.m @ room temperature
Torque During Rotation, Max 0.05N.m @ room temperature
Housing Material Stainless Steel
Housing Surface Finish Passivate
Weight, Approx. 30g
Operating Temperature Range -40℃ ~ +70℃
Storage Temperature Range -55℃ ~ +85℃
Relative Humidity, Max 95%
Protection Level IP40

Model RJ01-18-1
Interface Type SMA-F (50Ω)
Style I
Frequency Range DC to 18GHz
Peak Power, Max. 3 KW
Average Power, Max.

150W @ 1GHz

40W @ 15GHz

30W @ 18GHz
VSWR, Max.

1.3 @ DC - 10GHz

1.4 @ 10 - 18GHz
VSWR - WOW, Max. 0.1
Insertion Loss, Max.

0.3dB @ DC - 10GHz

0.6dB @ 10 - 18GHz
Rotating Speed, Max. 200 rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.05Nm @ room temperature
Torque During Rotation, Max. 0.05Nm @ room temperature
Housing Material Stainless Steel
Housing Surface Finish Passivate
Weight, Approx. 50 g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP40

Model RJ01-503
Interface Type 2.92mm-F (50Ω)
Style I
Frequency Range DC - 40GHz
Peak Power, Max. 500W @ 1GHz
Average Power, Max.

5W @ DC - 10GHz

2W @10 - 18GHz

1W @ 18 - 40GHz
VSWR, Max.

1.4 @ DC - 18GHz

1.7 @18 - 26.5GHz

2.0 @ 26.5 - 40GHz
VSWR - WOW, Max. 0.15
Insertion Loss, Max.

0.5dB @ DC- 18GHz

1.0dB @ 18 - 26.5GHz

1.2dB @ 26.5 - 40GHz
Rotating Speed, Max. 200 rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.05Nm @ room temperature
Torque During Rotation, Max. 0.05Nm @ room temperature
Housing Material Stainless steel
Housing Surface Finish Passivate
Weight, Approx. 30 g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP40

Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss

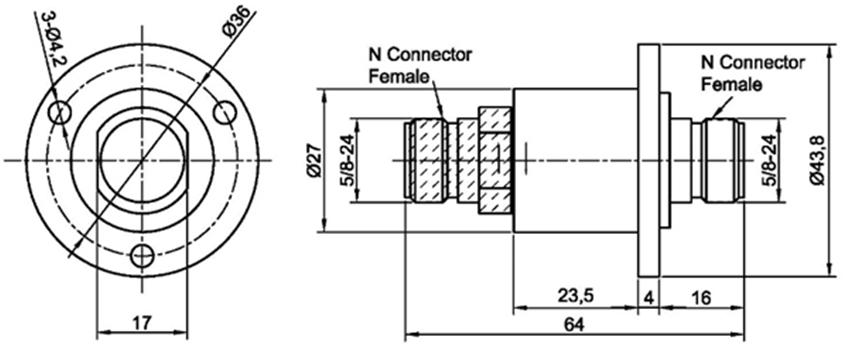

Model RJ01-18-3
Interface Type N-F (50Ω)
Style I
Frequency Range DC - 18GHz
Peak Power, Max. 10KW
Average Power, Max.

100W @ DC - 4.5GHz

50W @4.5 - 8GHz

30W @ 8 - 418GHz
VSWR, Max. 1.3
VSWR - WOW, Max. 0.05
Insertion Loss, Max. 0.4dB
Insertion Loss WOW, Max. 0.05dB
Relative Stability, Max 2deg
Rotating Speed, Max. 30 rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.3Nm @ room temperature
Torque During Rotation, Max. 0.3Nm @ room temperature
Housing Material Copper alloy
Housing Surface Finish Partly silver, nickel, tin plated
Weight, Approx. 150 g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%

• Dual Channel Coax Rotary Joint

Model Number of Channel Channe 1 Channel 2
Frequency Range Interface Frequency Range Interface
RJ02-011 2 DC -18 Ghz 2.92mm-F (50Ω) DC -18 Ghz 2.92mm-F (50Ω)
RJ02-501 2 DC - 4.5 GHz SMA-F (50Ω) DC - 4.5 GHz SMA-F (50Ω)
RJ02-501-8G 2 DC - 8 GHz SMA-F (50Ω) DC - 8 GHz SMA-F (50Ω)
RJ02-501A 2 DC - 4.5 GHz SMA-F (50Ω) DC - 4.5 GHz SMA-F (50Ω)
RJ02-501B 2 DC - 3 GHz SMA-F (50Ω) DC - 14.5 GHz SMA-F (50Ω)

Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss

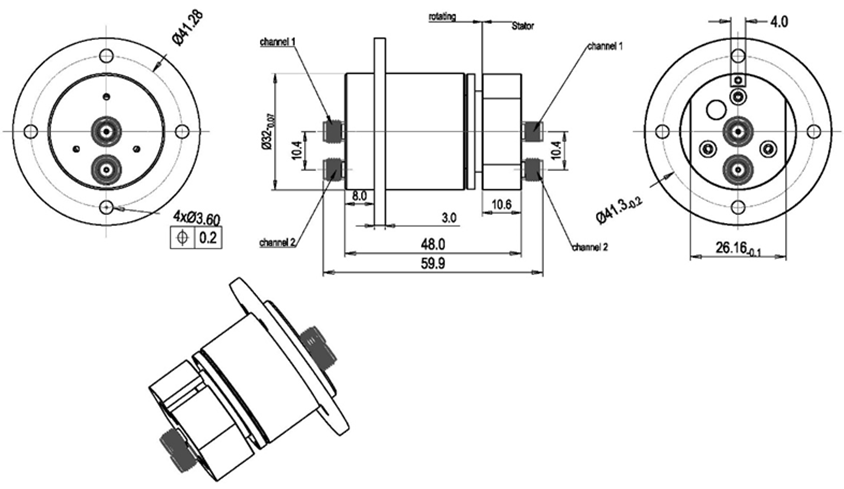

Model RJ02-011
Channel Channel 1 Channel 2
Interface Type 2.92mm-F (50Ω) 2.92mm-F (50Ω)
Style I I
Frequency Range DC - 18GHz DC - 18GHz
Peak Power, Max. 2KW 2KW
Average Power, Max. 50W @ 1GHz 50W @ 1GHz
VSWR, Max.

1.35 @ DC - 8GHz

1.75 @ 8 - 18GHz

2 @ DC - 4GHz

3 @ 4 - 8GHz

3.5 @ 8 - 12GHz

4.5 @ 12 - 18GHz
VSWR - WOW, Max.

0.05

0.1 @ DC - 4GHz

0.35 @ 4 - 8GHz

0.8 @ 8 - 12GHz

2.0 @ 12 - 18GHz
Insertion Loss, Max.

0.4dB @ DC - 8GHz

1.0dB @ 8 - 18GHz

0.75dB @ DC - 4GHz

1.5dB @ 4 - 8GHz

2.5dB @ 8 - 12GHz

3.0dB @ 12 - 18GHz
Insertion Loss WOW, Max.

0.05dB　

0.1dB @ DC - 4GHz

0.3dB @ 4 - 8GHz

0.75dB @ 8 - 12GHz

1.5dB @ 12 - 18GHz
Isolation, Min. 50dB 50dB
Rotating Speed, Max. 50rpm
Life Time, Min. 21 million revolutions
Starting Torque, Max 0.11 Nm @ room temperature
Housing Material aluminium alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 284g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP40

Model RJ02-022
Channel Channel 1 Channel 2
Interface Type SMA-F (50Ω) SMA-F (50Ω)
Style I I
Frequency Range 10.7 - 12.75GHz 13.75 - 14.5GHz
Average Power, Max. 10W 10W
VSWR, Max. 1.45 1.45
VSWR - WOW, Max. 0.1 0.1
Insertion Loss, Max. 1dB 1dB
Insertion Loss WOW, Max. 0.3dB 0.3dB
Isolation, Min. 50dB 50dB
Rotating Speed, Max. 10rpm
Life Time, Min. 15 million revolutions
Starting Torque, Max 0.03 Nm @ room temperature
Housing Material aluminium alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 295g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP40

Model RJ02-501
Channel Channel 1 Channel 2
Interface Type SMA-F (50Ω) SMA-F (50Ω)
Style I I
Frequency Range DC - 4.5GHz DC - 4.5GHz
Peak Power, Max. 1KW 1KW
Average Power, Max.

100W @ DC -2GHz

60W @ 2 -4.5GHz

10W

　
VSWR, Max. 1.2 1.5
VSWR - WOW, Max. 0.05 0.2
Insertion Loss, Max. 0.25dB 0.50dB
Insertion Loss WOW, Max. 0.05dB 0.15dB
Isolation, Min. 50dB 50dB
Phase WOW, Max. 1deg 4deg
Rotating Speed, Max. 30rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.05 Nm @ room temperature
Torque during rotation, Max 0.05 Nm @ room temperature
Housing Material aluminium alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 130g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP60

Model RJ02-501-8G
Channel Channel 1 Channel 2
Interface Type SMA-F (50Ω) SMA-F (50Ω)
Style I I
Frequency Range DC - 8GHz DC - 8GHz
Peak Power, Max. 1KW 1KW
Average Power, Max.

100W @ DC -2GHz

35W @ 2 -8GHz

10W

　
VSWR, Max. 1.3 1.6
VSWR - WOW, Max. 0.1 0.2
Insertion Loss, Max. 0.4dB 0.8dB
Insertion Loss WOW, Max. 0.1dB 0.3dB
Isolation, Min. 50dB 50dB
Phase WOW, Max. 1deg 4deg
Rotating Speed, Max. 30rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.05 Nm @ room temperature
Torque during rotation, Max 0.05 Nm @ room temperature
Housing Material aluminium alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 130g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%

Model RJ02-501A
Channel Channel 1 Channel 2
Interface Type SMA-F (50Ω) SMA-F (50Ω)
Style I I
Frequency Range DC - 4.5GHz DC - 4.5GHz
Peak Power, Max. 1KW 1KW
Average Power, Max.

100W @ DC -2GHz

60W @ 2 -4.5GHz

10W

　
VSWR, Max. 1.2 1.5
VSWR - WOW, Max. 0.05 0.2
Insertion Loss, Max. 0.25dB 0.40dB
Insertion Loss WOW, Max. 0.05dB 0.15dB
Isolation, Min. 50dB 50dB
Phase WOW, Max. 1deg 4deg
Rotating Speed, Max. 30rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.05 Nm @ room temperature
Torque during rotation, Max 0.05 Nm @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 130g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP60

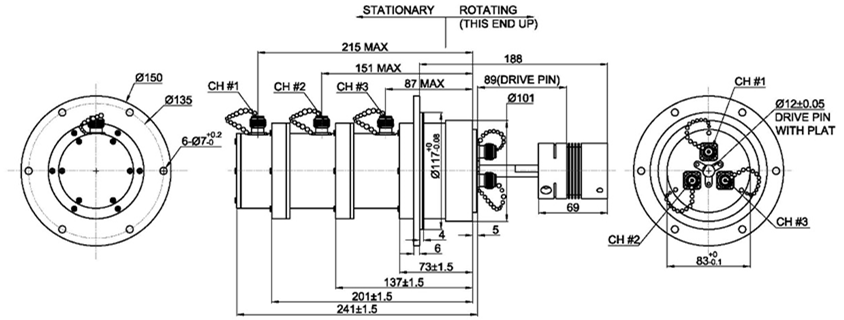

• 3 Channel Coax Rotary Joint

Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss

Model RJ03-012
Channel Channel 1 Channel 2 Channel 3
Interface Type N-F (50Ω) N-F (50Ω) N-F (50Ω)
Style L L L
Frequency Range 1.01 - 1.1 GHz 1.01 - 1.1 GHz 1.2 - 1.4 GHz
Peak Power, Max. 5 KW 5 KW 100W
Average Power, Max. 100 W 100 W 10 W
VSWR, Max. 1.3 1.3 1.3
VSWR - WOW, Max. 0.1 0.1 0.1
Insertion Loss, Max. 0.8 dB 0.8 dB 0.8 dB
Isolation, Min. 60 dB 60 dB 60 dB
Phase WOW, Max. 2 deg 2 deg 2 deg
Rotating Speed, Max. 24 rpm
Life Time, Min. 100 million revolutions
Starting Torque, Max 2.7 Nm @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 4.1 kg
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 100%
Protection Level IP65

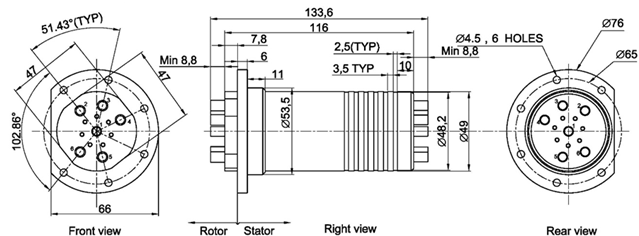

• 6 Channel Coax Rotary Joint

Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion LossStable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss

Model RJ03-012
Channel Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6
Interface Type SMA-F SMA-F SMA-F SMA-F SMA-F SMA-F
Style I I I I I I
Frequency Range(GHz) DC – 3.5 DC – 1.1 DC – 1.1 DC – 1.1 DC – 2.9 DC – 0.55
Peak Power, Max. 100W 100W 100W 100W 100W 100W
Average Power, Max. 10 W 10 W 10 W 10 W 10 W 10 W
VSWR, Max. 1.29 1.3 1.3 1.3 1.75 1.25
VSWR - WOW, Max. 0.1 0.1 0.1 0.1 0.1 0.1
Insertion Loss, Max. 1.8 dB 0.75 dB 0.75 dB 0.75 dB 1.8 dB 0.8 dB
Isolation, Min. 50 dB 60 dB 60 dB 60 dB 50 dB 50 dB
Phase WOW, Max. 2 deg 2 deg 2 deg 2 deg 2 deg 2 deg
Rotating Speed, Max. 60 rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.5 Nm @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 0.5 kg
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP65

• Medium Frequency Rotary Joint

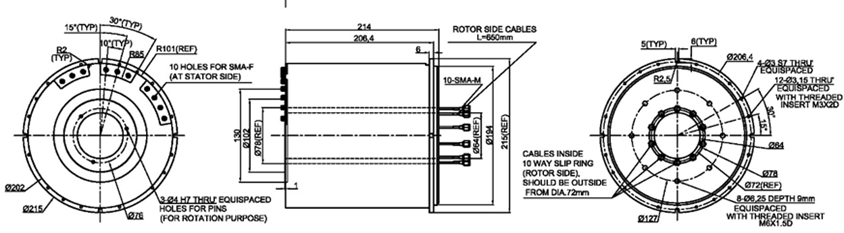

Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion LossStable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss

Model RJ01-18-3
Interface Type SMA-F (50Ω)
Through bore 64mm
Channel 10
Frequency Range DC – 80MHz
Peak Power, Max. 100W
Average Power, Max. 2W
VSWR, Max. 1.5
VSWR - WOW, Max. 0.15
Insertion Loss, Max. 0.75dB
Insertion Loss WOW, Max. 0.15dB
Relative Stability, Max 2deg
Rotating Speed, Max. 30 rpm
Life Time, Min. 5 million revolutions
Torque, Max 0.6Nm @ room temperature
Housing Material Aluminum
Weight, Approx. 2 Kg
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Send your message to this supplier
Send Now

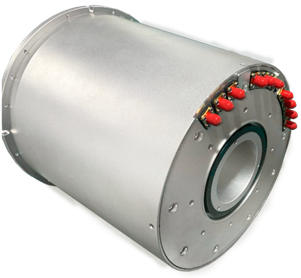

Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss

Ask Latest Price
Product Detail
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
MOQ :
1
Payment Terms :
T/T
Contact Supplier
Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss
Stable Coaxial Rotary Joint Single Channel Radar Rotary Joint Low Insertion Loss

Shenzhen Panlink Electronic Technology Co.,Ltd.

Verified Supplier
3 Years
shenzhen
Since 2006
Business Type :
Manufacturer
Main Products :
Military Slip Ring, RF Rotary Joint, Capsule Slip Ring
Total Annual :
20 Million-1000 Million
Employee Number :
100~200
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products RF Rotary Joint
MachineU China Products
Contact Supplier
Submit Requirement
