Specifications
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4 Weeks
Price :
Negotiable
Supply Ability :
40 Million a Year
RF Rotary Joints :
Coaxial rotary joints , Waveguide rotary joints, Hybrid RF rotary joints
Housing Material :
aluminum alloy
Protection Level :
IP65
Description

RF Rotary Joint

RF rotary joints are electromechanical devices designed to transmit RF signals between a fixed platform and a rotating platform. They are essential components in various high-performance systems, including high-definition camera systems, defense radar systems, and satellite communications (SATCOM).

Panlink RF rotary joints are engineered with a compact design, ensuring low insertion loss, excellent voltage standing wave ratio (VSWR), minimal fluctuation of electrical characteristics, and high crosstalk attenuation across all channels and frequencies.

Our product range includes a variety of RF rotary joints to meet diverse application needs:

• Coaxial rotary joints
• Waveguide rotary joints
• Hybrid RF rotary joints
Waveguide Rotary Joint

• Single Channel Waveguide Rotary Joint

Broadband Waveguide Rotary Joint for Medical Imaging Equipment, Radar and Satellite Communication with Long Lifetime

Model RW01-501
Interface Type WR187
Style L
Frequency Range 5.4 – 5.9 GHz
Peak Power, Max. 250 KW
Average Power, Max. 1000 W
VSWR, Max. 1.25
VSWR - WOW, Max. 0.1
Insertion Loss, Max. 0.3 dB
Insertion Loss WOW, Max. 0.05 dB
Rotating Speed, Max. 60 rpm
Life Time, Min. 50 million revolutions
Starting Torque, Max 0.3 Nm @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 1.5 Kg
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Leakage max 10 cm3//min
Protection Level IP65

Broadband Waveguide Rotary Joint for Medical Imaging Equipment, Radar and Satellite Communication with Long Lifetime

Model RW01-502
Interface Type WR187
Style U
Frequency Range 5.4 – 5.9 GHz
Peak Power, Max. 350 KW
Average Power, Max. 1400 W
VSWR, Max. 1.25
VSWR - WOW, Max. 0.1
Insertion Loss, Max. 0.3 dB
Insertion Loss WOW, Max. 0.05 dB
Rotating Speed, Max. 60 rpm
Life Time, Min. 50 million revolutions
Starting Torque, Max 0.3 Nm @ room temperature
Housing Material aluminium alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 1.5 Kg
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Leakage max 10 cm3//min
Protection Level IP65

Broadband Waveguide Rotary Joint for Medical Imaging Equipment, Radar and Satellite Communication with Long Lifetime

Model RW01-503
Interface Type R140
Style I
Frequency Range 14 – 14.5 GHz
Peak Power, Max. 10 KW
Average Power, Max. 10 W
VSWR, Max. 1.2
VSWR - WOW, Max. 0.1
Insertion Loss, Max. 0.2 dB
Insertion Loss WOW, Max. 0.05 dB
Rotating Speed, Max. 120 rpm
Life Time, Min. 50 million revolutions
Starting Torque, Max 0.1 Nm @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 0.4 Kg
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Leakage max 10 cm3//min
Protection Level IP65

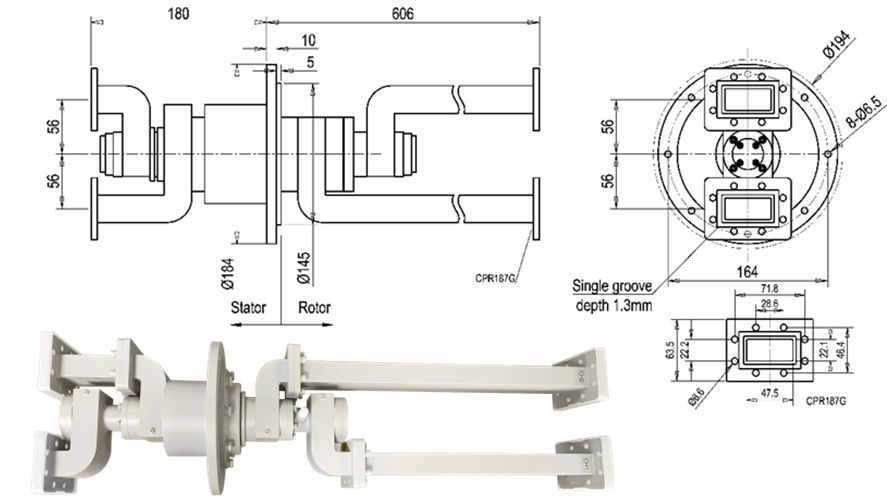

• Dual Channel Waveguide Rotary Joint

Broadband Waveguide Rotary Joint for Medical Imaging Equipment, Radar and Satellite Communication with Long Lifetime

Model RW02-501A
Channel Channel 1 Channel 2
Interface Type WR187 WR187
Style I I
Frequency Range 5.4 – 5.9GHz 5.4 – 5.9GHz
Peak Power, Max. 350KW 350KW
Average Power, Max. 1400W 1400W
VSWR, Max. 1.2 1.2
VSWR - WOW, Max. 0.05 0.05
Insertion Loss, Max. 0.3dB 0.3dB
Insertion Loss WOW, Max. 0.05dB 0.05dB
Isolation, Min. 50dB 50dB
Phase WOW, Max. 1deg 1deg
Rotating Speed, Max. 60rpm
Life Time, Min. 50 million revolutions
Starting Torque, Max 0.3 Nm @ room temperature
Torque during rotation, Max 0.3 Nm @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 1.5Kg
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP65

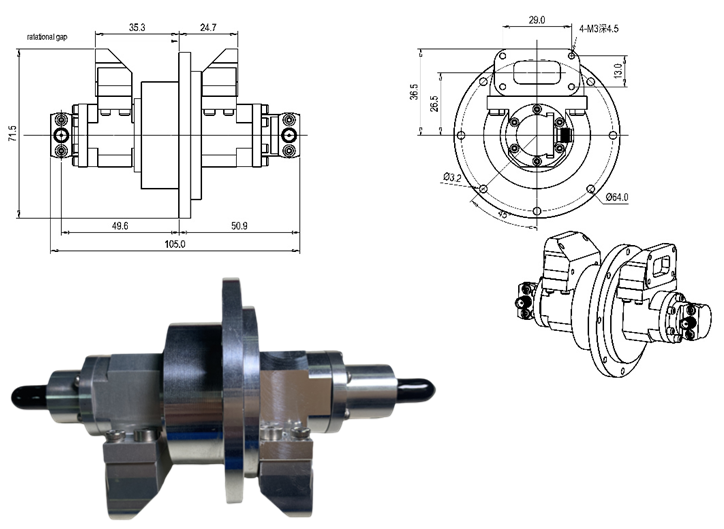

• 1 Channel Coax+1 Channel Waveguide Rotary Joint

Broadband Waveguide Rotary Joint for Medical Imaging Equipment, Radar and Satellite Communication with Long Lifetime

Model HH02-501
Channel Channel 1 Channel 2
Interface Type R120 SMA-F (50Ω)
Style I U
Frequency Range 14.0 - 14.5 GHz DC - 2.05 GHz
Peak Power, Max. 10 KW 100W
Average Power, Max. 100 W 10W
VSWR, Max. 1.2 1.2
VSWR - WOW, Max. 0.1 0.05
Insertion Loss, Max. 0.2 dB 0.4 dB
Insertion Loss WOW, Max. 0.05 dB 0.1 dB
Isolation, Min. 60 dB 60 dB
Rotating Speed, Max. 60rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.2 Nm @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 320 g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP64

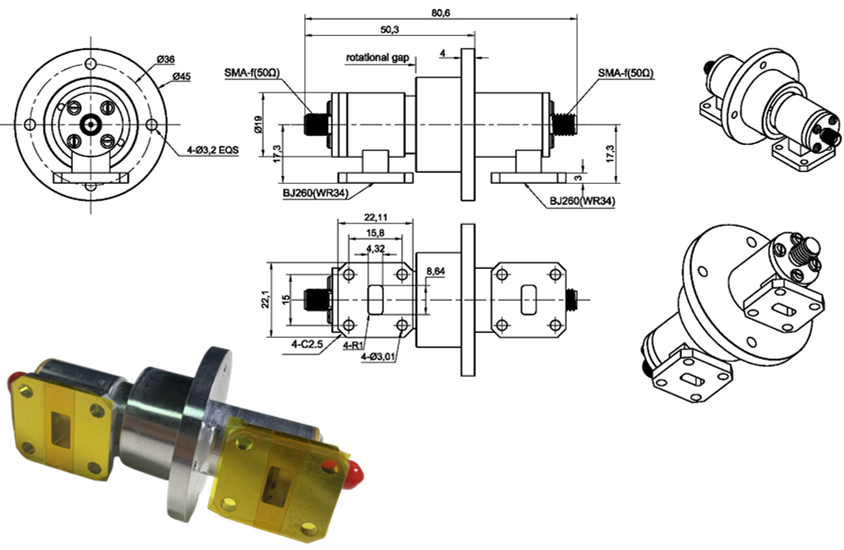

Broadband Waveguide Rotary Joint for Medical Imaging Equipment, Radar and Satellite Communication with Long Lifetime

Model HH02-502
Channel Channel 1 Channel 2
Interface Type WR34 SMA-F (50Ω)
Style U I
Frequency Range 26.11 – 26.74GHz DC - 2.05 GHz
Peak Power, Max. 10 KW 500W
Average Power, Max. 200 W 40W
VSWR, Max. 1.35 1.4
VSWR - WOW, Max. 0.1 0.1
Insertion Loss, Max. 0.4 dB 0.5 dB
Insertion Loss WOW, Max. 0.1 dB 0.1 dB
Isolation, Min. 60 dB 60 dB
Rotating Speed, Max. 120rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.2 Nm @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 320 g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP40

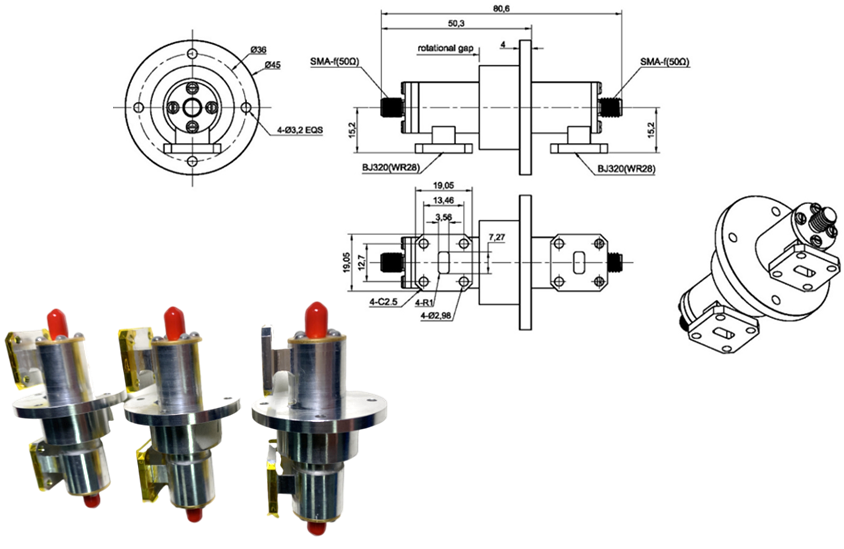

Broadband Waveguide Rotary Joint for Medical Imaging Equipment, Radar and Satellite Communication with Long Lifetime

Model HH02-503
Channel Channel 1 Channel 2
Interface Type WR28 SMA-F (50Ω)
Style U I
Frequency Range 26.11 – 26.74GHz DC - 2.05 GHz
Peak Power, Max. 10 KW 500W
Average Power, Max. 200 W 40W
VSWR, Max. 1.35 1.4
VSWR - WOW, Max. 0.1 0.1
Insertion Loss, Max. 0.4 dB 0.5 dB
Insertion Loss WOW, Max. 0.1 dB 0.1 dB
Isolation, Min. 60 dB 60 dB
Rotating Speed, Max. 120rpm
Life Time, Min. 5 million revolutions
Starting Torque, Max 0.2 Nm @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 320 g
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP40

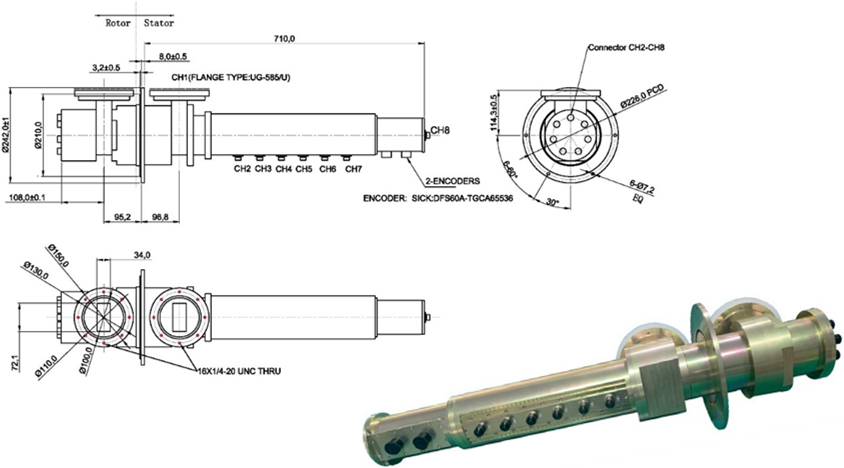

• 1 Channel Waveguide + Multi Coax Rotary Joint

Broadband Waveguide Rotary Joint for Medical Imaging Equipment, Radar and Satellite Communication with Long Lifetime

Model RJ08-012
Channel Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8
Interface Type UG-585/U N-f N-f N-f N-f N-f N-f N-f
Style U L L L L L L I
Frequency Range(GHz) 2.7-2.9 2.7-2.9 2.7-2.9 2.7-2.9 1 – 1.1G 1 – 1.1G 1 – 1.1G 2.7-2.9
Peak Power, Max. 1MW 2KW 10KW 10KW 10KW 10KW 10KW 10KW
Average Power, Max. 4.5K W 6 W 30 W 30 W 300 W 50 W 50 W 30 W
VSWR, Max. 1.2 1.5 1.5 1.5 1.25 1.25 1.25 1.5
VSWR - WOW, Max. 0.05 0.05 0.05 0.05 0.08 0.08 0.08 0.05
Insertion Loss, Max. 0.2 dB 1.3 dB 1.3 dB 1.25 dB 0.75dB 0.75dB 0.75dB 1.25 dB
Isolation, Min. 50 dB 50 dB 50 dB 50 dB 50 dB 50 dB 50 dB 50 dB
Phase WOW, Max. 2 .5deg 2 .5deg 2 .5deg 2 .5deg 2 .5deg 2 .5deg 2 .5deg 2 .5deg
Rotating Speed, Max. 60 rpm
Life Time, Min. 5 million revolutions or 50 millions for contactless type
Starting Torque, Max 2N.m @ room temperature
Housing Material aluminum alloy
Housing Surface Finish chromate conversion coat
Weight, Approx. 30 kg
Operating Temperature Range -40 °C ~ +70 °C
Storage Temperature Range -55 °C ~ +85 °C
Relative Humidity, Max. 95%
Protection Level IP65
