Hybrid RF Rotary Joint Multiple Signal Transmission For Radar Systems / Wind Turbines
Hybrid RF Rotary Joint Multiple Signal Transmission For Radar Systems / Wind Turbines
Specifications
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
MOQ :
1
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Price :
Negotiable
Name :
RF Rotary Joint
Hybrid Slip Ring :
Slip Ring+ RF Joint + Waveguide Joint+ FORJ
Current :
up to 200A
Interfacess :
RS422/485/232 interfaces
Signals :
HD-SDI, G-bit Ethernet, FORJ, 1553B signals
Description

Hybrid RF Rotary Joint With Multiple Signal Transmission Capabilities For Radar Systems, Wind Turbines, And Aerospace Applications

RF Rotary Joint

RF rotary joints are electromechanical devices designed to transmit RF signals between a fixed platform and a rotating platform. They are essential components in various high-performance systems, including high-definition camera systems, defense radar systems, and satellite communications (SATCOM).

Panlink RF rotary joints are engineered with a compact design, ensuring low insertion loss, excellent voltage standing wave ratio (VSWR), minimal fluctuation of electrical characteristics, and high crosstalk attenuation across all channels and frequencies.

Our product range includes a variety of RF rotary joints to meet diverse application needs:

• Coaxial rotary joints
• Waveguide rotary joints
• Hybrid RF rotary joints

Hybrid (Slip Ring+ RF Joint + Waveguide Joint+ FORJ)

Key Feature
• Power up to 200A • RS422/485/232 interfaces
• Up to 200 channels • Up to 10 medium frequency channels at 300MHz
• HD SDI video signals • RF Joint supports up to 8 channels at 18G
• G-bit Ethernet • Waveguide rotary joint combination
• 1553B signals • FORJ (Fiber Optic Rotary Joint)
• Encoder combination • 2-4 media channels at 35Mpa for cooling

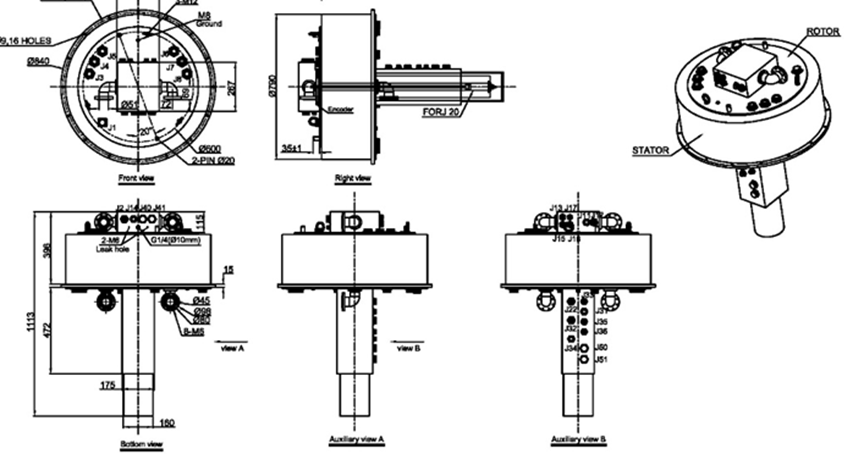

Example1

Hybrid RF Rotary Joint Multiple Signal Transmission For Radar Systems / Wind Turbines

Example 2

Hybrid RF Rotary Joint Multiple Signal Transmission For Radar Systems / Wind Turbines

Example 3

Hybrid RF Rotary Joint Multiple Signal Transmission For Radar Systems / Wind Turbines
