Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor
Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor
Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor
Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor
Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor
Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor
Specifications
Brand Name :
D.K.HISTRON
Model Number :
HC-220T/3200
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
depnds on model
Payment Terms :
T/T
Supply Ability :
20sets/month
Delivery Time :
60 days
Packaging Details :
Suitable for long distance transport
Productname :
Digital Bending Machine
Machineweight :
2500 kg
Safetyfeatures :
Emergency Stop Button, Safety Guards
Materialcompatibility :
Steel, Aluminum, Copper
Operatingtemperaturerange :
0°C to 40°C
Backgaugepositioningaccuracy :
±0.01 mm
Bendinganglerange :
0° to 180°
Controlsystem :
Digital CNC Control
Type :
Bending Machine
Motortype :
Servo Motor
Powersupply :
380V, 50Hz
Maximumbendinglength :
3000 mm
Description
Standard Industrial 100T 3200 CNC Hydraulic Fully Automatic Metal Bending Machine for Bending Iron
Product Overview

Sheet metal hydraulic bending machine, CNC press brake machine

  • Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating to eliminate stress, high strength and good rigidity
  • Mechanical torque system ensures synchronization of cylinders
  • The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and displayed on CNC Mechanical torque or NC control panel

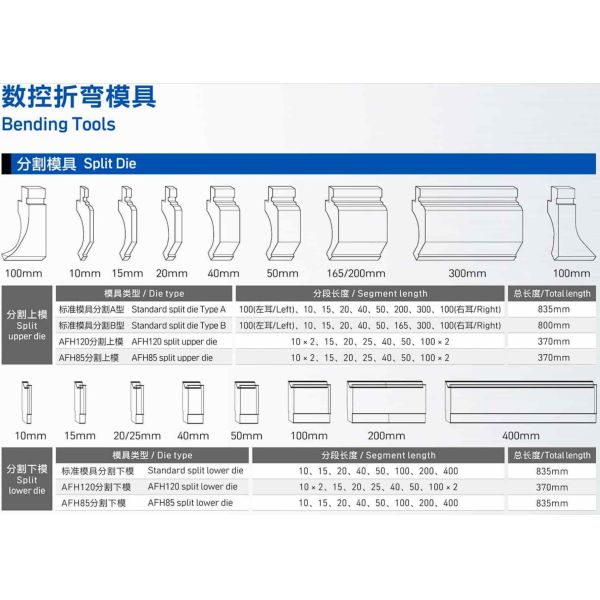

  • Slanting wedges can be chosen to install on the top dies which can be adjusted manually or automatically
  • Hydraulic compensation system is installed under the worktable
Mechanical Structure

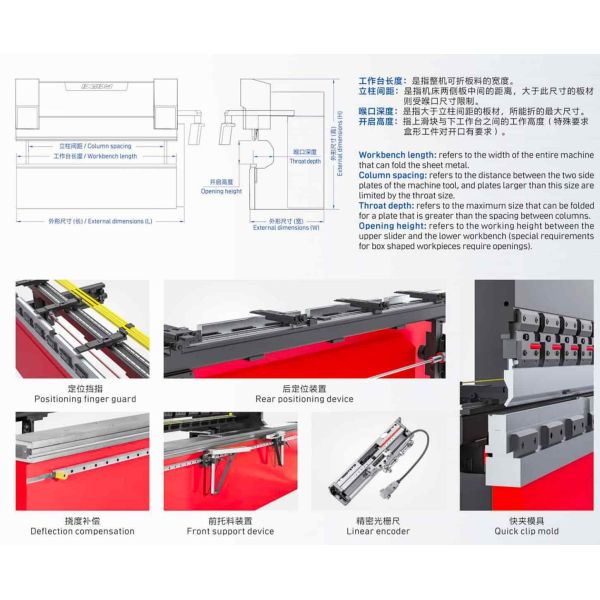

The bending machine consists of a frame, columns, slide block, worktable, main cylinder, and back gauge. These components are meticulously optimized through finite element analysis and advanced TD software to ensure superior strength and rigidity. The structural elements are carefully designed for robustness and stability, significantly improving the machine's efficiency and durability.

Motor System

The energy-saving servo motor can reduce energy consumption by up to 40% while increasing stroke efficiency by 7-20%. Low-noise operation at 60 dB ensures minimal noise interference, creating a comfortable working environment.

Oil Pump

Constructed from high-strength cast iron, our oil pump features internal noise reduction for quieter operation. It prevents oil contamination, significantly extending service life and ensuring reliable performance.

Technical Parameterts
Parameter Specification
Model HC-110T/3200
Normal Force 1100KN
Worktable Length 3200mm
Worktable Width 90mm
Distance Between Columns 2700mm
Hose Depth 350mm
Slider Stroke 200mm
Maximum Opening Height 450mm
Wall Panel Column Thickness 50mm
Slider Thickness 60mm
Worktable Upright Plate Thickness 80mm
Main Motor Power - Oil Pump Motor 11KW - Oil Pump 25ml/r
Slider Rapid Descent Speed 180mm/s
Slider Return Speed 150mm/s
Slider Working Speed 10mm/s
CNC System DA53T
Number of Controlled Axes 4 +1 Axes
Back Gauge X-axis Stroke 600mm
Back Gauge X-axis Speed 200mm/s
External Dimensions 3600*1700*2800mm
Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor

Industrial CNC Hydraulic Digital Bending Machine 3200mm 100T with Servo Motor

Frequently Asked Questions
How long is your production lead time?
It depends on the type of equipment. We often deliver the goods within 60 days.
What are your terms of packing?
Export-worthy package suitable for container transportation. Wooden case, iron pallet, plastic film, etc.
Do you test all your goods before delivery?
Yes, we have 100% testing before delivery.
Where is your factory located?
Our factory is located in Qingdao, Shandong province.
Can you arrange third party pre-shipment inspection?
Pre-shipment inspection: Supplier's pre-shipment inspection is final; pre-shipment inspection by third party on buyer's cost.
