High Speed Automatic Digital Bending Machine for Sheet Metal Panel
High Speed Automatic Digital Bending Machine for Sheet Metal Panel
High Speed Automatic Digital Bending Machine for Sheet Metal Panel
High Speed Automatic Digital Bending Machine for Sheet Metal Panel
High Speed Automatic Digital Bending Machine for Sheet Metal Panel
High Speed Automatic Digital Bending Machine for Sheet Metal Panel
Specifications
Brand Name :
D.K.HISTRON
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T
Delivery Time :
60 days
Packaging Details :
Suitable for long distance transport
Model Number :
HC-220T/3200
Price :
depnds on model
Supply Ability :
20sets/month
Product name :
Hydrauloic bending machine
Voltage :
380V,220V/380V,380V/50Hz,220V/1P/50HZ,110 - 480 v
Condition :
New
Weight :
1200 kg,6000 kg,4500 kg,70 kg,750 kg
Warranty :
1 Year
Type :
Feed Pellet Machine,Mixer,Horizontal single shaft dual screw,Feeding machine,Chaff Cutter
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support,Field maintenance and repair service
Application :
Sheet bending and folding
Power(w) :
750,7.5kw/3kw,110 - 280 kw,35,22-160kw
Color :
Clients' Requirement,Customer's Request,Silver Stainless Steel,Selected,Light Green
Raw material :
Carbon steel , Stainless steel, Alloy steel, Aluminum sheet
Advantage :
High Capacity,Low Consumption
Description
CNC Digital Press Brake Metal Beading Machine

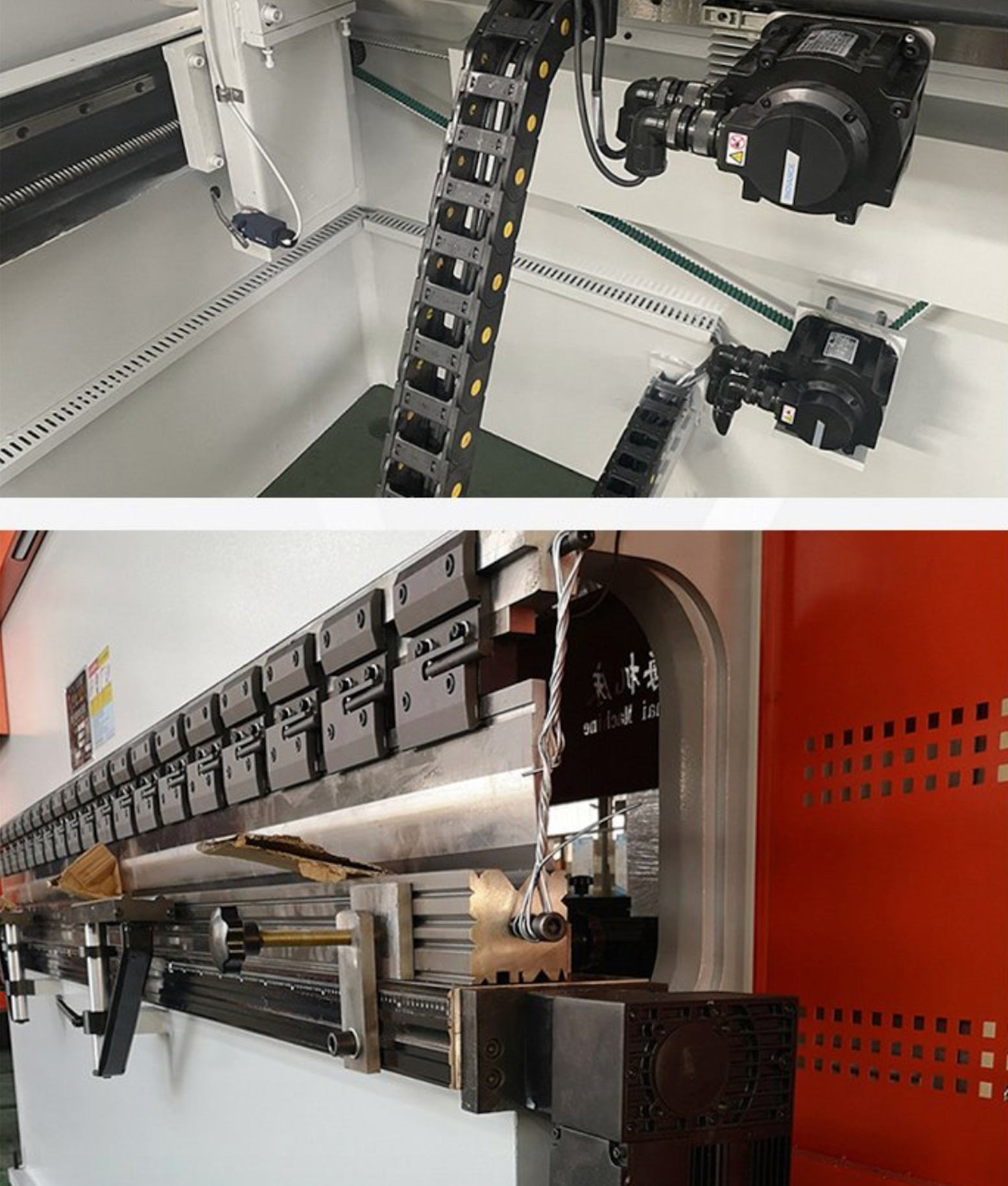

Advanced hydraulic press brake CNC bending machine with precision backgauge, featuring servo motors, comprehensive safety protection, fast clamping systems, ball screws, and linear guides. All critical components sourced from leading German, USA, Dutch, and Italian manufacturers. Customizable bend thickness and length configurations available.
Technical Parameters:

Model

HC-220T/3200

Normal force

2200KN

Worktable length

3200mm

Worktable width

100mm

Distance between columns

2700mm

Hose depth

400mm

Slider stroke

200mm

Maximum opening height

495mm

Wall panel column thickness

70mm

Slider thickness

80mm

Worktable upright plate thickness

100mm

Main motor power - oil pump

Motor 15KW-Oil pump 32ml/r

Slider rapid descent speed

180mm/s

Slider return speed

150mm/s

Slider working speed

10mm/s

CNC system

DA53T

Number of controlled axes

4 +1 axes

Back gauge X-axis stroke

600mm

Back gauge X-axis speed

200mm/s

External dimensions

4500×2200×3200mm
Mechanical Structure
The bending machine features a robust construction comprising frame, columns, slide block, worktable, main cylinder, and back gauge. All structural components undergo meticulous optimization through finite element analysis and advanced TD software to ensure superior strength and rigidity. The carefully engineered design provides exceptional robustness and stability, significantly enhancing machine efficiency and long-term durability.

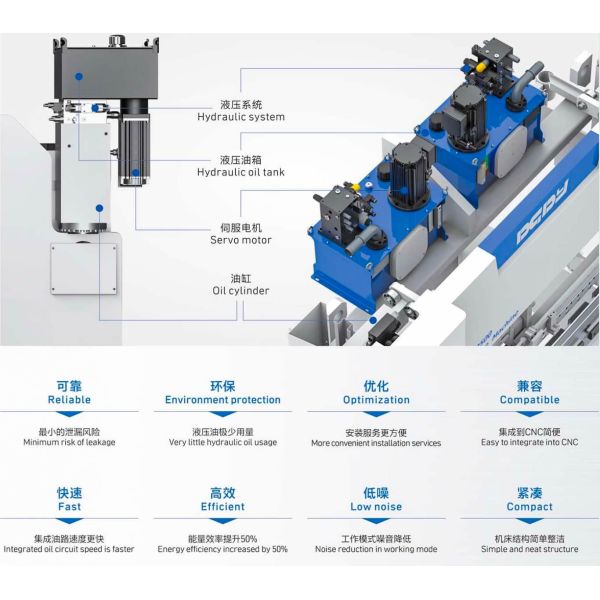

Motor System
Equipped with energy-saving servo motors that reduce energy consumption by up to 40% while increasing stroke efficiency by 7-20%. Operating at low noise levels of 60 dB ensures minimal noise interference, creating a comfortable and productive working environment.
Oil Pump Technology
Constructed from high-strength cast iron, our advanced oil pump system incorporates internal noise reduction technology for exceptionally quiet operation. The design prevents oil contamination, significantly extending service life while ensuring reliable, consistent performance under demanding industrial conditions.
End Forming Service: Comprehensive sheet metal and plastic processing capabilities with professional end forming services.
High Speed Automatic Digital Bending Machine for Sheet Metal Panel

High Speed Automatic Digital Bending Machine for Sheet Metal Panel

High Speed Automatic Digital Bending Machine for Sheet Metal Panel

High Speed Automatic Digital Bending Machine for Sheet Metal Panel

High Speed Automatic Digital Bending Machine for Sheet Metal Panel

Frequently Asked Questions
How long is your production lead time?
Delivery time depends on equipment type. We typically deliver goods within 60 days.
What are your packing terms?
Export-worthy packaging suitable for container transportation, including wooden cases, iron pallets, plastic film, and other protective materials.
Do you test all goods before delivery?
Yes, we conduct 100% testing on all equipment before delivery to ensure quality and performance standards.
Where is your factory located?
Our manufacturing facility is located in Qingdao, Shandong province, China.
Can you arrange third-party pre-shipment inspection?
Supplier's pre-shipment inspection is final. Third-party inspections can be arranged at buyer's cost.
