This advanced CNC digital press brake metal bending machine incorporates our latest technological innovations. The system comprises a robust frame, precision slide, worktable, hydraulic cylinders, electro-hydraulic proportional servo control system, external detection system, back gauge, mold, hydraulic system, CNC control system, and electrical components.

Constructed from high-quality steel plate welded structure, the machine delivers exceptional strength and rigidity. The internationally advanced electro-hydraulic proportional synchronous control system, combined with magnetic scales on the C-frame and CNC system, forms a closed-loop servo control system that precisely manages slide speed and position.

• High parallelism and repeatability with strong resistance to eccentric loads
• Convenient system maintenance and high-precision part processing
• Hydraulic drive with CNC system control for multiple operation modes
• Flexible axis configurations supporting up to 12 controlled axes
• Rapid descent, slow feed, bending with pressure holding, and quick return capabilities

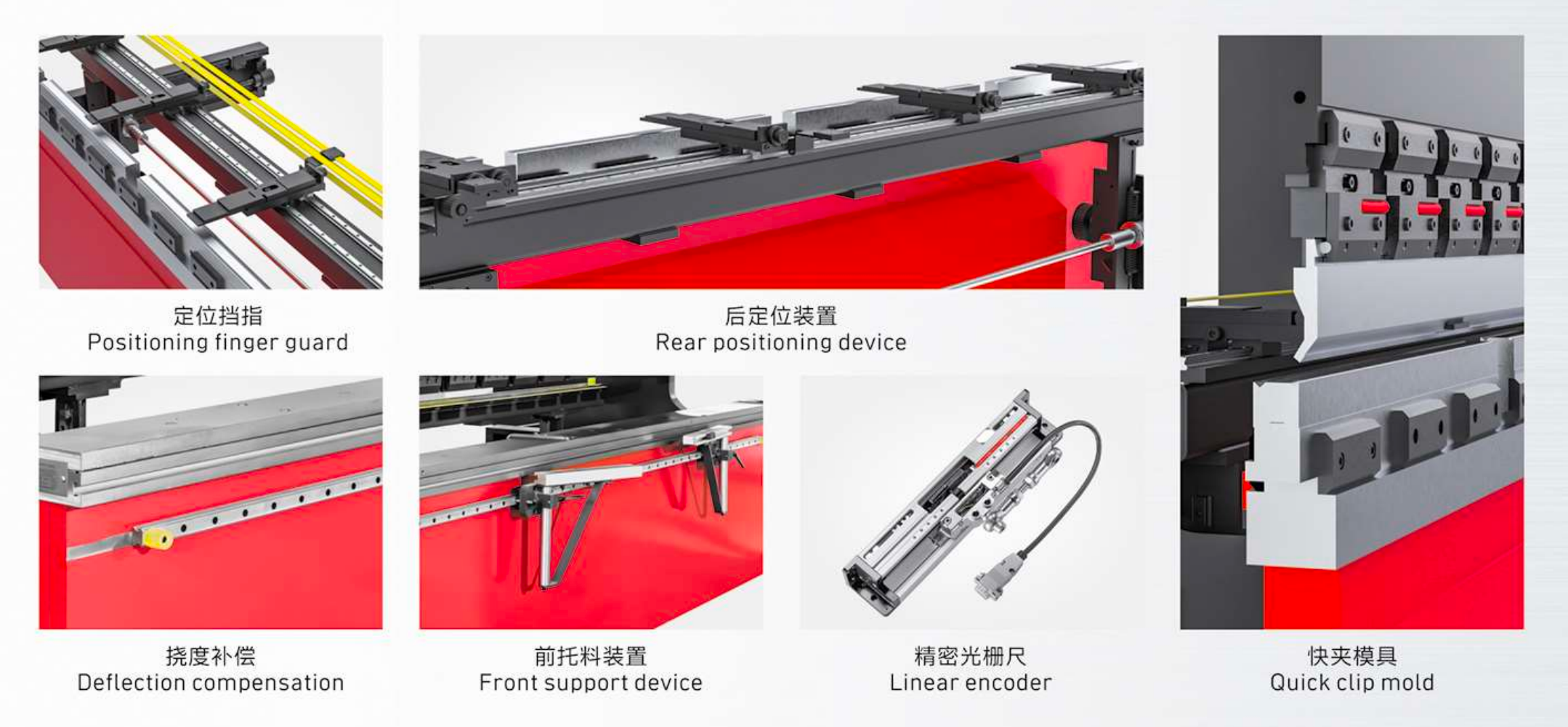

The bending machine features an optimized robust construction including frame, columns, slide block, worktable, main cylinder, and back gauge. All structural components undergo meticulous optimization through finite element analysis and advanced TD software to ensure superior strength, rigidity, and long-term durability.

Equipped with energy-saving servo motors that reduce energy consumption by up to 40% while increasing stroke efficiency by 7-20%. Operating at low noise levels of 60 dB ensures minimal noise interference, creating a comfortable and productive working environment.

Constructed from high-strength cast iron, our advanced oil pump system incorporates internal noise reduction technology for exceptionally quiet operation. The design prevents oil contamination, significantly extending service life while ensuring reliable, consistent performance under demanding industrial conditions.
