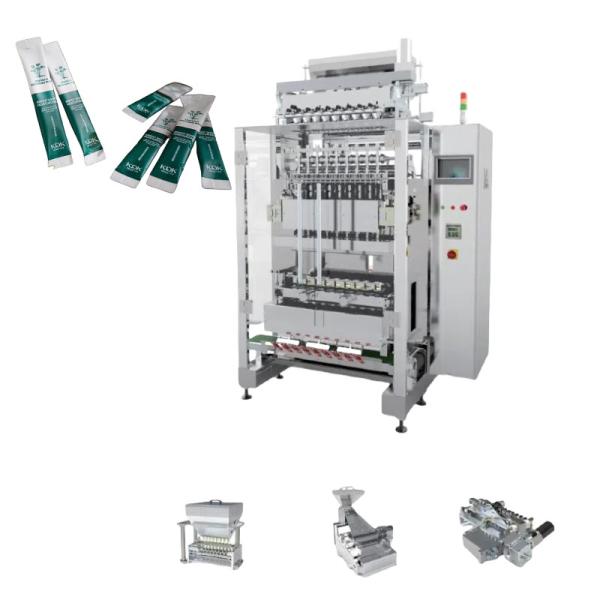

380V Multi Lane Packing Machine Food Beverage Stainless Steel 2-10 Lanes
380V Multi Lane Packing Machine Food Beverage Stainless Steel 2-10 Lanes
380V Multi Lane Packing Machine Food Beverage Stainless Steel 2-10 Lanes
380V Multi Lane Packing Machine Food Beverage Stainless Steel 2-10 Lanes
Specifications
Brand Name :
CS
Model Number :
CS
Certification :
CE
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Price negotiable
Payment Terms :
T/T
Supply Ability :
100 units per month
Delivery Time :
Delivery date negotiable
Packaging Details :
Export wooden box packaging
function :
FILLING, Wrapping, Sealing
packaging type :
Bags, Pouch
packaging material :
Plastic
Voltage :
380V
function FILLING, Wrapping, Sealing packaging type Bags, Pouch packaging material Plastic Voltage 38 :
PASTE, liquid
Weight (KG) :
1500
application :
Food, Beverage
automatic grade :
Automatic
warranty :
1 Year
after-sales service provided :
Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service, Free spare parts
Machine Material :
Stainless steel
Power Consumption :
5-8KW
Customized Support :
OEM，ODM
Air Pressure :
0.6MPa
Packing Material :
Plastic film, paper, aluminum foil, etc.
Application :
Food, pharmaceutical, chemical, hardware, etc.
Packing Type :
Pillow bag, gusset bag, stand-up bag, etc.
Bag Size :
Length: 50-300mm, Width: 50-200mm
Weight :
1000-2000kg
Packing Speed :
Up to 200 packs per minute
Number Of Lanes :
2-10 lanes
Air Consumption :
0.4m3/min
Dimension :
3000*1200*1800mm
Power Supply :
220V/380V, 50/60Hz, 3 phase
Description

Multi Lane Packing Machine For Fast And Accurate Dispensing Of Liguid And Semi-Fluid Products In Different Industries

The bagging function of the multi-column liquid packaging machine is mainly aimed at flexible packaging materials (such as plastic film, aluminum foil composite bags, etc.), and the high-speed filling and sealing of liquid products are realized through customized modules.
High-precision filling technology
Metering method:
Volumetric piston pump: suitable for small-dose (10-500ml) filling, accuracy ±1%, such as oral liquid, sauce;
Flow meter + control valve: medium and high viscosity liquid (such as sauce, shampoo), the filling volume is controlled by pulse signal.
Anti-drip design:
The filling head is equipped with a pneumatic stop valve or a back suction device to prevent liquid residue from contaminating the bag.
3 Multi-column synchronous sealing
Heat sealing technology:
High-frequency heat sealing or ultrasonic welding is used to achieve smooth sealing of the bag mouth for materials such as PE, CPP, and aluminum foil.
Sealing type:
Three-side seal / four-side seal: suitable for ordinary bags;
Stand-up bag forming: integrated bottom folding and heat sealing functions, supporting automatic forming of stand-up bags;
Zipper bag: add zipper installation module to ensure that the zipper fits firmly with the bag body.

Main Features

1. lt has SS 304 stainless steel, a strong and long-lasting material.

2. lt usually has an emergency stop, capacity count, and output pack ready.
3. Brand electrical components, more reliable and durable.
4. Automatic slitting film system, the incision is smooth and flat.
Lane number
4/6/8/10/12 Lanes
Measuring range
1-50ml (depend on bag size and packaging material)
Packing speed
30-50 cuts/min
Bag length
Max. 170mm (customized)
Bag width
16-84mm / 16-54mm / 16-40mm / 16-32mm / 16-26mm
Bag type
3/4 side seal bag, back seal bag, irregular shape stick bag
Voltage
380V, 50Hz, 3 Phase
Power
4.5-6.2KW
Air consumption
7L/min
Machine size
Non-standard customization
Machine weight
About 1500kg
