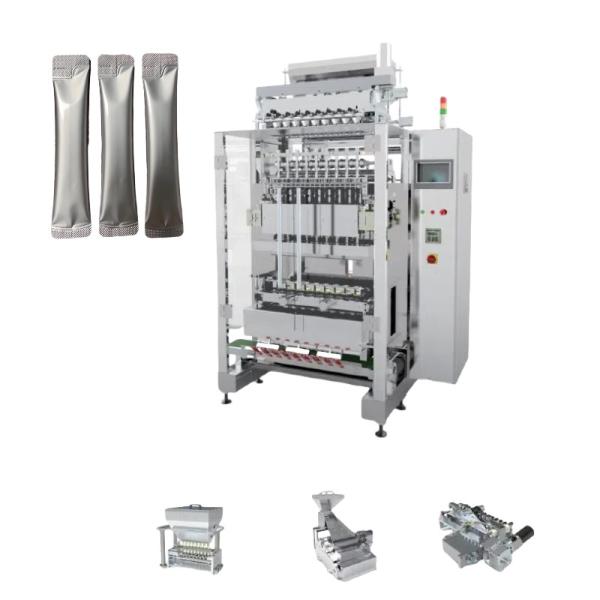

Pharmaceutical Multi Lane Stick Pack Machine 2-10 Lanes Chemical Multi Column
Pharmaceutical Multi Lane Stick Pack Machine 2-10 Lanes Chemical Multi Column
Pharmaceutical Multi Lane Stick Pack Machine 2-10 Lanes Chemical Multi Column
Pharmaceutical Multi Lane Stick Pack Machine 2-10 Lanes Chemical Multi Column
Specifications
Brand Name :
CS
Model Number :
CS
Certification :
CE
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Price negotiable
Payment Terms :
T/T
Supply Ability :
100 units per month
Delivery Time :
Delivery date negotiable
Packaging Details :
Export wooden box packaging
function :
FILLING, Wrapping, Sealing
packaging type :
Bags, Pouch
packaging material :
Plastic
Voltage :
380V
function FILLING, Wrapping, Sealing packaging type Bags, Pouch packaging material Plastic Voltage 38 :
PASTE, liquid
Weight (KG) :
1500
application :
Food, Beverage
automatic grade :
Automatic
warranty :
1 Year
after-sales service provided :
Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service, Free spare parts
Machine Material :
Stainless steel
Power Consumption :
5-8KW
Customized Support :
OEM，ODM
Air Pressure :
0.6MPa
Packing Material :
Plastic film, paper, aluminum foil, etc.
Application :
Food, pharmaceutical, chemical, hardware, etc.
Packing Type :
Pillow bag, gusset bag, stand-up bag, etc.
Bag Size :
Length: 50-300mm, Width: 50-200mm
Weight :
1000-2000kg
Packing Speed :
Up to 200 packs per minute
Number Of Lanes :
2-10 lanes
Air Consumption :
0.4m3/min
Dimension :
3000*1200*1800mm
Power Supply :
220V/380V, 50/60Hz, 3 phase
Description

Multi Column Design Multi Lane Packing Machine For Improved Production Efficiency Of Liquid And Semi-Liquid Products

The multi-column liquid packaging machine is a highly efficient automated equipment, mainly used for multi-column synchronous packaging of liquid or semi-fluid products, and is widely used in food, medicine, chemical, daily chemical and other industries.
Multi-column synchronous filling
It can accurately fill multiple columns of packaging containers at the same time, and ensure the consistency of the filling volume of each column through multiple independent metering systems (such as plunger pumps, peristaltic pumps, etc.), thereby improving production efficiency.
Diversified packaging form support
It is suitable for a variety of packaging types, such as bags (three-side seals, four-side seals), bottles, cans, hoses, etc., and can achieve continuous or intermittent packaging to meet the form requirements of different products.

Main Features

1. lt has SS 304 stainless steel, a strong and long-lasting material.

2. lt usually has an emergency stop, capacity count, and output pack ready.
3. Brand electrical components, more reliable and durable.
4. Automatic slitting film system, the incision is smooth and flat.
Lane number
4/6/8/10/12 Lanes
Measuring range
1-50ml (depend on bag size and packaging material)
Packing speed
30-50 cuts/min
Bag length
Max. 170mm (customized)
Bag width
16-84mm / 16-54mm / 16-40mm / 16-32mm / 16-26mm
Bag type
3/4 side seal bag, back seal bag, irregular shape stick bag
Voltage
380V, 50Hz, 3 Phase
Power
4.5-6.2KW
Air consumption
7L/min
Machine size
Non-standard customization
Machine weight
About 1500kg
