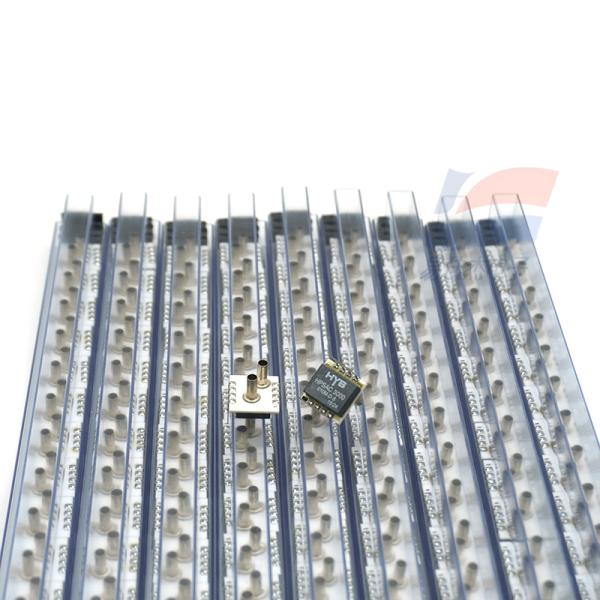

YJJ HPSAC3000 010M-D-S Dual-Tube 1Kpa Constant Current Pressure Sensor Is Used In HVAC Systems

Features:

High performance and high precision enable this sensor to be used in many applications, and its compact and convenient design is highly suitable for production users.

The HPSAC 3000 pressure sensor is installed on a 1mm thick ceramic substrate, with one or two pressure tubes. Printed on the substrate are

Thick film resistors are individually laser-processed to provide temperature compensation and zero-point calibration. An additional resistor is trimmed based on individual...

The range of the sensor is designed to provide convenient sensor amplification and external differential amplifier. The compatible pressure medium for this sensor series

For drying air or non-corrosive gases and liquids.

The HPSAC 3000 model is designed for constant current excitation. The pressure range of the entire series is from 1 kPa to 700 kPa.

Features

Constant current excitation

Easy-to-use DIP packaging

Wide compensation range (0 to 70°C)

Zero calibration

High-performance OEM application

Reducer, measuring tools and relative configuration

Pressure range from 10 mBar to 7 Bar (1 kPa - 700 kPa) Application

Medical instrumentation

Respirators

HVAC (Heating, Ventilation, and Air Conditioning) Process control

Leakage detection Pneumatic control

Height gauge

Specification Description

1) Overpressure refers to a greater force that is applied without damaging the sensing element.

2) The blasting pressure is the greater pressure applied without causing leakage or damage to the sensing element.

3) The analog output signal is proportional to the input current.

4) The offset voltage is the voltage output at zero pressure.

5) The range is the algebraic difference between the full-scale pressure range and the offset.

6) The range and offset thermal errors indicate the significant deviation of the sensor signal (range and offset) throughout the compensation process, compared to the value at 25°C.

In comparison, the temperature range is from 0 to 70°C. For the pressure range where p ≤ 100 mbar, this parameter is defined as Zmax = 0.5 mV.

7) Repetitiveness is defined as the typical deviation of the output signal after 10 pressure cycles.

8) Nonlinearity is defined as the BFSL (better fitting straight line) throughout the entire pressure range, measured on the upper side of the mold at P1.

9) Compatibility of the medium: At the pressure port P1: Clean, dry and non-corrosive gas, suitable for silicon, Pyrex, RTV, gold,

Ceramic Al2O3, epoxy resin, tin.

10) Compatibility with media: At the pressure port P2: Non-corrosive gases are present for silicon, Pyrex, RTV, ceramic Al2O3, epoxy resin, and tin.

Or liquid
