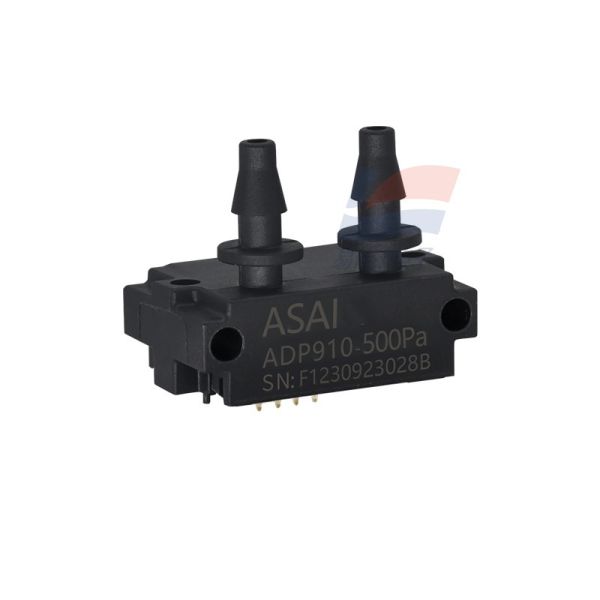

YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement
Specifications
Brand Name :
YJJ
Model Number :
ADP910
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
5-8 days
Packaging Details :
Palletized
Excitation voltage :
5.0- 0.25VDC
Pressure differential range :
-500-500 Pa
Response time :
1 Ms
Full scale span voltage :
4.5V
Working humidity :
30-80RH
Source current less than :
0.2ma
Description

Product Description:

YJJ ADP910 -500- +500Pa Digital Differential Pressure Sensor Used For High-Precision Differential Pressure Measurement

Features:

ADP910 digital differential pressure sensor is mainly used for high-precision differential pressure measurement. It features an I2C interface and fast response characteristics. The following are its core parameters and applications:
Core parameters
Measurement range: -500 to +500 Pa (referenced in some materials)
Response time: 10ms
Interface type: I2C digital interface, supports CRC8 verification
Accuracy: No drift, high signal-to-noise ratio, built-in temperature compensation
Power supply requirements: Not specified, but must comply with the I2C communication standard.
Applications
Medical equipment: Monitoring systems for the gas supply of ventilators, anesthesia machines, and oxygen generators.
Industrial control: Real-time detection of gas flow, concentration and pressure
Environmental Monitoring: Scenarios Requiring High-Precision Differential Pressure Measurement
Other information
Compared with ADP900: ADP910 may have expanded the measurement range or optimized stability.
Communication protocol: Data accuracy must be ensured through CRC verification.

Specifications:

Hysteresis 0.15% of range
Repeatability ±0.2 - ±0.5FSO
Response time (10 - 90%) 1ms
Pressure overload 1.35×105Pa
