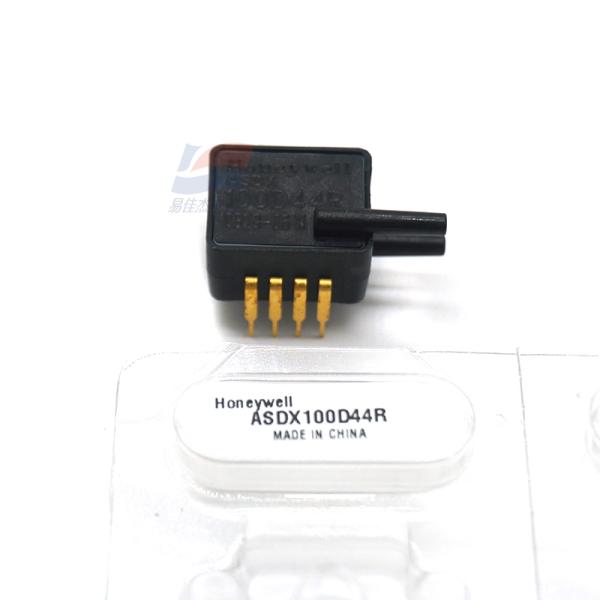

Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Pressure Sensor ASDX100D44R Suitable for HVAC Systems to Regulate air Pressure and Optimize Energy Efficiency
Specifications
Model Number :
ASDX100D44R
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Pressure Range :
0 psi to 100 psi
Supply Voltage :
3.3 VDC or 5.0 VDC
Accuracy :
±2.0% of full - scale
Temperature Range (Compensated) :
0°C to 85°C (32°F to 185°F)
Temperature Range (Operating) :
- 20°C to 105°C (- 4°F to 221°F)
Temperature Range (Storage) :
- 40°C to 125°C (- 40°F to 257°F)
Description

ASDX100D44R Pressure Sensor Features High Accuracy Excellent Stability



Electrical Parameters:

  • Output Signal: Equipped with I²C or SPI digital interfaces, providing 12-bit digital output. It can directly connect to microcontrollers, with a calibrated pressure output update frequency of approximately 1kHz.
  • Supply Voltage: Powered by a single 3.3 VDC or 5.0 VDC supply, featuring low operating voltage.

Accuracy & Temperature Characteristics:

  • Accuracy: Maximum full-scale total error band is ±2.0%.
  • Temperature Range: Integrated with a dedicated ASIC (Application-Specific Integrated Circuit), fully calibrated and temperature-compensated within 0°C to 85°C (32°F to 185°F).

Dynamic Performance:

  • Response Time: 8 ms, enabling fast response to pressure changes.

Compatible Media:

Suitable for non-corrosive, non-ionic working fluids such as air and non-corrosive gases.

Product Features:

  • Adopts the latest ASIC technology to achieve high-spec performance in a small DIP (Dual In-line Package) form factor.
  • Features high accuracy and excellent stability.

Application Fields:

  • Flow calibrators, ventilation and airflow monitoring, sleep apnea monitoring, barometric pressure measurement, and other scenarios.
Supply Voltage 3.3 VDC or 5.0 VDC
Accuracy ±2.0% of full - scale
Temperature Range (Compensated) 0°C to 85°C (32°F to 185°F)
Temperature Range (Operating) - 20°C to 105°C (- 4°F to 221°F)
Temperature Range (Storage) - 40°C to 125°C (- 40°F to 257°F)
Response Time 8 ms
Measured Media Non - corrosive, non - ionic working fluids such as air and non - corrosive gases
Package Style DIP (Dual In - line Package)
Sensitivity Varies by pressure range, e.g., for 0 psi to 100 psi range, it is 0.040 V/psi7
Power Consumption Current 6 mA (typical)7
Output Current (Sink) 2 mA (maximum)7
Output Current (Source) 2 mA (maximum
