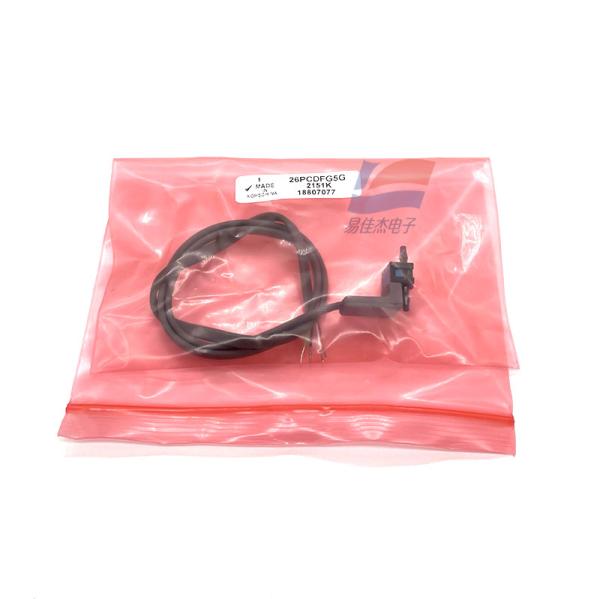

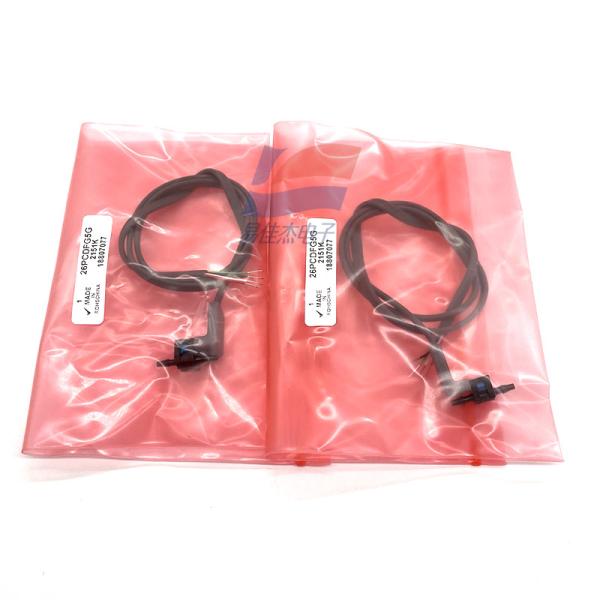

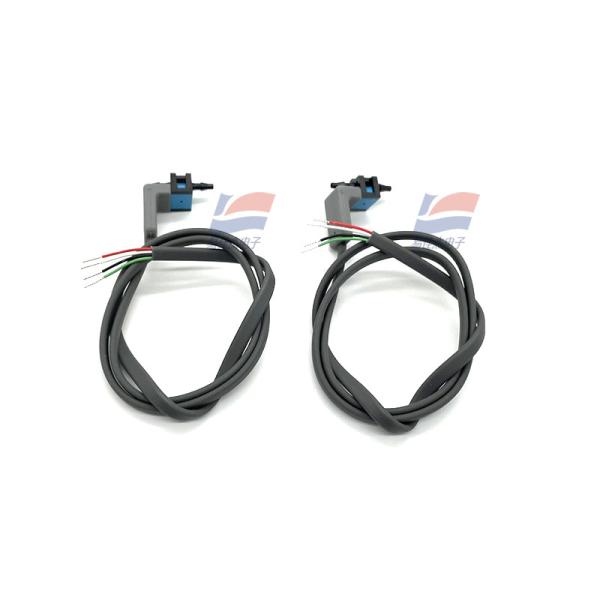

26PCDFG5G Pressure Sensor For Medical Devices Such As Nebulizers
26PCDFG5G Pressure Sensor For Medical Devices Such As Nebulizers
26PCDFG5G Pressure Sensor For Medical Devices Such As Nebulizers
26PCDFG5G Pressure Sensor For Medical Devices Such As Nebulizers
26PCDFG5G Pressure Sensor For Medical Devices Such As Nebulizers
26PCDFG5G Pressure Sensor For Medical Devices Such As Nebulizers
26PCDFG5G Pressure Sensor For Medical Devices Such As Nebulizers
26PCDFG5G Pressure Sensor For Medical Devices Such As Nebulizers
Specifications
Model Number :
26PCDFG5G
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Supply Voltage :
Typical 10V DC
Output Voltage :
0 to 100 mV
Input Resistance :
Min. 5.5 kΩ, Typ. 7.5 kΩ, Max. 11.5 kΩ
Output Resistance :
Min. 1.5 kΩ, Typ. 2.5 kΩ, Max. 3.0 kΩ
Sensitivity :
Typical 3.33 mV/psi
Accuracy :
±0.2%
Description

26PCDFG5G Pressure Sensor For Medical Devices Such As Nebulizers

Physical Characteristics:

  • Package Type: SIP-4 (Single In-line Package) with cable harness.
  • Dimensions: Body length or diameter: 12.7 mm.
  • Weight: Approximately 4 g.
  • Pressure Port Type: Single axial barb port with 1.78 mm (0.070 in) or 5.0 mm (0.200 in) diameter flow channel, minimal dead volume.

Other Parameters:

  • Response Time: Max. 1 ms.
  • Shock: Certified to 150g per MIL-STD-202 Method 213 (150g half-sine, 11 ms).
  • Vibration: Complies with MIL-STD-202 Method 213 (150g half-sine, 11 ms).
  • Measured Media: Air, gases, liquids, etc., limited to media that do not damage polyetherimide, silicon, fluoro-silicone, silicone, EPDM, and neoprene seals.

Product Features:

  • Adopts piezoresistive micro-machined sensing elements with temperature compensation and calibration.
  • Capable of wet/wet differential sensing, measuring vacuum or positive pressure.
  • High cost-performance ratio.

Application Fields:

  • Suitable for medical devices such as nebulizers, kidney dialysis machines, blood cell separators, water control valves, etc.
  • Also applicable to other industrial scenarios requiring low-pressure measurement.

Sensitivity Typical 3.33 mV/psi
Accuracy ±0.2%
Linearity Typ. ±0.10% of span, Max. ±0.20% of span
Operating Temperature Range -40°C to 85°C
Compensated Temperature Range 0°C to 50°C
Storage Temperature Range -55°C to 100°C
Package Type SIP - 4 (Single In - line Package) with cable harness
Dimensions Body length or diameter: 12.7 mm
Weight Approximately 4 g
