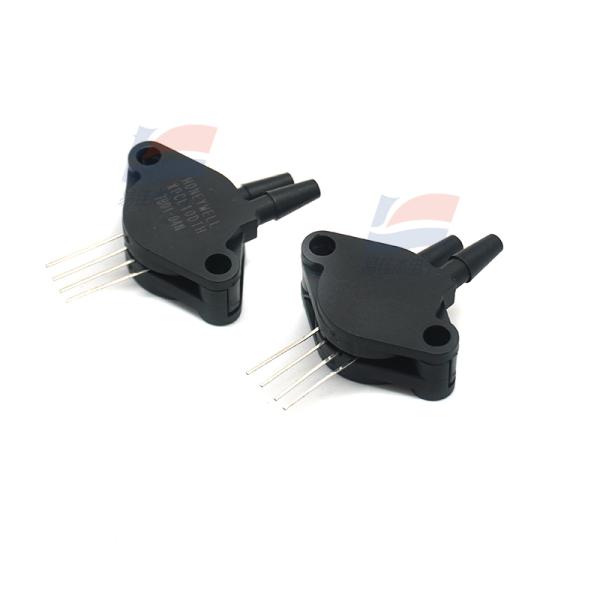

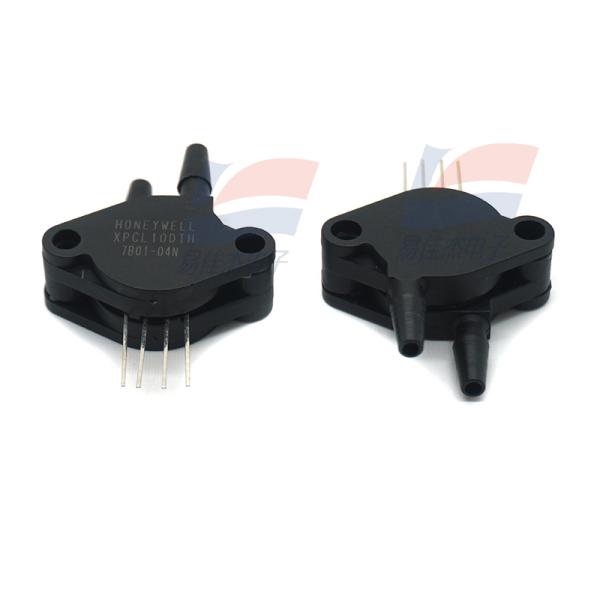

XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
Specifications
Brand Name :
YJJ
Model Number :
XPCL10DTH
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Pressure Type :
Vacuum, Gauge, Differential
Operating Pressure :
10 in H2O
Accuracy :
1 %
Output Type :
Analog
Description

XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type

The XPC/XPCL Series and XPXL Series sensors integrate silicon micromachined sensing technology, temperature compensation, and calibration in a complete family of low-cost packages. This series offers a cost-effective solution for design requirements.

These piezoresistive pressure sensors use micromachined silicon chips mounted on ceramic and protected with a plastic
cap. Several tube arrangements with nylon housings are available for various pressure applications.

FEATURES
*Low cost, small size
*Temperature compensated
*Zero and span calibrated
*Millivolt output
*Differential, gage and absolute pressure
*Constant voltage excitation
*High impedance - low current

Mounting Style
Through Hole
Operating Supply Voltage 12 V
Port Type Dual Radial Barbless
Package / Case SIP-4
Minimum Operating Temperature - 25℃
Maximum Operating Temperature + 85℃
Supply Voltage - Max 16 V
Supply Voltage - Min 3 V

XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
