Specifications
Model Number :
40PC150G2A
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Pressure Range :
0 - 150 psi (Gauge Pressure)
Output Signal :
Analog, 0.5 - 4.5V
Operating Temperature :
-45℃ to +125℃
Storage Temperature :
-55℃ to +125℃
Supply Voltage :
5VDC
Supply Current :
Max. 10mA
Description

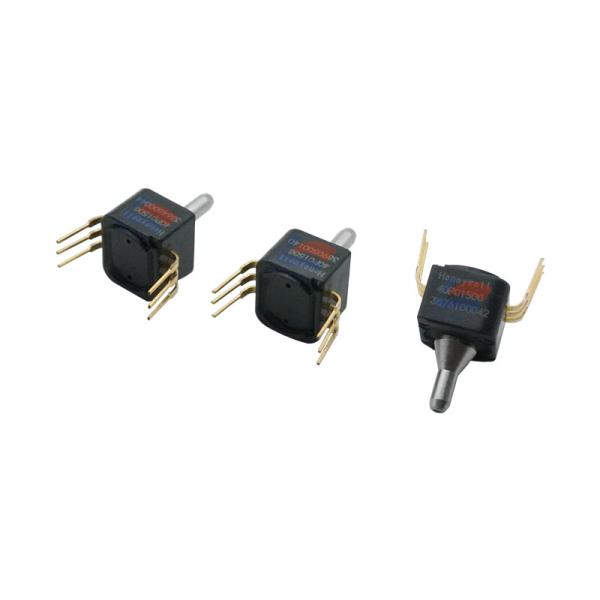

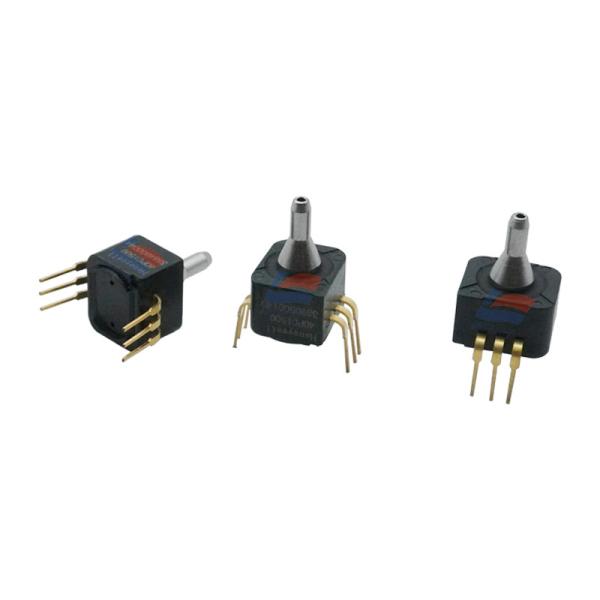

40PC150G2A Pressure Sensor For Electronic Braking Systems Engine Oil Level Detection

Manufacturing Process and Materials:

Adopts silicon piezoresistive technology, using semiconductor single crystal material. The design integrates temperature compensation, output zero and full-scale calibration, and amplification functions into a single silicon chip through a monolithic silicon wafer design.

Pin Package:

6-pin DIP (Dual In-line Package). Three pins on one side are for power supply, ground, and output, while the three pins on the other side are for fixing. The fixing pins can also be removed to make the pressure port horizontal to the PCB.

Pressure Port Design:

Suitable for O-ring seal connection.

Medium Compatibility:

Compatible with various media, including dry air, water, coolant, and engine oil, etc. It is limited to media that do not corrode materials such as steel, brass, silicon, stainless steel, glass, and solder joints.

Application Fields:

Can be used in electronic braking systems, engine oil level detection, transmission fluid liquefaction

Pressure Range 0 - 150 psi (Gauge Pressure)
Output Signal Analog, 0.5 - 4.5V
Operating Temperature -45℃ to +125℃
Storage Temperature -55℃ to +125℃
Supply Voltage 5VDC
Supply Current Max. 10mA
Output Source Current Max. 0.5mA
Output Sink Current Max. 1.0mA
Linearity 0.15% F.S.
Manufacturing Process Silicon Piezoresistive Technology
Package Type 6 - pin DIP
Pressure Port Design Suitable for O - ring Seal Connection
