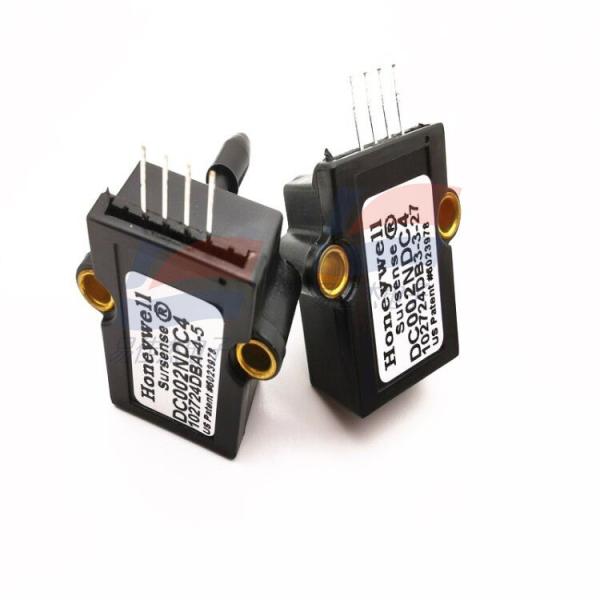

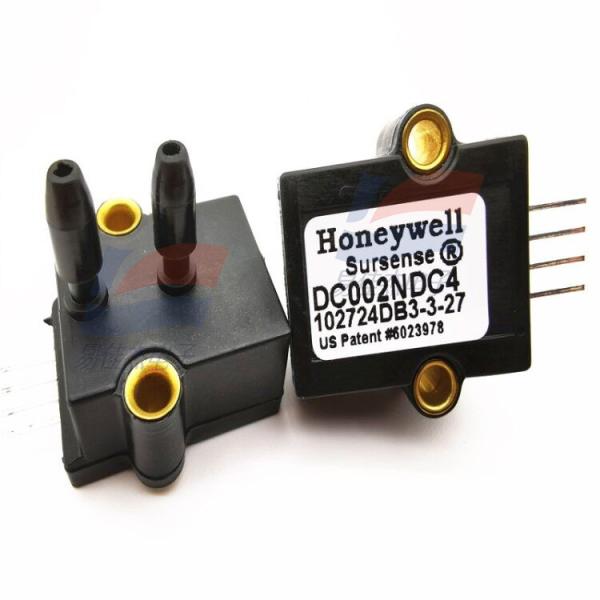

DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
Specifications
Model Number :
DC002NDC4
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Operating Temperature Range :
- 25°C to 85°C
Output Voltage Range :
0.25 V to 4.25 V or 2.25 V to 6.25 V
Supply Current :
4 mA (typical)
Supply Voltage :
3.0 V to 16.0 V, typical value is 5 V
Accuracy :
±0.05%
Pressure Range :
0 psi to 0.072 psi
Description

DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment

  • Product Features:
    • It is a temperature - compensated differential sensor, which can provide relatively accurate pressure measurement in a certain temperature range.
    • The barbed port design is convenient for pipeline connection, which is suitable for board - mount applications.
  • Application Fields:
    • It can be used in medical equipment, such as being integrated into infusion pumps, ventilators and other equipment to measure the pressure of liquids or gases, helping medical staff to monitor the treatment process and ensure the safety of patients. It can also be used in some industrial occasions that require low - pressure measurement.

Accuracy ±0.05% --
Output Type Analog voltage --
Output Voltage Range 0.25 - 4.25 V or 2.25 - 6.25 V V
Supply Voltage 3.0 - 16.0 V, typical 5 V V
Supply Current 4 (typical) mA
Operating Temperature Range -25 - 85 °C
Mounting Style Through - hole --
Package/Case 4 - SIP module --
Port Type Dual Radial Barbed, Same sides --
Port Size Male - 0.19" (4.83 mm) tube, dual --
Body Length 21.59 mm
Body Breadth 12.95 mm
Body Height 27.43 mm
Maximum Pressure 3.61 psi (24.92 kPa) psi (kPa)

DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
