SM9541-100C-D-C-3-S Low Pressure Digital Sensor For Pneumatic Gauges
SM9541-100C-D-C-3-S Low Pressure Digital Sensor For Pneumatic Gauges
Specifications
Model Number :
SM9541-100C-D-C-3-S
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Proof Pressure :
±12 psi
Burst Pressure :
±15 psi
Accuracy :
±1% FS
Supply Voltage :
3 - 3.6 VDC
Description

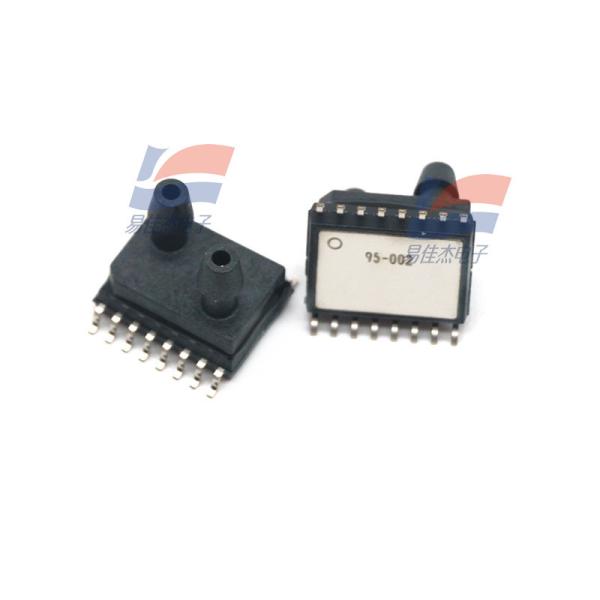

SM9541-100C-D-C-3-S Low Pressure Digital Sensor For Pneumatic Gauges


Product Features:

  • It is a fully - digital pressure sensor with pressure calibration and temperature - compensation functions, which can provide high - precision measurement results7.
  • Adopting I2C digital interface, it is easy to connect to the main control of different platforms, and the wiring is simple5.
  • 14 - bit resolution can meet the needs of high - precision measurement4.
  • Insensitive to mounting orientation, with strong adaptability2.
  • Using JEDEC - standard SOIC - 16 package, it is suitable for automated assembly and can be directly installed on the standard printed circuit board7.
  • Manufactured according to ISO 9001 and ISO/TS 16949 standards7.
  • Application Fields7
  • Medical Field: Sleep apnea (CPAP, MPAP) equipment, ventilators/anesthesia equipment, oxygenators, spirometers.
  • Industrial Field: Pneumatic gauges, pressure switches, safety cabinets, liquid level measurement.
  • Consumer Field: Sports equipment, appliances.
Pressure Range -100 to 100
Proof Pressure ±12 psi
Burst Pressure ±15 psi
Accuracy ±1% FS
Supply Voltage 3 - 3.6 vdc
Supply Current 2 mA
Output Interface I2C
Resolution 14 - bit
Compensated Temperature Range -5 to 60 °C
Operating Temperature Range -5 to 65 °C
Long - term Zero Shift <+2% FS over 10 years

SM9541-100C-D-C-3-S Low Pressure Digital Sensor For Pneumatic Gauges
