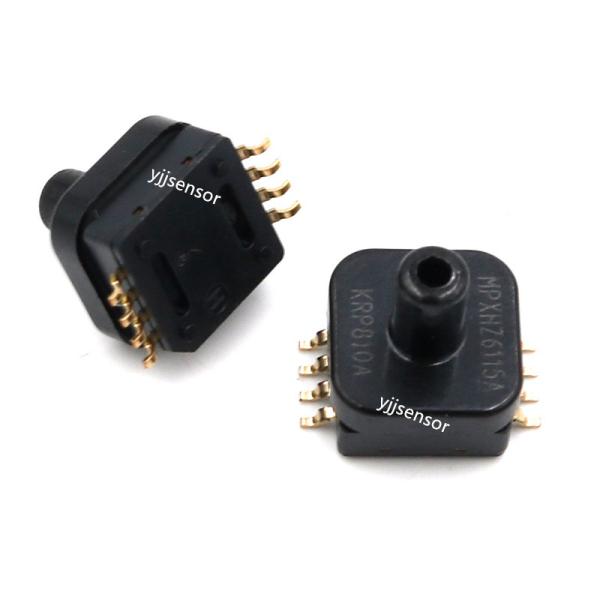

MPXHZ6115AC6T1 Pressure Silicon Pressure Sensor For Weather Stations Weather Reporting Devices

Product Features:

• It adopts a silicon piezoresistive structure, and the chip integrates a strain - gauge and a thin - film resistor network2.
• With temperature compensation function, it can maintain high - precision measurement within the operating temperature range2.
• The surface - mount package is adopted, which is convenient for circuit board installation, and the package is 8 - SOIC with a top - port design, which is convenient for pressure connection2.
• Application Fields6
• It can be used in medical gas control systems, hospital beds, massage devices, engine control/manifold absolute pressure (MAP), green gas (LPG and CNG) control and measurement.
• Also applicable to weather stations and weather reporting devices, barometers, sports and leisure equipment, vacuum measurement, pneumatic devices, absolute pressure meters, etc.

• Pressure Range	15 - 115kPa
  Maximum Pressure	400	kPa
  Supply Voltage	4.75 - 5.25	V
  Output Range	0.2 - 4.7	V
  Accuracy	±1.5%	--
  Linearity	1.5%	--
  Operating Temperature Range	-40 - 125	°C
  Response Time	1000	μs
  Sensitivity	45.9	mV/V
  Port Size	Male - 3.3 mm Tube	--
  Pin Count	8	--
  Package/Case	8 - SOIC (0.335, 8.50 mm width), Top Port	--
