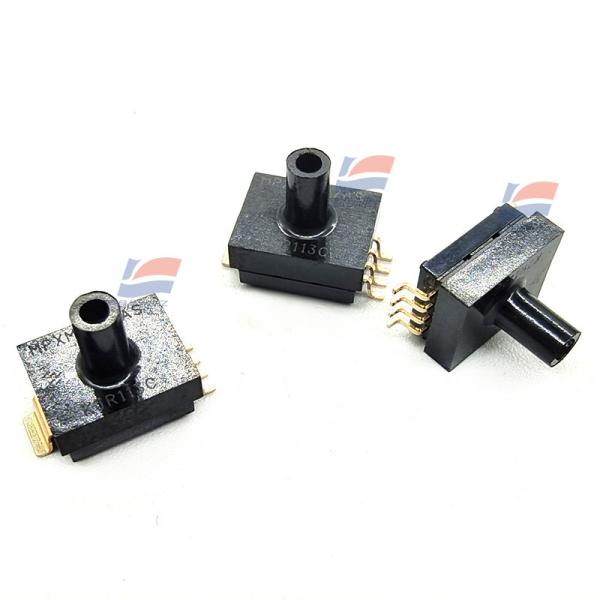

YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
Specifications
Brand Name :
YJJ
Model Number :
MPXM2102AS
Place of Origin :
USA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500
Delivery Time :
5-8 days
Packaging Details :
Plate serving
Working pressure :
20 kPa to 100 kPa
Working power supply voltage :
10 V
Port type :
Single Axial Barbless
Packaging/Box :
M-PAK-5
Minimum operating temperature :
-40 ° C
Maximum operating temperature :
+ 125 ° C
Description

Product Description:

MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors

Features:

MPX2102 MPXV2102G/MPXM2102 series piezoresistive silicon pressure sensor for Medical and industrial control applications.

It provides a very linear voltage output, which is proportional to the applied pressure

Strain gauges and thin-film resistance networks were integrated on single-chip silicon wafers

The range, offset calibration and temperature compensation are achieved through the laser calibration chip

Product type: Board computer interface pressure sensor

RoHS:

REACH - SVHC:

Pressure type: Absolute

Working pressure: 20 kPa to 100 kPa

Accuracy: 0.5%

Output type: Analog

Installation style: SMD/SMT

Working power supply voltage: 10 V

Port type: Single Axial Barbless

Packaging/Box: M-PAK-5

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Series: MPX2102

Packaging: Tube

Trademark: Semiconductors

Working power supply current: 6 mA

Port size: 2.9mm

Product type: Board Mount Pressure Sensors

60

Subcategory: Sensors

Power supply voltage - Maximum: 16 V

Power supply voltage - minimum: 1 V

Part number alias: 935321201174

Unit weight: 527.800 mg

Specifications:

Working pressure 20 kPa to 100 kPa
Accuracy 0.5%
Output type Analog
Installation style SMD/SMT

YJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge DetectorsYJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge DetectorsYJJ MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
