Product Description:

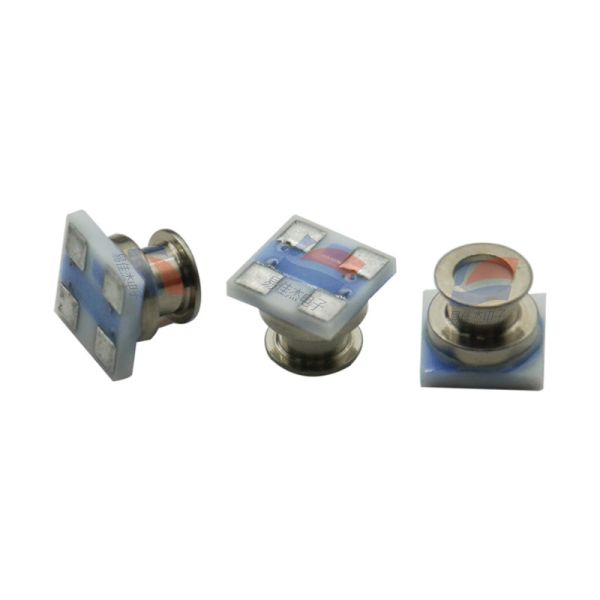

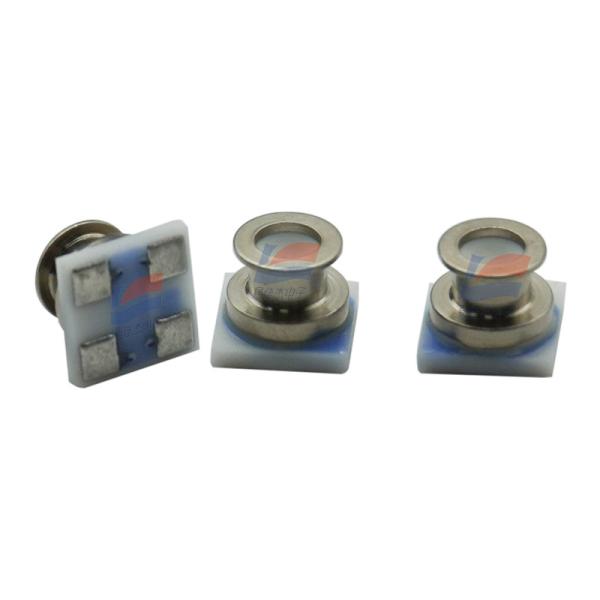

MS5637-02BA03-50 Air Pressure Sensor Ultra-small Micro-altimeter MEMS Sensor

Features:

MS5637-02BA03 barometric pressure sensor is an ultra-small micro-altimeter. MS5637-02BA03 has been optimized for altimeter and barometer applications on smartphones and tablets. The altitude resolution in the air can reach 13cm. This sensor module includes a pressure sensor with an internal factory calibration coefficient and high linearity, as well as an ultra-low power 24-bit ΔΣ -type ADC. The MS5637-02BA03 barometric pressure sensor provides precise 24-digit digital pressure and temperature values as well as various operation modes, allowing users to optimize conversion speed and current consumption. The MS5637-02BA03 features a high-resolution temperature output and can function as an altimeter/thermometer without any additional sensors. The MS5637 can be connected to any microcontroller via the I²C bus interface. The communication protocol is simple and does not require programming in the internal registers of the device. The ultra-small size of 3×3×0.9 cubic millimeters can be very conveniently integrated into mobile devices. The MS5637-02BA03 barometric pressure sensor adopts the leading MEMS technology, featuring high stability and very low lag in pressure and temperature signals.

Brand: Intersema

Output: 24-digit digital output

Range: 300-1200mbar

Packaging: Ceramic

Operating temperature range: -40℃ to 85℃

Accuracy: 2mbar

Power supply: 1.5-3.6V

Feature: QFN package 3×3×0.9 cubic millimeters; High-resolution module, 13 centimeters; Integrated digital pressure sensor (24-bit ΔΣ ADC); Expand the pressure range from 10 to 2000mBar

Type: Absolute pressure

Electrical connection: Surface mount

Typical applications: Smart phones, tablet computers, personal navigation devices

Pressure type: Absolute

Working pressure: 300 mbar to 1.2 bar

Accuracy: 2 mbar

Output type: Digital

Installation style: SMD/SMT

Interface type: I2C

Working power supply voltage: 3 V

Port type: No Port

Resolution: 24 bits

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Series: MS5637

Encapsulation: Reel

Encapsulation: Cut Tape

Packaging: MouseReel

Trademark: Measurement Specialties

Working power supply current: 1.25 mA

Product type: Board Mount Pressure Sensors

3600

Subcategory: Sensors

Power supply voltage - Maximum: 3.6V

Power supply voltage - minimum: 1.5V

Unit weight: 25 mg

Specifications:
