Product Description:

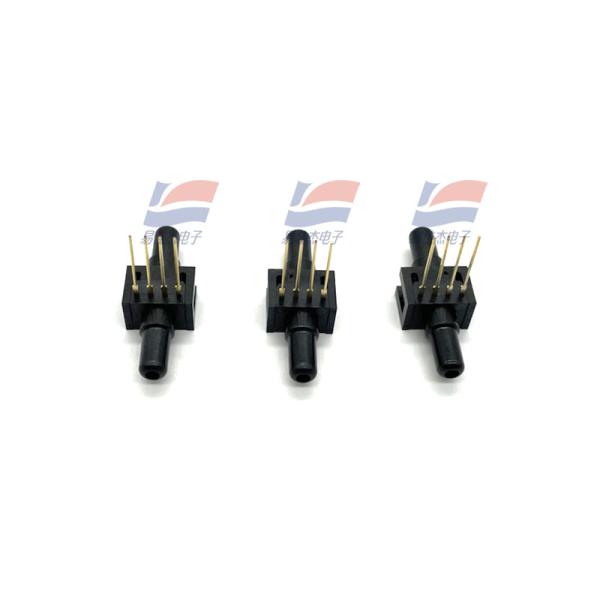

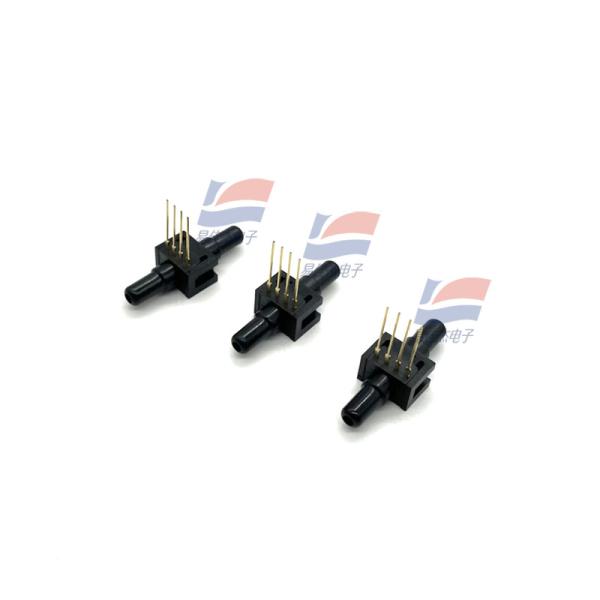

26PCFFA6D Ventilation Equipment Differential Pressure ±100psi Trigger Interface Pressure Sensor

Features:

26PC series compensating type. Low pressure. mV output. Differential pressure, wet/wet differential pressure, gauge pressure. DIP, SIP, SMT. Linearity and lag: 0.5% typ.

Pressure range

0.5 psi to 250 psi (SIP, DIP)

1 psi to 15 psi (SMT)

The factory-calibrated 26PC series of small pressure sensors feature a compact package size and offer reliable gauge pressure sensing performance. This sensor is equipped with verified sensing technology and employs dedicated piezoresistive micro-machined sensing elements, allowing for part interchangeability. It features high performance, reliability and accuracy. The low-power, amplitation-free and compensation-free Wheatton bridge circuit can provide a stable mV output within the sensing range of 1.0 psi to 250 psi.

Product Features

It is the most economical sensor with temperature compensation and calibration functions

A variety of pressure measurement interface configurations are available for selection - they can be easily and quickly modified according to special requirements

It can work normally even under freezing conditions

Multiple terminal connection methods for measurement sensors are available for selection

Zero position and range calibration

Temperature compensation

Interchangeability can be achieved

It can be used to measure vacuum or positive pressure

Application field

Health

The distribution of oxygen and nitrogen in hospitals

Dental operating chair

Environment

Water flow control valve

Instruments and meters

Irrigation equipment

Filtering monitoring equipment

Industrial instrument

Robot

Pressure valves

Leakage detection

Air compressor

Medical devices

Gas chromatograph

Specifications:
