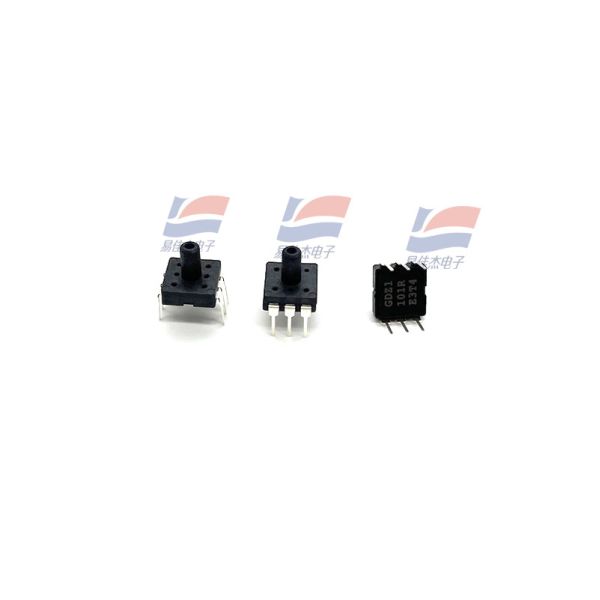

YJJ XGZP168 Micro Pressure Barometric Sensor Outputs Differential MV For The Air Filter Ventilator SOP6
YJJ XGZP168 Micro Pressure Barometric Sensor Outputs Differential MV For The Air Filter Ventilator SOP6
YJJ XGZP168 Micro Pressure Barometric Sensor Outputs Differential MV For The Air Filter Ventilator SOP6
YJJ XGZP168 Micro Pressure Barometric Sensor Outputs Differential MV For The Air Filter Ventilator SOP6
Specifications
Brand Name :
YJJ
Model Number :
XGZP168
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
2200
Delivery Time :
5-8 days
Packaging Details :
Tube installation
Operating temperature range :
-30℃ to +100℃
Power supply :
≤15VDC or ≤3.0mA DC
Input impedance :
4kQ to 6kQ
Output impedance :
4k2 to 6kQ
Insulation resistance :
100MQ,100VDC
Allowable overload :
pressure range ≤40kPa
Description

Product Description:

XGZP168 Micro Pressure Barometric Sensor Outputs Differential MV For The Air Filter Ventilator SOP6

Features:

Measurement range: -100 kpa to 0kPa... 1000kPa

MEMS technology

Gauge pressure form

SOP or DIP packaging form

Suitable for non-corrosive gases

Operating temperature range :-30℃ to +100℃

The back pressure chamber of the chip is under pressure

The direction of the pins can be selected

Electrical performance

Power supply :≤15VDC or ≤3.0mA DC

Input impedance :4kQ to 6kQ

Output impedance :4k2 to 6kQ

Insulation resistance :100MQ,100VDC

Allowable overload: Allowable overload :3 times full scale (pressure range ≤40kPa)

2 times full scale (40kPa< pressure range ≤200 kpa)

1.5 times full scale (200kPa< pressure range ≤1000kPa)

Pressure-sensitive chip: Silicon material

Lead wire: Gold wire

Encapsulation shell: PPS material

Pin: Copper plated with silver

Net weight: Approximately 0.4 grams

"Electrical performance"

Power supply: ≤15V DC or ≤3.0mA DC

Input impedance: 4kΩ to 6kΩ

Output impedance: 4kΩ to 6kΩ

Insulation resistance: 100MΩ,100VDC

Permissible overload: 3 times the maximum static pressure (maximum static pressure ≤40kPa)

1.5 times the maximum static pressure (40kPa< maximum static pressure ≤350kPa)

conditions"

Measuring medium: Air

Medium temperature: (25±1) ℃

Ambient temperature: (25±1) ℃

Vibration: 0.1g(1m/s ²)Max

Humidity: (50%±10%) RH

Power supply: (5±0.005) V DC

It is only used as the benchmark test condition for the following basic parameters

Specifications:

Measurement range -100 kpa to 0kPa... 1000kPa
Packaging form SMD/DIP
Operating temperature 0℃ to 40℃
Operating temperature range -30℃ to +100℃

YJJ XGZP168 Micro Pressure Barometric Sensor Outputs Differential MV For The Air Filter Ventilator SOP6YJJ XGZP168 Micro Pressure Barometric Sensor Outputs Differential MV For The Air Filter Ventilator SOP6
