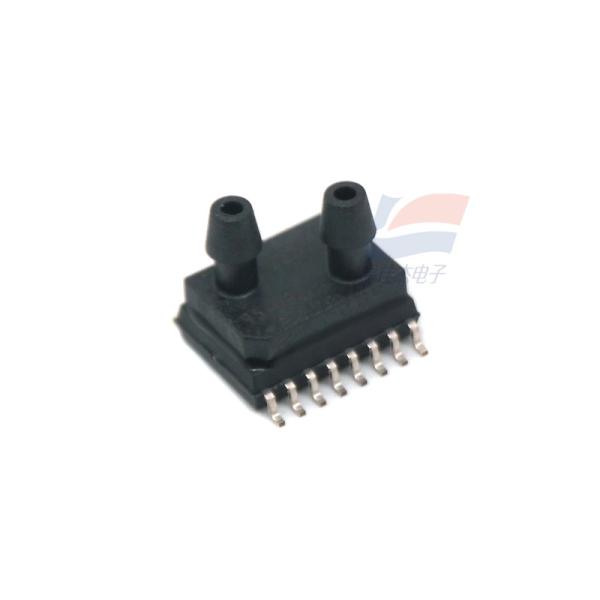

SM9541-020C-D-C-3-S Differential Pressure ± 20cmH2O Digital I2C Pressure Sensor

Features:

SM9541-020C-D-C-3-S Differential pressure ± 20cmH2O digital I2C pressure sensor

SMI ultra-low voltage digital sensor

SM9541 series

Gauge pressure and differential pressure sensors

The SM9541 series is a digital low-voltage MEMS sensor series that offers advanced pressure sensor technology and CMOS mixed-signal processing technology to generate digital, fully regulated, multi-level pressure and temperature compensated JEDEC standard SOIC-16 package dual vertical sensor transplantation options. It has two types of pressure configurations: compound instrument and differential. With dual ports, vacuum range measurement can minimize the impact of environmental pressure.

Combining the pressure sensor with the signal regulation ASIC in a single package simplifies the use of pressure sensors in advanced silicon micromachining. Pressure sensors can be directly installed on standard printed circuit boards, and high-level calibration pressure can obtain signals from digital interfaces. This eliminates the need for additional circuits, such as compensation networks or microcontrollers containing custom correction algorithms.

Pressure type: Differential

Working pressure: -20 cm H2O to 20 cm H2O

Accuracy: 1%

Output type: Digital

Installation style: SMD/SMT

Interface type: I2C

Working power supply voltage: 3 V

Port type: Dual Radial Barbed

Resolution: 14 bits

Package/Box: SOIC-16

Minimum operating temperature: -5 ° C

Maximum operating temperature: + 65 ° C

Series: SM9541

Packaging: Tube

Trademark: TE Connectivity/SMI

Humidity sensitivity: Yes

Working power supply current: 1 mA

Port size: 3 mm

Product type: Board Mount Pressure Sensors

45

Subcategory: Sensors

Power supply voltage - Maximum: 3.6V

Power supply voltage - minimum: 3 V

Part number alias: 9541-020C-D-C-3-S 9541-020C-D-C-3-S

Unit weight: 3.453 g

SM9541 is transported in the form of tubes or tapes and reels.
