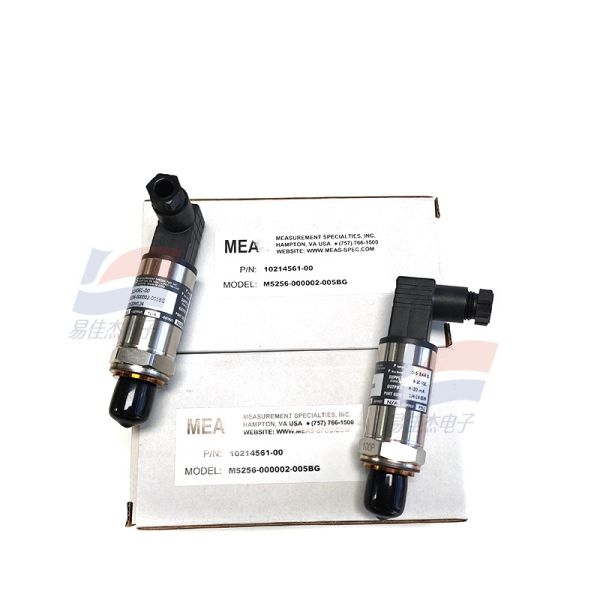

M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation
Specifications
Model Number :
M5256-000002-005BG
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Pressure Type :
Vented Gauge (0-5 bar/0-72.5 psi)
Pressure Range :
0-5 bar (rated); Proof Pressure: 10 bar (2*rated)
Output Signal :
4-20 mA
Accuracy :
±0.25% FS
Hysteresis :
±0.1% FS
Response Time :
5 ms
Description

M5256-000002-005BG Pressure Transmitter for Industrial Hydraulics/Pneumatics Process Automation

Key Features :

  1. Microfused Technology: Solid - state sensing element with high stability, low drift, and resistance to shock/vibration (50g peak, 10-2000 Hz).
  2. Heavy - Duty Protection: IP67/IP65 enclosure; reverse polarity, short - circuit, and surge protection meet industrial CE standards.
  3. Flexible Output: 4-20 mA standard output for easy PLC/DCS integration; optional voltage outputs for diverse systems.
  4. Corrosion Resistance: 17-4 PH stainless steel wetted parts handle water, steam, and mildly corrosive fluids.
  5. Wide Temperature Tolerance: Operates from -40 to +125°C with minimal total error for extreme - environment use.
  6. Easy Installation: 1/4 BSP female pressure port; compact design fits tight spaces.

Typical Applications :

  1. Industrial Hydraulics/Pneumatics: Monitor pressure in mobile equipment, pumps, compressors, and cylinder systems.
  2. HVAC & Refrigeration: Track refrigerant, chiller, and air handler pressure for system efficiency.
  3. Process Automation: Fluid pressure control in chemical, water/wastewater, and food/beverage production.
  4. Marine & Off - Highway: Engine oil, fuel, and hydraulic system pressure monitoring in harsh marine/construction settings.
  5. Energy & Utilities: Pressure measurement in renewable energy (solar thermal, wind) and power generation systems.

Model M5256-000002-005BG
Pressure Type Vented Gauge (0-5 bar/0-72.5 psi)
Pressure Range 0-5 bar (rated); Proof Pressure: 10 bar (2× rated)
Output Signal 4-20 mA (standard); optional 0.5-4.5V, 1-5V, 0-5V, 0-10V
Accuracy ±0.25% FS (BFSL, 25°C); Total Error Band (TEB): ±0.5% FS (over -40 to +125°C)
Non - Linearity ±0.15% FS (BFSL)
Hysteresis ±0.1% FS
Response Time 5 ms (typical, unfiltered); configurable via internal damping
Power Supply 9-30 VDC (for 4-20 mA); 5 VDC (for ratiometric voltage output)
Electrical Connection Cable (standard) or 1/4 BSPP male connector (optional)
Wetted Materials 17-4 PH stainless steel (isolator); FKM O - ring
Dimensions Hex width: 24 mm; Height: 49.53 mm
Weight ~150 g
Protection Rating IP67 (cable); IP65 (connector version)
Operating Temp -40 to +125°C (-40 to 257°F)
EMI/RFI Protection 10 V/m (per EN 61000 - 6 - 2)
Circuit Protection Reverse polarity (input); short - circuit (output); surge protection
Certifications CE (heavy industrial); RoHS compliant
