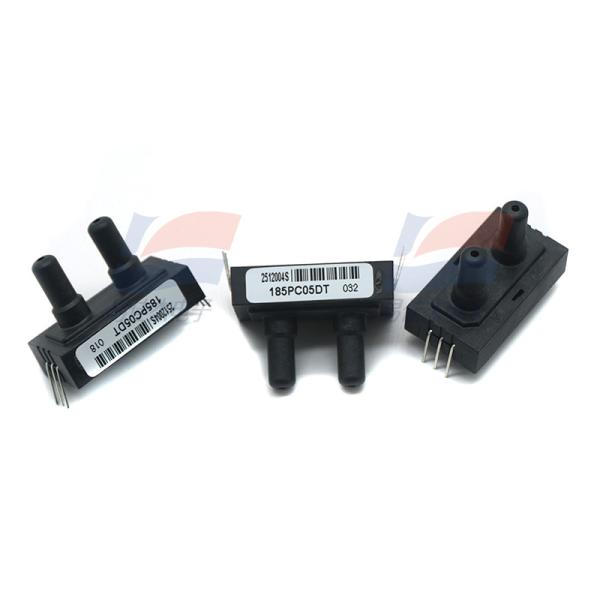

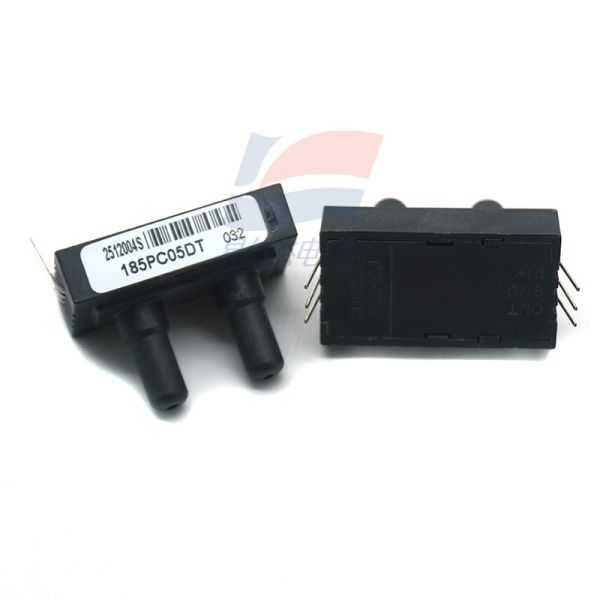

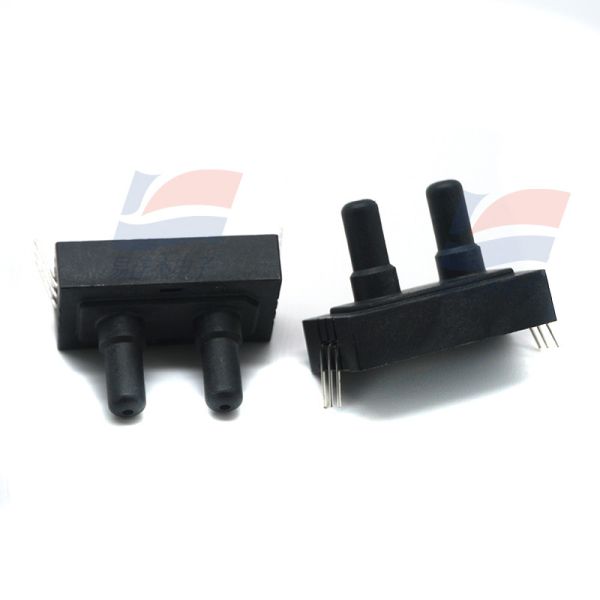

YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter
YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter
YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter
YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter
YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter
YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter
Specifications
Brand Name :
YJJ
Model Number :
185PC30DT
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
1500
Delivery Time :
5-8 days
Packaging Details :
Palletized
Package Type :
6-DIP
Product Description :
0-30 PSI
Port Specifications :
male type 0.197 inches
Category :
Pressure Sensor
range :
0-30 pounds
Operating Temperature Range :
-40°C ~ 85°C
Description

Product Description:

YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter

Features:

Differential pressure sensor. Here is the description of its core parameters: Basic Information

Model: 185PC30DT

Category: Pressure Sensor

Manufacturer: Hon Sensing and Control

Package Type: 6-DIP (Dual In-line Package)

Product Description: SENSOR DIFFERENTIAL 0-30 PSI (Differential Pressure Sensor, with a range of 0-30 pounds / square inch)

Core Performance Parameters

Pressure Type: Differential Pressure (measuring the pressure difference between two pressure ports)

Operating Pressure Range: 0-30 PSI (pounds / square inch, approximately 206.84 kilopascals)

Operating Temperature Range: -40°C ~ 85°C (stable operation within this temperature range, with no permanent harmful changes to performance parameters)

Structural and Connection Parameters

Port Specifications: Dual-port design, male type 0.197 inches (5mm) tubular interface, facilitating medium connection and enabling differential pressure measurement

Termination Type: PC pins (facilitating circuit board welding or plug-in connection)

Product type: pressure sensor for board - machine interface

RoHS:

Working pressure :0 psi to 15 psi

Pressure type :Gauge, Differential

Output type :Analog

Installation style :Through Hole

Port type :Dual Axial Barbless

Working power supply voltage :16 V

Minimum operating temperature: -40 C Maximum operating temperature :+ 85 C

Output voltage :6 V

Port size :5 mm

Operating power supply current :6 mA

Product type :Pressure Sensors

Factory Packing Quantity :10

Child categories: Sensors

Specifications:

Working power supply voltage 16 V
Port type Dual Axial Barbless
Minimum operating temperature -40 ° C
Maximum operating temperature + 85 ° C
