YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
Specifications
Brand Name :
YJJ
Model Number :
AGR12
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500
Delivery Time :
5 to 8 working days
Packaging Details :
Palletized
Overload pressure :
5x (FS ≤ 40kPa) %FS 2x (FS > 100kPa) %FS 5V
Power supply voltage :
5V
Output signal :
0.5 - 4.5V
Accuracy :
±2.5 % Span
Long-term stability (1 year) :
±1.0 % Span
Compensation temperature :
0 - 60°C
Description

Product Description:

YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases

Features:

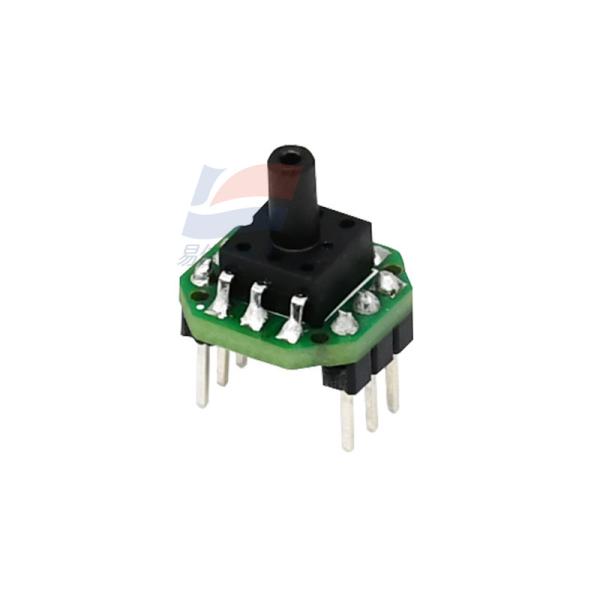

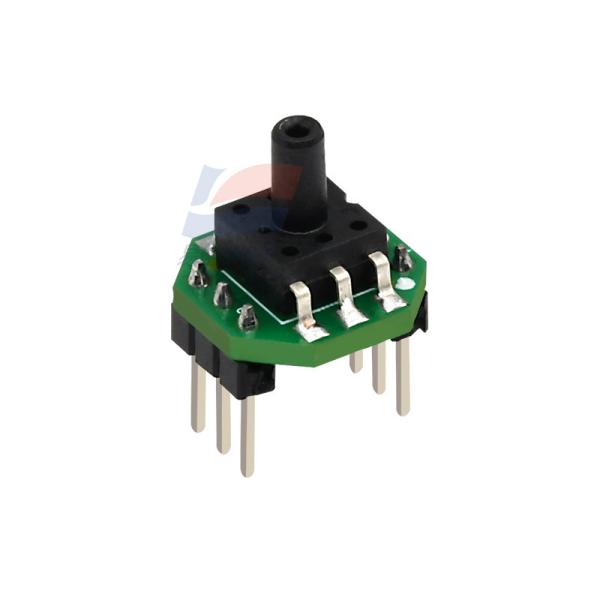

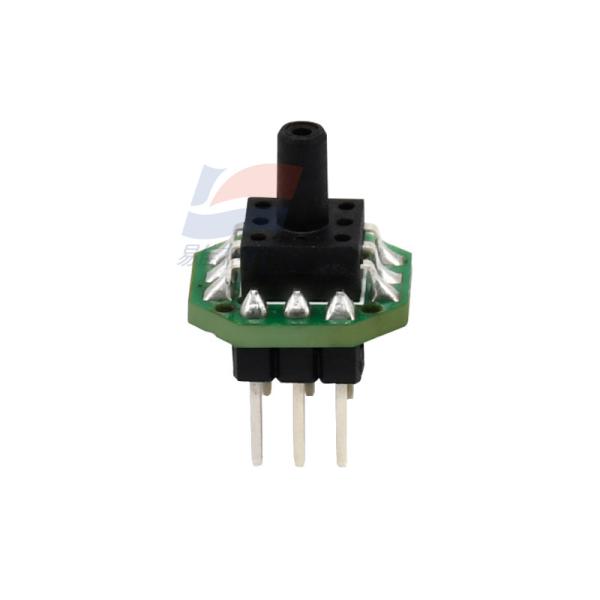

AGR12 pressure sensor adopts a DIP-like packaging form, which facilitates the insertion and removal of components and is highly suitable for automated assembly equipment. On both sides of the PCB board, there are SOP-encapsulated pressure sensors and signal processing circuit chips installed. These sensors' offsets, sensitivities, temperature drifts, and non-linearities are digitally compensated with the power supply voltage as the reference, generating a calibrated and temperature-compensated standard voltage signal. It is an ideal low-cost and high-precision pressure sensor.

Product model: AGR12

Overload pressure: 5x (FS ≤ 40kPa) %FS 2x (FS > 100kPa) %FS 5V

Power supply voltage: 5V

Output signal: 0.5 - 4.5V

Accuracy: ±2.5 % Span

Long-term stability (1 year): ±1.0 % Span

Compensation temperature: 0 - 60°C

Operating temperature: -30 - 100°C

Storage temperature: -30 - 125°C

Operating current: 4.2mA / 3.8mA

Filter capacitor: 100nF

Output current load: < 5 mA

Specifications:

Sampling period‌ >100MS/each time
‌Temperature -40℃ ~ +80℃
Operating humidity‌ 0 - 95%RH
‌Temperature ±0.5℃

YJJ AGR12 ±2.5; 0 - 10 KPa Gas Pressure Sensor Module Gauge Pressure Sensor Suitable For Non-Corrosive Gases
