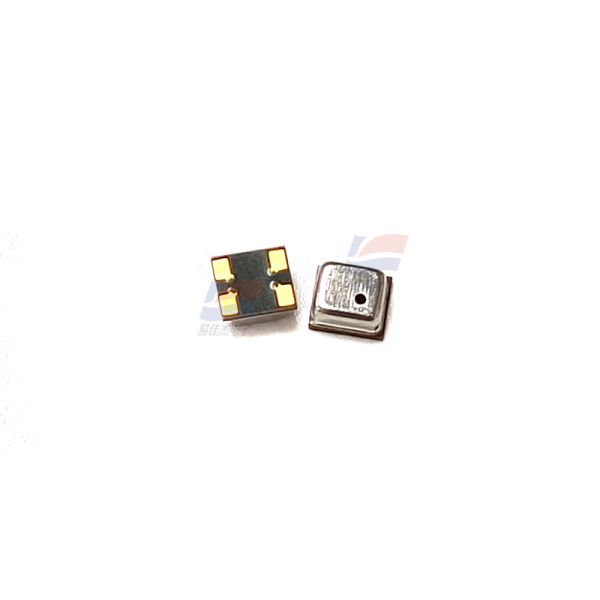

XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics
Specifications
Model Number :
XGZP131 XGZP131-350A
Place of Origin :
CN
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Accuracy :
1% FS
Supply Voltage :
≤15 VDC or ≤3.0 mADC
Operating Temperature :
-30℃ ~ +105℃
Pressure Type :
Absolute pressure
Description

XGZP131 Series Absolute Pressure Sensor For Automotive Electronics Consumer Electronics

Features:

  • Stable and reliable performance: Built with MEMS piezoresistive technology, it has good linearity and repeatability. It can maintain stable measurement accuracy in a wide temperature range, meeting the long - term use requirements of electronic equipment.
  • Compact and easy - to - integrate: The COB package and surface - mount design enable it to be installed in limited space, which is very suitable for OEM integration into small devices such as portable pressure gauges and automotive on - board sensors.
  • Broad applicability: It is specially designed for non - corrosive gases, covering the pressure measurement needs of most common gas scenarios. Meanwhile, its wide operating voltage range allows it to match different power supply systems of electronic products.

Typical Application Scenarios:

  1. Automotive electronics: It is applied to tire pressure monitoring systems (TPMS) and intake pressure measurement modules of engines to provide real - time pressure data for vehicle operation safety.
  2. Consumer electronics: Used in household or portable air pumps, small pressure gauges, and altitude meters to realize accurate control and display of gas pressure.
  3. Measuring instruments: As a core sensing component of small pressure measuring instruments, it supports the development of low - cost and miniaturized pressure detection equipment.
Sensor Type Piezoresistive absolute pressure sensor
Measuring Range 350 kPa (inferred from the model, consistent with the XGZP131 series’ modular range design)
Pressure Type Absolute pressure
Accuracy 1% FS
Supply Voltage ≤15 VDC or ≤3.0 mADC
Output Signal MV level signal (unamplified output)
Operating Temperature -30℃ ~ +105℃
Measuring Medium Air or non - corrosive gases
Mounting Method Surface mount
Package Type COB package
