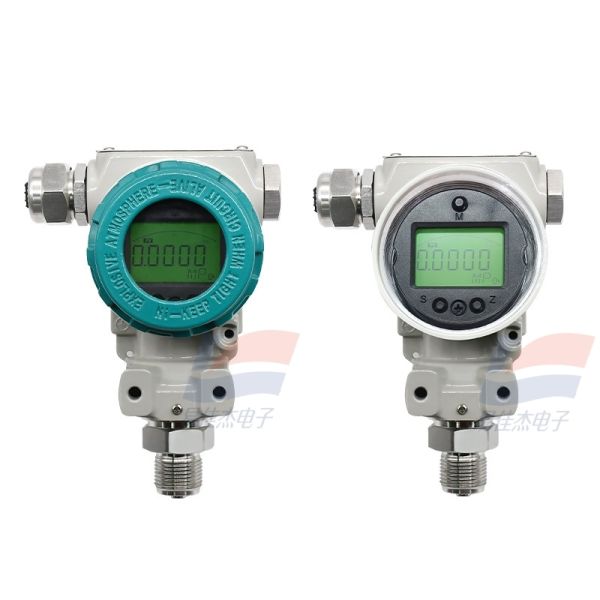

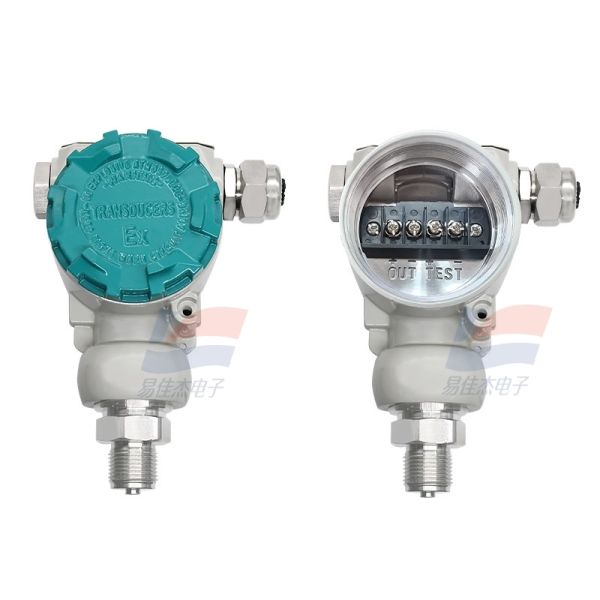

ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
Specifications
Model Number :
ACP03
Place of Origin :
CN
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Supply Voltage :
DC 24V
Zero Temperature Drift :
±0.02%FS/℃
Long-term Stability :
±0.1%FS/Year
Medium Temperature :
-40~+85℃
Housing Protection :
IP65
Sampling Rate :
1ms
Description

ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor

Product Overview:

The Autosen ACP03 pressure transmitter is an industrial-grade pressure measuring device designed for various industrial scenarios involving liquids and gases. It adopts advanced pressure sensing technology, which enables accurate conversion of pressure parameters into linear electrical signals. With excellent stability and environmental adaptability, the transmitter can meet the pressure monitoring needs of multiple fields such as general industrial control, fluid systems, and light chemical industry. It is a cost-effective and reliable pressure measurement solution for industrial production.

Application Scope:

This pressure transmitter is widely used in various industrial fields due to its stable performance and reliable protection. It can be applied to pressure monitoring of water supply and drainage systems, hydraulic and pneumatic systems in mechanical equipment, pressure detection of low-corrosivity fluid pipelines in light chemical industry, and pressure measurement in general process control links. It is especially suitable for industrial occasions that require medium-precision measurement and have certain requirements for environmental protection.

Parameter ACP03 Series Specs Parameter ACP03 Series Specs
Model ACP03 Series Model ACP03 Series
Non-linearity ±0.2%FS Repeatability ±0.1%FS
Zero Temperature Drift ±0.02%FS/℃ Sensitivity Temperature Drift ±0.03%FS/℃
Long-term Stability ±0.1%FS/Year Response Time ≤50ms
Medium Temperature -40~+85℃ Operating Temperature -40~+85℃
Housing Protection IP65 Overload Capacity 150%FS
Housing Material Cast Aluminum + SUS304 Gas-Contact Metal Material SUS304 + 316L
Product Weight Approx. 900g Pressure Type Gauge Pressure
Sampling Rate 1ms Resolution ≤14 Bits
Short-circuit Protection Yes Reverse Polarity Protection Yes
Load Capacity Current Output: Max. Load Impedance 800Ω; Voltage Output: Output Impedance ~5KΩ
Measuring Medium Oil, Water, Gas and Other Stainless Steel-Compatible Media

ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
