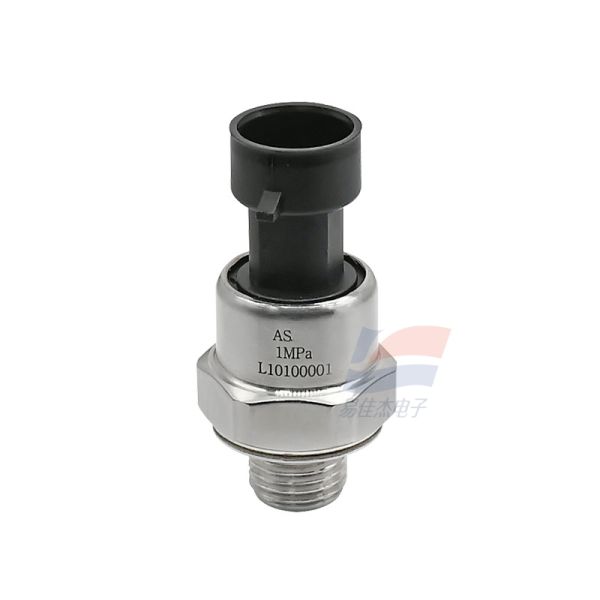

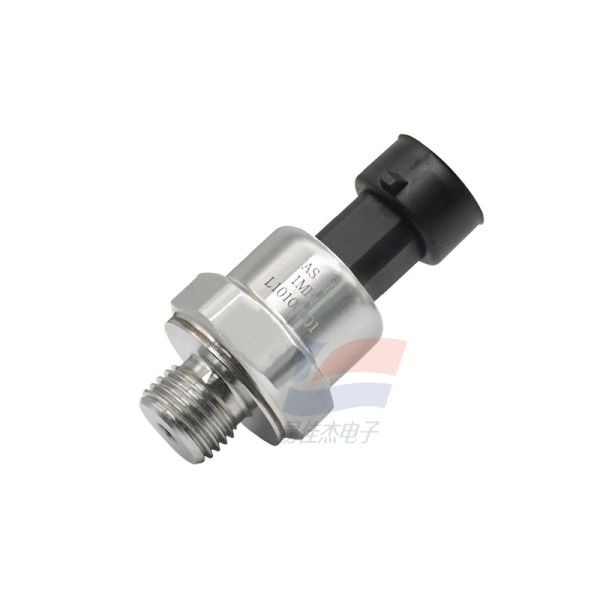

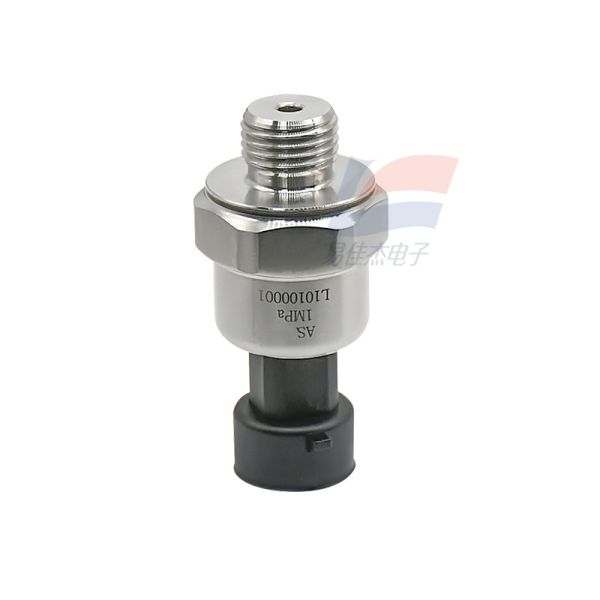

ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor
ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor
ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor
ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor
ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor
ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor
ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor
ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor
Specifications
Model Number :
ACP35
Place of Origin :
CN
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Supply Voltage :
4~20mA/10~32VDC; or 0.5~4.5VDC/5.0±0.5VDC
Operating Temperature :
-40~+135°C
Storage Temperature :
-40~+150°C
Response Time :
≤10ms
Resolution :
≤14 Bits
Pressure Type :
Gauge Pressure
Description

ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor

Applications:

The ACP35 series is widely used in industrial pressure monitoring scenarios, including:

  • Pressure detection of oil, water, and gas pipelines (compatible with stainless steel-compatible media);
  • Pressure control in pneumatic/hydraulic systems (e.g., mechanical equipment, automation production lines);
  • Pressure monitoring in general industrial process links (suitable for environments with temperature fluctuations between -40°C and +135°C).

Features:

  1. Flexible Power Supply

Supports dual power/output configurations (4~20mA/10~32VDC or 0.5~4.5VDC/5.0±0.5VDC) to adapt to different industrial control systems.

  1. Reliable Protection & Durability
    • Built-in short-circuit protection and reverse polarity protection to avoid damage from electrical faults;
    • High overload/burst capacity (up to 3X/5X of full scale) and SUS304/17-4PH stainless steel wetted parts ensure stability in harsh working conditions.
  2. High Performance
    • Fast response time (≤10ms) and 1ms sampling rate for real-time pressure monitoring;
    • ≤14-bit resolution ensures precise measurement data output.
  3. Wide Environmental Adaptability
    • Operates stably in a temperature range of -40°C to +135°C, with a total error band of only +2.0%F.S. in variable temperatures (-20°C~+85°C).
  4. Compact & Lightweight

The standard version weighs only ~50g, making it easy to install in space-constrained equipment.

Model ACP35 Series
Supply Voltage 4~20mA/10~32VDC; or 0.5~4.5VDC/5.0±0.5VDC
Accuracy ±0.5%F.S. or ±1%F.S. (linearity, hysteresis, repeatability, calibration) @25°C, static error band @25°C, 5.0VDC; total error band +2.0%F.S. (-20°C~+85°C)
Overload Capacity 3X (range 5bar~16bar), 2X (range 25~50bar)
Burst Capacity 5X (range 5bar~16bar), 3X (range 25~50bar)
Load Capacity Current output: Max. load impedance 800Ω; Voltage output: Output impedance ~5KΩ
Measuring Medium Oil, water, gas and other stainless steel-compatible media
Gas-Contact Metal Material SUS304/17-4PH stainless steel
Housing Material SUS304 (standard version)
Pressure Type Gauge Pressure
Operating Temperature -40~+135°C
Storage Temperature -40~+150°C
Response Time ≤10ms
Product Weight Approx. 50g (standard version)
Sampling Rate 1ms
Resolution ≤14 Bits
Short-Circuit Protection Yes
Reverse Polarity Protection Yes
