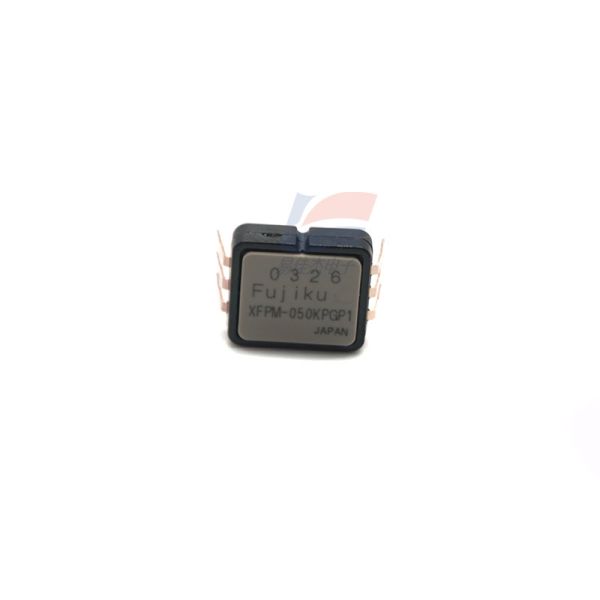

XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios
Specifications
Model Number :
XFPM-050KPGP1
Place of Origin :
Japan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Measurement Range :
0 - 50 kPa
Pressure Type :
Gauge Pressure
Output Signal :
Analog Output
Supply Voltage :
4.75V - 5.25V DC
Accuracy :
±1.0% FS
Response Time (T90) :
< 5 ms
Description

XFPM-050KPGP1 Compact Pressure Sensor Designed For Industrial And General-Purpose Pressure Measurement Scenarios

Key Features:

  1. Optimized for 0-50 kPa gauge pressure measurement, with high accuracy and low signal drift, ensuring reliable data output in long-term operation.
  2. Compact structural design enables easy integration into small-sized equipment or limited installation spaces.
  3. Wide operating temperature range (-40°C to +85°C) and IP65 protection level, adapting to harsh industrial environments with temperature fluctuations and slight moisture.
  4. Standard 4.75-5.25V DC power supply and analog output (0.5V-4.5V) facilitate direct connection with industrial controllers (PLCs) and data acquisition systems.
  5. Robust overpressure and burst pressure resistance (2X/3X FS) prevent sensor damage from accidental pressure spikes.

Typical Applications:

  • Suitable for industrial process control, such as air pressure monitoring in HVAC systems, fluid pressure detection in low-pressure pipelines, and gas pressure measurement in pneumatic systems.
  • Can be integrated into consumer electronics, medical auxiliary equipment (low-pressure monitoring scenarios), and environmental monitoring devices for real-time pressure data collection.
  • Ideal for automotive auxiliary systems, small household appliances, and other scenarios requiring compact, low-pressure, and high-reliability pressure sensing.

Sensor Type Piezoresistive Pressure Sensor
Measurement Range 0 - 50 kPa
Pressure Type Gauge Pressure (GP = Gauge Pressure)
Output Signal Analog Output
Supply Voltage 4.75V - 5.25V DC (Standard Power Supply)
Accuracy ±1.0% FS
Response Time (T90) < 5 ms (Fast response for real-time monitoring)
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +125°C
Overpressure 2× Full Scale (2X FS)
Burst Pressure 3× Full Scale (3X FS)
Housing Material Engineering Plastic + Stainless Steel (Wetted Part)
Interface/Pins Standard Pin Configuration (Compatible with PCB Mounting)
Life Expectancy > 10 million cycles
Protection Level IP65 (Typical, for harsh environment adaptation)
