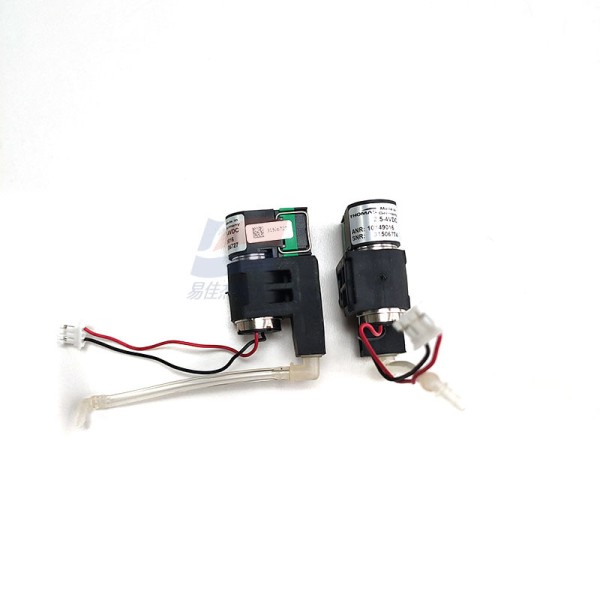

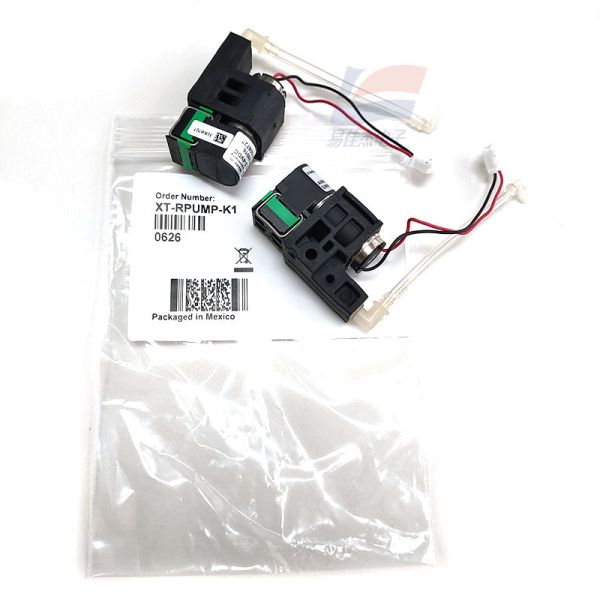

XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
Specifications
Payment Terms :
L/C, D/A, D/P, T/T, ,
Response Time :
≤200ms
Supply Ability :
5000PCS
Sensing Principle :
MEMS Piezoresistive Pressure Detection
Pressure Measuring Range :
-50 ~ +50kpa
Supply Voltage :
3.3 ~ 5.0 V DC
Detection Accuracy :
±1.5% Full Scale
Place of Origin :
Mexico
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Model Number :
XT-RPUMP-K1
MOQ :
1PCS
Resolution :
0.1kpa
Price :
Negotiable
Description

XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment

Features:

  • Professional Micro-pressure Detection: Optimized for micro air pump pressure characteristics, with ultra-high sensitivity to tiny positive and negative pressure fluctuations, realizing accurate micro-pressure capture.
  • MEMS High-stability Principle: Adopts mature MEMS piezoresistive sensing technology, featuring excellent pressure linearity, low temperature drift and negligible long-term drift.
  • Factory Pre-calibration: Uniform factory calibration and temperature compensation, no need for user secondary calibration, supporting plug-and-play rapid integration.
  • Fast Dynamic Response: Built-in high-speed signal processing unit, short response time, capable of tracking dynamic pressure changes of reciprocating micro pumps in real time.
  • Strong Anti-interference Performance: Integrated filtering and signal stabilization circuit, effectively resisting power supply ripple and electromagnetic interference, ensuring stable output in pneumatic equipment working environment.
  • Ultra-compact Integration Design: Miniature module size, lightweight structure, easy to embed in limited-space micro pump equipment without occupying extra structural space.
  • Low Power Consumption: Low-power circuit design, suitable for battery-powered portable pneumatic equipment and long-term continuous monitoring scenarios.
  • Standard Digital Output: Equipped with universal UART digital interface, compatible with mainstream MCU control systems, convenient for secondary development and closed-loop control logic deployment.

Applications:
  • Miniature electric air pump, micro vacuum pump real-time pressure monitoring and closed-loop control
  • Smart inflatable equipment, automatic inflator and pressure maintaining system detection
  • Portable negative pressure adsorption equipment, micro pneumatic executive module pressure feedback
  • Medical micro pneumatic instruments, laboratory small gas circuit pressure monitoring
  • Intelligent household pneumatic equipment, industrial miniature gas pressure detection terminals

Sensing Principle
MEMS Piezoresistive Pressure Detection
-
Detection Medium
Dry Air, Non-corrosive Gas
-
Pressure Measuring Range
-50 ~ +50
kPa
Detection Accuracy
±1.5% Full Scale
-
Resolution
0.1
kPa
Response Time
≤200
ms
Supply Voltage
3.3 ~ 5.0
V DC
Working Current
≤15
mA
Output Mode
UART Digital (9600bps, 8N1)
-
Operating Temperature
-10 ~ +60
℃
Operating Humidity
10% ~ 90% RH (Non-condensing)
-
Temperature Drift
≤0.05% FS/℃
-
Long-term Stability
≤±1% FS/Year
-
Calibration Mode
Factory Pre-calibrated + Built-in Temperature Compensation
-

XT-RPUMP-K1 High-precision Micro Integrated Pressure Sensor for Dedicated to Closed-loop Pressure Control and State Monitoring of Miniature Pumping Equipment
