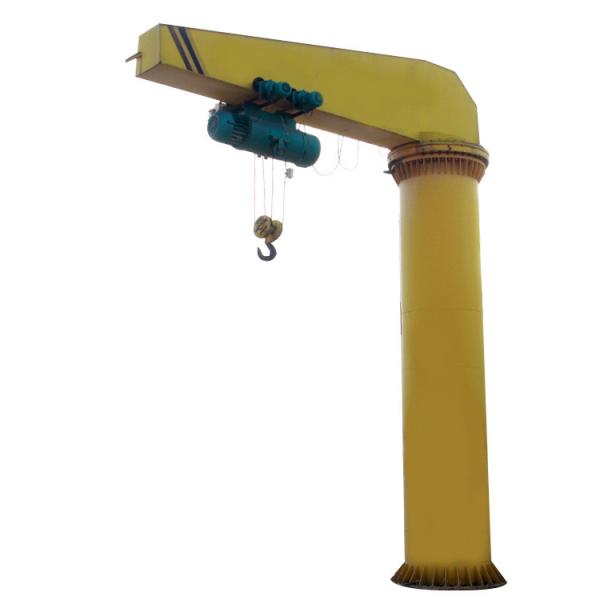

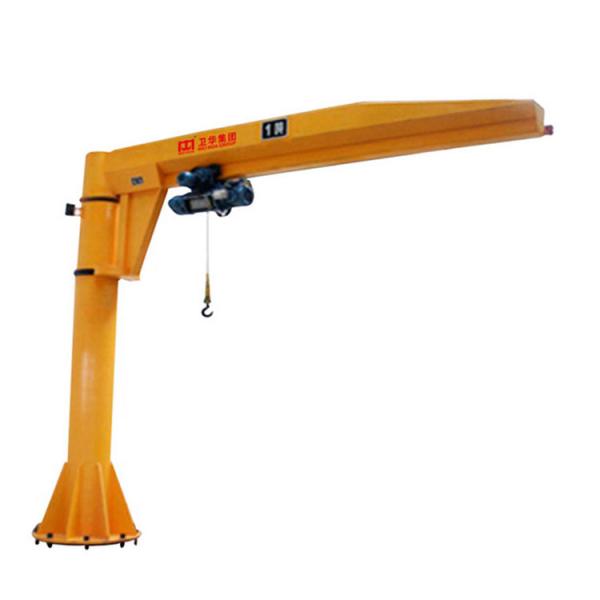

Pendant Control 5000kg 5 ton Column Jib Crane Small Footprint Easy To Use
Pendant Control 5000kg 5 ton Column Jib Crane Small Footprint Easy To Use
Pendant Control 5000kg 5 ton Column Jib Crane Small Footprint Easy To Use
Pendant Control 5000kg 5 ton Column Jib Crane Small Footprint Easy To Use
Specifications
Brand Name :
KORIG
Model Number :
BZ
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
2,500~25,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Set/Year
Delivery Time :
21 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Name :
5000 kg Floor Mounted Jib Crane
keywords :
Pendant Control Jib Crane
Lifting Capacity :
5000 kg
Lifting Speed :
8 m/min
Cross Traveling Speed :
20 m/min
Rotation Speed :
0.5 r/min
Control :
Pendant Control or Remote Control
Color :
As per your requirements
Description

Pendant Control 5000kg Column Jib Crane Small Footprint Easy To Use

Pendant Control Jib Crane Description

BZ-type pillar jib crane is a kind of small and medium-sized lifting equipment, the complete range is for loads up to 16 tonnes.
BZ can be operated freely in 3D space. So jib cranes are efficient partners performing their tasks reliably in factory.With their comprehensive product line of jib cranes, it offers flexible and cost efficient material handling solutions for any job in the workplace. Our Jib cranes can be individually tailored for your application.
with BZ jib cranes,the lifting is easier, more efficient and safer. Widely used in workshop, warehouse, dock and other fixed places.

Pendant Control Jib Crane Specification

Lifting Capacity t 1 2 3 5
Lifting Height m 5 5.5 5 5.5 4.5 5 4.5 5
Work Radius m 4 4.5 4 4.5 5 5.5 5 5.5
Crane Duty GB A3
Lifting Speed m/min 8
Traveling Speed m/min 20
Rotation Speed m/min 0.5
Rotation Angle ° 180, 270, 360, Adjustable

Environmental conditions


1.The power of the crane is three-phase AC, rated frequency of 50HZ, rated voltage of 380V.
2.The altitude of the crane installation site is less than 2000m.
3. Inflammable, explosive and corrosive gases are forbidden in the installation site of the crane.
4. The crane is not allowed to lift the molten metal, toxic and inflammable and explosive materials.

Pendant Control Jib Crane Characteristics

1. Suitable for short distance material handling

2. Efficient

3. Small footprint

4. Easy to use

5. Various types of lifting mechanisms(Electric Hoists)

Pendant Control Jib Crane Shpping Photos

Pendant Control 5000kg 5 ton Column Jib Crane Small Footprint Easy To Use

Pendant Control 5000kg 5 ton Column Jib Crane Small Footprint Easy To Use
