Specifications
Brand Name :
KORIG
Certification :
CE ISO
Place of Origin :
HENAN
MOQ :
1 set
Price :
＄1000-100000
Payment Terms :
L/C, T/T
Supply Ability :
100000set/year
Delivery Time :
30 days
Packaging Details :
1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as standard or as your requirements
Machinery Test Report: :
Provided
Core Components: :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Ge
Color: :
Clients' Requirments
Working Duty: :
A3-A6
Description

Lifting Height 2000 ~ 6000mm Column Mounted Jib Crane A3 - A6 Free Standing

Column Mounted Jib Crane Information


• Column cantilever crane is a kind of light and small lifting equipment. It has the advantages of novel structure, high efficiency,energy saving, time and labor saving, reasonable, simple, convenient operation, flexible rotation, and large working space.


• Random operation in the three-dimensional space, in short-distance and intensive transportation occasions, shows its superiority than other conventional lifting equipment, and is an energy-saving and efficient material lifting equipment. It can be widely used in fixed places such as workshop production lines, warehouses, and docks.

Column Mounted Jib Crane Parameter

Rated Capacity

t

0.5

1

2

3

5

10

Beam length

mm

2000~6000

Lifting height

mm

2000~6000

Lifting speed

m/min

8; 8/0.8

Travelling speed

m/min

10; 20

Turning speed

r/min

0.76

0.69

0.6

0.53

0.48

0.46

Turning degree

degree

360°

Duty Class

A3

Power source

3 Phase 380V 50Hz Customizable

Working temperature

-20~42°C

Control model

Pendant pushbutton control or remote control

Cantilever Jib Crane Features

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

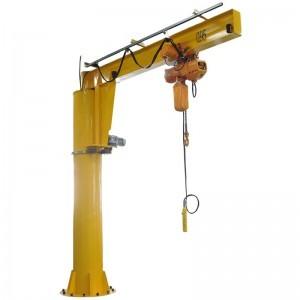

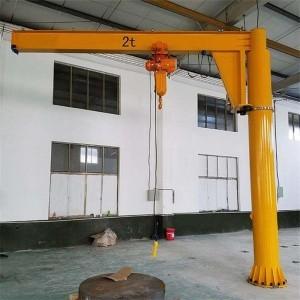

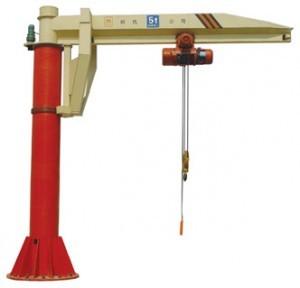

Column Mounted Jib Crane Image

Lifting Height 2000 ~ 6000mm Column Mounted Jib Crane A3 - A6 Free Standing
