2 Speed 360 Degree Swing Arm Lift Jib Crane Convenient Operation
2 Speed 360 Degree Swing Arm Lift Jib Crane Convenient Operation
2 Speed 360 Degree Swing Arm Lift Jib Crane Convenient Operation
2 Speed 360 Degree Swing Arm Lift Jib Crane Convenient Operation
2 Speed 360 Degree Swing Arm Lift Jib Crane Convenient Operation
2 Speed 360 Degree Swing Arm Lift Jib Crane Convenient Operation
Specifications
Brand Name :
KORIG
Model Number :
BZ
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
2,500~25,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Set/Year
Delivery Time :
21 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Name :
360 Degree Swing Arm Lift Jib Crane
keywords :
cantilever jib crane
Lifting Capacity :
10000 kg
Lifting Speed :
7/0.8 m/min
Cross Traveling Speed :
20 m/min
Rotation Speed :
0.5 r/min
Control :
Pendant Control or Remote Control
Color :
As per your requirements
Description

2 Speed 360 Degree Swing Arm Lift Jib Crane Convenient Operation

360 Degree Swing Arm Lift Jib Crane Description

1. jib crane is a crane which is used with PK type electric chain hoist or CD, MD type electric hoist. It consists of column, swing jib, electric hoist, drive device and electrical control system.

2.The bottom of column is fixed on the concrete foundation by the anchor bolts, driving device is driven by the motor to rotate swing jib, and the electric hoist reciprocates and runs on swing jib.


3.Workshop small hoist cantilever swing arm jib crane has the advantages of simple structure, convenient operation, small occupation space and large working range. widely used in machinery manufacturing, automotive, shipbuilding and other modern industrial production lines, assembly lines and warehouses, docks, laboratories and other materials handling operations. It Is an ideal lifting equipment for improving work efficiency and working conditions for the enterprise.

360 Degree Swing Arm Lift Jib Crane Specification

Lifting Capacity t 1 2 3 5
Lifting Height m 5 5.5 5 5.5 4.5 5 4.5 5
Work Radius m 4 4.5 4 4.5 5 5.5 5 5.5
Crane Duty GB A3
Lifting Speed m/min 8
Traveling Speed m/min 20
Rotation Speed m/min 0.5
Rotation Angle ° 180, 270, 360, Adjustable

360 Degree Swing Arm Lift Jib Crane Characteristics

1. Suitable for short distance material handling

2. Efficient

3. Small footprint

4. Easy to use

5. Various types of lifting mechanisms(Electric Hoists)

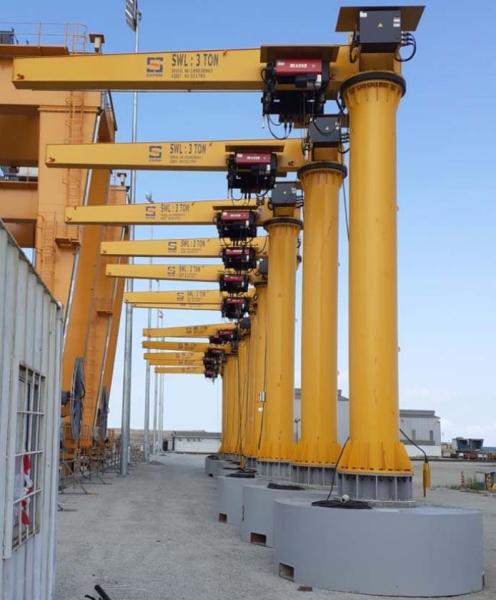

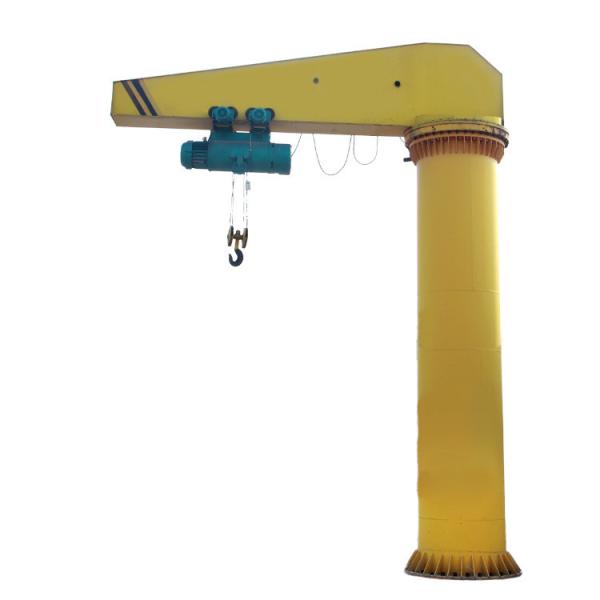

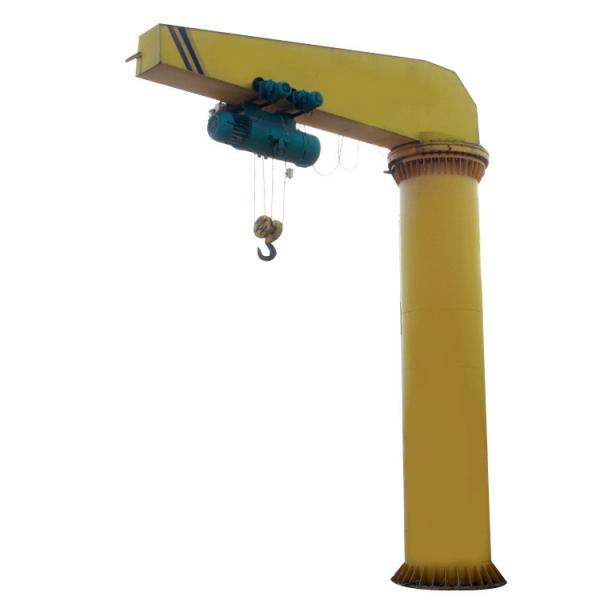

360 Degree Swing Arm Lift Jib Crane Photos

2 Speed 360 Degree Swing Arm Lift Jib Crane Convenient Operation
