Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook
Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook
Specifications
Brand Name :
KRG
Model Number :
MG
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
USD5000-USD50000
Supply Ability :
5000sets/per month
Delivery Time :
20-30 workdays
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
Name :
Double girder gantry crane
keywords :
Portal Gantry Crane
Application :
Outside
Color :
As client's demand
Work duty :
A5-A8
Main electrical parts :
Siemens, Schneider and CHINT
Lifting mechanism :
Wire Rope Electric Hoist Trolley
Warranty :
12 Months
Max. lifting height :
3~20M
Span :
18m-35m
Condition :
New
Feature :
Gantry Crane
Description

Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook

Travelling Portal Gantry Crane Description

MG double girder gantry crane with hook is composed of gantry,crane crab,trolley traveling mechanism,cab and electric control system. The gantry is of box-shaped structure ,Support legs can be customized according to customer requirements.

Travelling Portal Gantry Crane Technical Parameters

Capacity(t) Span (m) Lifting Height
(m)		 Work Duty Main Lifting Speed
(m/min)		 Aux Lifting Speed
(m/min)		 Crab Travelling Speed
(m/min)		 Trolley Travelling Speed
(m/min)		 Power (kw) Rail
5 18~26 10 A5 9.2 - 37.2 37.7 27.8 43kg/m
30~35 12
10 18~22 10 8.5 - 37.2 37.7 35.8
26 10 44.8
30~35 11
20/5 18~26 10 7.1 9.2 36.6 40.1 65
30~35 12 44 73
32/5 18~26 10 6.3 9.2 29.8 38 89
30~35 12 40 107
50/10 18~26 10 5.9 8.5 31 40.1 141.5 QU80
30~35 12 44 157.5
75/20 18~26 12 3.9 7.2 38.4 3.7~37 146
30~35
100/20 18~35 12 3.1 7.2 33.9 3.23~32.3 162
160/50 18~35 15 3.5 5.9 22.5 2.8~28 242 QU100
200/50 18~35 15 3.5 5.9 29 2.8~28 299
320/80 18~35 15 3.6 6 16.7 2.8~28 476 QU120
400/30 18 18 0.15~1.5 6 10 18 275
500/80 28.5 33 0.15~1.5 0.6~6 1.36~13.6 1.6~16 350
600/80 36 22 0.13~1.3 0.4~4 1.5~15 2.5~25 405
800/10 36 14 0.1~1 7 0.5~5 1~10 330

Travelling Portal Gantry Crane Features

1. Light duty single beam gantry crane

2. Lifting mechanism is electric trolley/hoist; it can equip with hook, bucket, grab, magnetic

chuck and other lifting tools!

3. Spare parts: It can equip with two hooks, one main hook and one secondary hook!

4. Beam: It is composed of bridge frame, trolley, cart operating mechanism and electric equipment.

The crane girder is produced without welding; it makes the beam much more strength!

5. Usage: It is applicable to transferring, assembling, check and repair as well as load and unload

various materials!

6. Note: It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

7. Operation: The operation of this crane is completed in driver's cabin, which has open type and closed type and an be installed on left or right side according to practical situation. The direction of entering the

gate has two forms, sideway and ends, in order to satisfy the user’s choice under different conditions.

8. Speed: There are three speeds: trolley lifting speed, trolley traveling speed, crane.

Advantages of Travelling Portal Gantry Crane

1. Flexible operation and easy maintenance.

2. Large loading capacity and high working efficiency.

3. wide span, high crane stability and reliability.

4. Novel structure,Advanced technology, delicate design, attractive appearance.

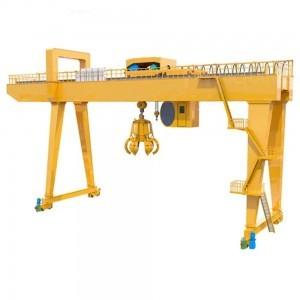

Travelling Portal Gantry Crane Images

Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook

Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook
