Specifications
Brand Name :
KRG
Model Number :
MG
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Set/Year
Delivery Time :
60 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Name :
50 Ton MG Type Double Girder Gantry Crane
keywords :
Double Girder A Frame Gantry Crane
Lifting Capacity :
100 ton
Span :
7.5~35 m
Lifting Height :
10 m
Lifting Speed :
0.2~2 m/min
Trolley Traveling Speed :
3.2~32 m/min
Crane Traveling Speed :
4~40 m/min
Material :
Q235 Q345
Control :
Cabin Control/Pendant Control/Remote Control
Description


100t MG Type Double Girder A Frame Gantry Crane With Electric Hoist 7.5m~35m Span

MG Type Double Girder Gantry Crane Description

Double Girder Gantry Crane is a lifting device used for cargo handling in outdoor places such as warehouse terminals, stations, and construction sites. Within the working radius, the gantry crane can lift, descend and move horizontally to carry out cargo lifting, which greatly reduces physical labor and improves work efficiency.

Double girder gantry crane can designed with cantilever or without cantilever. Reducer, motors and electrics adopt China or world famous brands such as Jiamusi, Nanjing motor, Schneider, Siemens, ABM, SEW etc.

MG Type Double Girder Gantry Crane Specification

Loading capacity

5 ~ 800t

Lifting height

3 ~ 30 m or customized

Lifting speed

Single speed: 3 ~ 8 m/min; or customized
Variable frequency speed: 1 ~ 20 m/min; or customized

Span

5~35 m

Lifting mechanism

Winch trolley or hoist trolley

Working class

A3 ~ A7

Working temperature

-20 ~ 40 ℃

Power supply

AC-3Phase-220//230380/400/415/440V-50/60Hz

Control voltage

DC-24 / 36V

Motor protection class

IP54 IP55 IP65

Control way

Ground handle control(Push button),wireless remote control,cabnient control

Safety device

Buffer,current overload protection,overload device,power failure protection

Application area

Factory,workshop,warehouse,power station,logstic,etc.

Painting color

Yellow,Red or Customzied


Process of Double Girder Gantry Crane

1. CNC cutting of girder web plate with high deflection accuracy.
2. Shot-blasting Sa2.5 for whole girder treatment after welding with stress release.
3. Epoxy zinc rich coating and painting with thickness 2x2 with 140μm.
4. 10.9 class bolts connect girders and legs.
5. Three-in-one motor reducer with vertical gear motor driving.
6. Motors with high protection class IP55, F class, 40% ED.
7. End carriage is equipped with anti-friction bearings, cellular rubber buffers, and derailment protectors.

MG Type Double Girder Gantry Crane Safety

Limit switch, overload protection, height limit device, voltage lower protection, phase sequence protection device, emergency stop, rain cover for outdoor hoisting trolley, driving units, electrical cable, warning indicator alarming, etc.

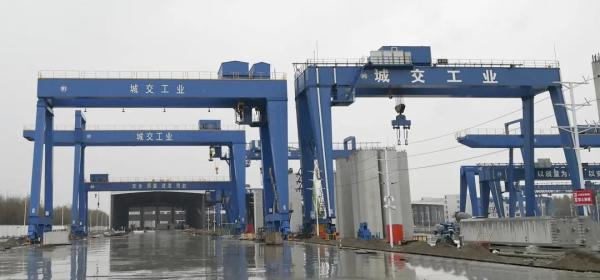

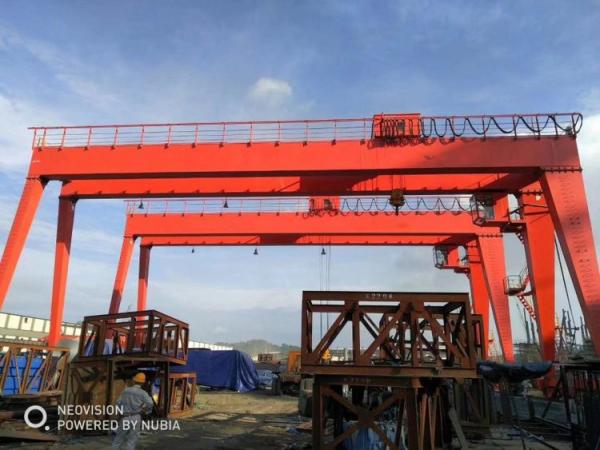

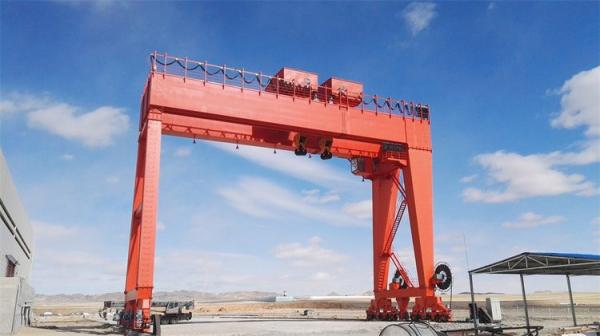

MG Type Double Girder Gantry Crane Images

100t MG Type Double Girder A Frame Gantry Crane With Electric Hoist 7.5m~35m Span
100t MG Type Double Girder A Frame Gantry Crane With Electric Hoist 7.5m~35m Span
100t MG Type Double Girder A Frame Gantry Crane With Electric Hoist 7.5m~35m Span
