Specifications
Brand Name :
KORIG
Model Number :
MZ
Certification :
CE ISO
Place of Origin :
HENAN
MOQ :
1 set
Price :
＄1000-100000
Payment Terms :
L/C, T/T
Supply Ability :
100000set/year
Delivery Time :
30 days
Packaging Details :
1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as standard or as your requirements
name :
MZ gantry crane
keywords :
double girder gantry crane with grab
capacity :
5~75/20t
span :
18~35m
Feature :
Gantry Crane
Warranty :
12 months
Lifting Height :
10~22m
work duty :
A5
Description

20t Industrial Gantry Crane With Grab

Double Girder Gantry Crane Features

1. The double beam welding structure is adopted to increase the working space and facilitate transportation, installation and maintenance.

2. The trolley adopts special-shaped steel rail cable conductive device.

3. Standardization, serialization and generalization of parts and components.

4. There are two types of crane power supply: cable reel type (divided into left and right ends) and sliding contact line type (divided into left and right ends), which can be selected by users.

5. The driver's cab has a wide field of vision, with a linkage console inside, which is flexible, stable and comfortable. Fans, heaters, air coolers, air conditioners, walkie-talkies, etc. can also be added according to user requirements.

Technical Parameters

Capactiy(t) Span (m) Lifting Height
(m)		 Work Duty Main Lifting Speed
(m/min)		 Aux Lifting Speed
(m/min)		 Crab Travelling Speed
(m/min)		 Trolley Travelling Speed
(m/min)		 Power (kw) Rail
5 18~26 10 A5 9.2 - 37.2 37.7 27.8 43kg/m
30~35 12
10 18~22 10 8.5 - 37.2 37.7 35.8
26 10 44.8
30~35 11
20/5 18~26 10 7.1 9.2 36.6 40.1 65
30~35 12 44 73
32/5 18~26 10 6.3 9.2 29.8 38 89
30~35 12 40 107
50/10 18~26 10 5.9 8.5 31 40.1 141.5 QU80
30~35 12 44 157.5
75/20 18~26 12 3.9 7.2 38.4 3.7~37 146
30~35
100/20 18~35 12 3.1 7.2 33.9 3.23~32.3 162
160/50 18~35 15 3.5 5.9 22.5 2.8~28 242 QU100
200/50 18~35 15 3.5 5.9 29 2.8~28 299
320/80 18~35 15 3.6 6 16.7 2.8~28 476 QU120
400/30 18 18 0.15~1.5 6 10 18 275
500/80 28.5 33 0.15~1.5 0.6~6 1.36~13.6 1.6~16 350
600/80 36 22 0.13~1.3 0.4~4 1.5~15 2.5~25 405
800/10 36 14 0.1~1 7 0.5~5 1~10 330

Components of Double Girder Gantry Crane

Double girder gantry crane consists of bridge, trolley, spreader, crane travelling mechanism and electrical system.

Application of Double Girder Gantry Crane

Double girder gantry crane is usually used to open warehouse or along rail for general material handling and lifting work, such as, freight yard or dock, etc.

Advantages of Double Girder Gantry Crane

  • Advanced technology, delicate design, attractive appearance

  • Novel structure, wide span, high crane stability and reliability

  • Large loading capacity and high working efficiency

  • Flexible operation and easy maintenance

  • Standardization, generalization and serialization of the spare parts.

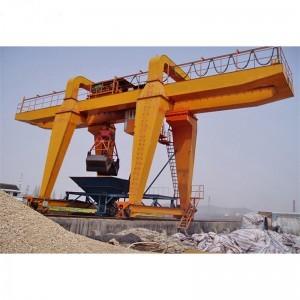

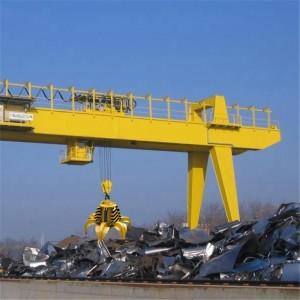

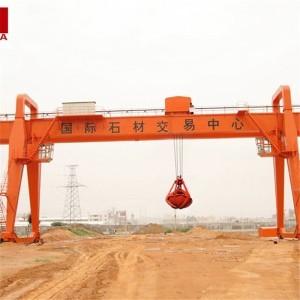

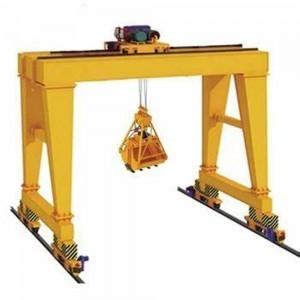

Double Girder Gantry Crane Images

20t Industrial Gantry Crane with grab
