Customized 60 Ton 80 Ton Steel Double Girder Gantry Crane With Mobile Trolley
Customized 60 Ton 80 Ton Steel Double Girder Gantry Crane With Mobile Trolley
Specifications
Brand Name :
KRG
Model Number :
MG
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
USD5000-USD50000
Supply Ability :
5000sets/per month
Delivery Time :
20-30 workdays
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
Name :
Double girder gantry crane
keywords :
gantry crane with trolley
Application :
Outside
Color :
As client's demand
Work duty :
A5-A8
Main electrical parts :
Siemens, Schneider and CHINT
Lifting mechanism :
Wire Rope Electric Hoist Trolley
Warranty :
1 Year
Max. lifting height :
32m
Span :
18m-35m
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Description

Customized 60 Ton 80 Ton Steel Double Girder Gantry Crane With Mobile Trolley

Steel Double Girder Gantry Crane Description

MG type double girder gantry crane composed of gantry, crane crab, trolley traveling mechanism, cab and electric control system, the gantry is box-shape structure, the track is at the side of each girder and the leg is divided into type A and type U according to user’s requirements. The control method could be ground control, remote control, cabin control or both, in the cab there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air condition, acoustic alarm and interphone which can be furnished as required by users. This double girder gantry crane is beautiful design and durable and widely using for open-air warehouse, of course, also can be used indoors, but please let us know the condition in your workshop, just tell us your demands, we can design the most suitable crane for you. Weihua crane is the top gantry crane manufacturers in China even in whole Asia.

Steel Double Girder Gantry Crane Technical Parameters

Capactiy(t) Span (m) Lifting Height
(m)		 Work Duty Main Lifting Speed
(m/min)		 Aux Lifting Speed
(m/min)		 Crab Travelling Speed
(m/min)		 Trolley Travelling Speed
(m/min)		 Power (kw) Rail
5 18~26 10 A5 9.2 - 37.2 37.7 27.8 43kg/m
30~35 12
10 18~22 10 8.5 - 37.2 37.7 35.8
26 10 44.8
30~35 11
20/5 18~26 10 7.1 9.2 36.6 40.1 65
30~35 12 44 73
32/5 18~26 10 6.3 9.2 29.8 38 89
30~35 12 40 107
50/10 18~26 10 5.9 8.5 31 40.1 141.5 QU80
30~35 12 44 157.5
75/20 18~26 12 3.9 7.2 38.4 3.7~37 146
30~35
100/20 18~35 12 3.1 7.2 33.9 3.23~32.3 162
160/50 18~35 15 3.5 5.9 22.5 2.8~28 242 QU100
200/50 18~35 15 3.5 5.9 29 2.8~28 299
320/80 18~35 15 3.6 6 16.7 2.8~28 476 QU120
400/30 18 18 0.15~1.5 6 10 18 275
500/80 28.5 33 0.15~1.5 0.6~6 1.36~13.6 1.6~16 350
600/80 36 22 0.13~1.3 0.4~4 1.5~15 2.5~25 405
800/10 36 14 0.1~1 7 0.5~5 1~10 330

Steel Double Girder Gantry Crane Feature

1) Reasonable structure

2) Favorable performance

3) Smooth starting and stopping

4) Safe and reliable traveling

5) Low noise, commodious cabin and good view

6) Convenient maintenance, excellent exchangeability for parts and components

7) Saves electricity specifications

Steel Double Girder Gantry Crane Safety device

  • Overload protection,
  • Main lifting motor with thermal protection,
  • Hooks with latch,
  • Rubber buffers
  • Protective earthing,
  • Crane switch and travel end switch,
  • Emergency switch can stop all movement when any dangerous happened,
  • Sub-assemblies characteristic are tested before assembly.
  • All cranes must be preassembled and tested before leaving factory and offer the certification of test.

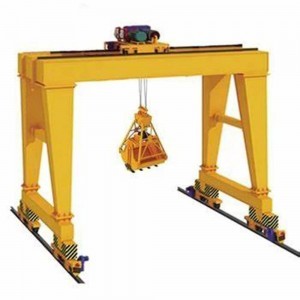

Steel Double Girder Gantry Crane Images

Customized 60 Ton 80 Ton Steel Double Girder Gantry Crane With Mobile Trolley

Customized 60 Ton 80 Ton Steel Double Girder Gantry Crane With Mobile Trolley
