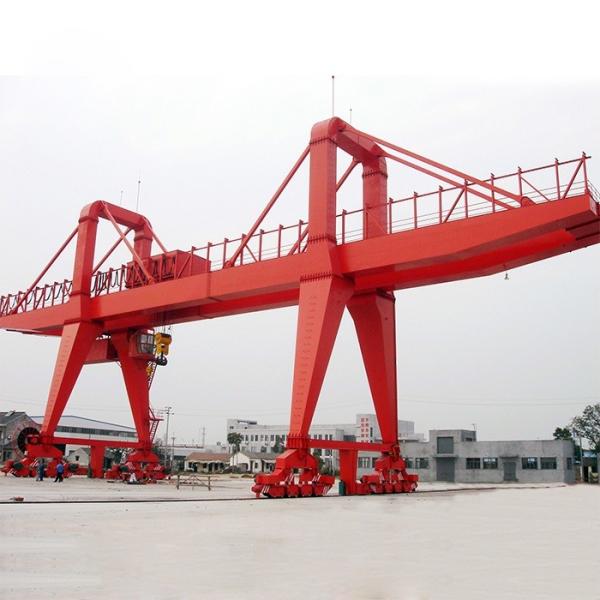

ISO Motorized Rail Mounted Gantry Crane 5- 50 Ton Container Gantry Crane
ISO Motorized Rail Mounted Gantry Crane 5- 50 Ton Container Gantry Crane
Specifications
Brand Name :
KRG
Model Number :
MG
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
USD5000-USD50000
Supply Ability :
5000sets/per month
Delivery Time :
20-30 workdays
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
Name :
Double girder gantry crane
keywords :
rail mounted gantry crane
capacity :
5~800/10 ton
Lifting Height :
10~22m
Work duty :
A5-A8
Color :
As client's demand
Main electrical parts :
Siemens, Schneider and CHINT
Lifting mechanism :
Wire Rope Electric Hoist Trolley
Condition :
New
Application :
Outside
Description

ISO Motorized Rail Mounted Gantry Crane 5- 50 Ton Container Gantry Crane

Rail Mounted Gantry Crane Description

This type of Gantry crane is General double girder gantry crane.

The rated lifting weight is 5~500 ton;

It can be with cantilever on both side of crane;

The working duty is heavy A5~A7 class (ISO);

Lifting hook can be grab, magnet, hanging-beam for special industry;

The ambient working temperature could be -40~50 degree;

Electrical part could be China brand and Europe brand, customers could tell us their choices.

Rail Mounted Gantry Crane Technical Parameters

Capactiy(t)

Span (m)

Lifting Height
(m)

Work Duty

Main Lifting Speed
(m/min)

Aux Lifting Speed
(m/min)

Crab Travelling Speed
(m/min)

Trolley Travelling Speed
(m/min)

Power (kw)

Rail

5

18~26

10

A5

9.2

-

37.2

37.7

27.8

43kg/m

30~35

12

10

18~22

10

8.5

-

37.2

37.7

35.8

26

10

44.8

30~35

11

20/5

18~26

10

7.1

9.2

36.6

40.1

65

30~35

12

44

73

32/5

18~26

10

6.3

9.2

29.8

38

89

30~35

12

40

107

50/10

18~26

10

5.9

8.5

31

40.1

141.5

QU80

30~35

12

44

157.5

75/20

18~26

12

3.9

7.2

38.4

3.7~37

146

30~35

100/20

18~35

12

3.1

7.2

33.9

3.23~32.3

162

160/50

18~35

15

3.5

5.9

22.5

2.8~28

242

QU100

200/50

18~35

15

3.5

5.9

29

2.8~28

299

320/80

18~35

15

3.6

6

16.7

2.8~28

476

QU120

400/30

18

18

0.15~1.5

6

10

18

275

500/80

28.5

33

0.15~1.5

0.6~6

1.36~13.6

1.6~16

350

600/80

36

22

0.13~1.3

0.4~4

1.5~15

2.5~25

405

800/10

36

14

0.1~1

7

0.5~5

1~10

330

Components of Double Girder Gantry Crane

Double girder gantry crane consists of bridge, trolley, spreader, crane travelling mechanism and electrical system.

Application of Double Girder Gantry Crane

Double girder gantry crane is usually used to open warehouse or along rail for general material handling and lifting work, such as, freight yard or dock, etc.

Advantages of Double Girder Gantry Crane

  • Advanced technology, delicate design, attractive appearance

  • Novel structure, wide span, high crane stability and reliability

  • Large loading capacity and high working efficiency

  • Flexible operation and easy maintenance

  • Standardization, generalization and serialization of the spare parts.

Double Girder Gantry Crane Details

ISO Motorized Rail Mounted Gantry Crane 5- 50 Ton Container Gantry Crane

ISO Motorized Rail Mounted Gantry Crane 5- 50 Ton Container Gantry Crane
