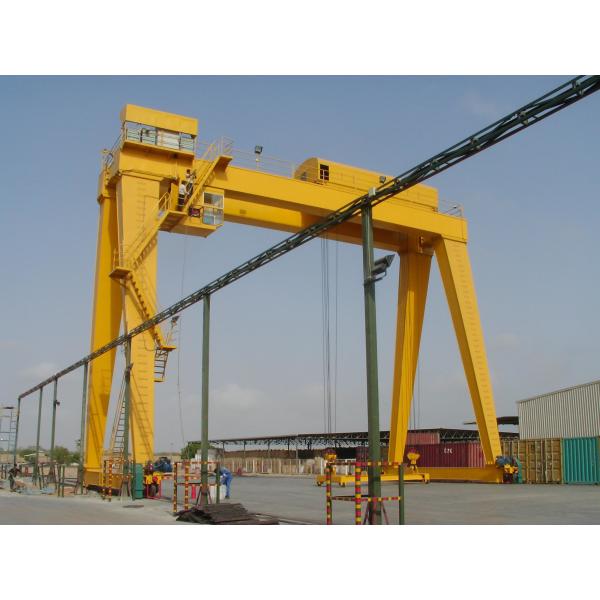

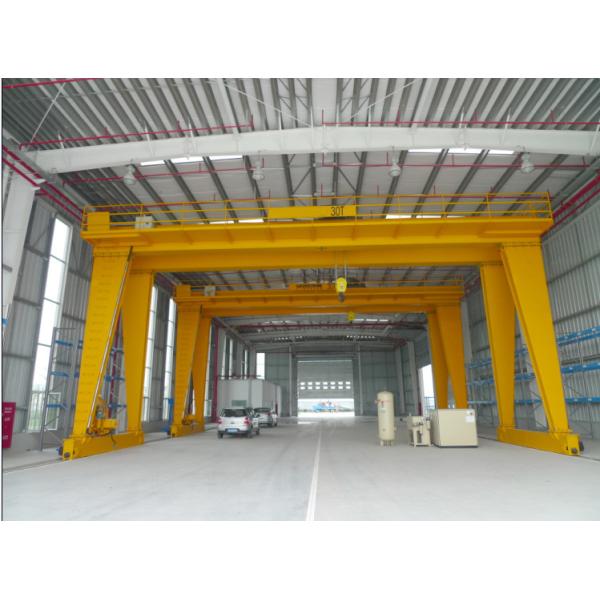

MG Type 200 ton 100 ton 50 ton Double Girder Gantry Crane AC380V 50Hz
MG Type 200 ton 100 ton 50 ton Double Girder Gantry Crane AC380V 50Hz
MG Type 200 ton 100 ton 50 ton Double Girder Gantry Crane AC380V 50Hz
MG Type 200 ton 100 ton 50 ton Double Girder Gantry Crane AC380V 50Hz
MG Type 200 ton 100 ton 50 ton Double Girder Gantry Crane AC380V 50Hz
MG Type 200 ton 100 ton 50 ton Double Girder Gantry Crane AC380V 50Hz
Specifications
Brand Name :
KORIGCRANES
Model Number :
MG
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 10,000~20,0000 /SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 set per month
Delivery Time :
30 working days
Packaging Details :
Main beams are packaged by plastic cloth; Electric parts are packaged by fumigation wooden box.
Type :
Double girder overhead crane
Core Components :
PLC, Engine, Bearing, Gearbox, Motor
Application :
Outdoor use
Warranty :
1 Year
Features :
Heavy duty, Flexible operation
Voltage :
380V 50Hz 3 phases or Customized
Color :
Customer Requirements
Lifting mechanism :
Electric Trolley
Main electrical :
Schneider
Working Duty :
A5-A7
Description

MG Type 200 Ton 100 Ton 50 Ton Double Girder Gantry Crane AC380V 50Hz

MG Type Double Girder Gantry Crane Information

Double Beam Gantry Crane is mainly made up of bridge, trolley, crane traveling mechanism and electric system; All the procedure are finished in the operating room.

This gantry crane is designed and manufactured according to GB/T 14406 "General gantry crane". Widely applies to the open warehouse or rail along for general handling and lifting work; it also can be equipped with many lifting device for special work; while prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations.

MG Type Double Girder Gantry Crane Technical Parameters

Capacity Main t 50 75 100 200 320 400 500
Aux 10 20 20 32 50 30 80
Span S(m) 30 35 40 16 22 18 18 28.5
Lifting height Main m Above rail max.22 22 16 12 13 18 3 3/10
Aux Above rail max.24 17.5 13 14 20.0 34.0
Lifting speed Main m/min 7.68 6.25 4.62 0.2-1.8 0.14-1.4 0.15-1.5 0.15-1.5
Aux 19.8 9.28 9.28 6 7.5 6 0.6-6
Trolley speed m/min 38.6 38.9 13.1 20 7 10 1.36-13.6
Crane speed m/min 42.7 17.8 16 17 18 1.6-16
Work duty A5 A5 A5 A5 A5 A5 A5
Track QU 80 QU 100 QU 120

MG Type Double Girder Gantry Crane Features

* Heavy loading, wide span, the whole crane stable and variety.
* The machine with novel structure, attractive appearance, advanced technology.
* Flexible operation, safe and reliable.
* The spare parts are standardization, generalization and serialization.

MG Type Double Girder Gantry Crane Main Body


* Double girder, welded box beams, the camber line is according to national standard.
* High safety, high steel degree
* Adopts high quality carbon steel, Q235B or Q345B.
* The main weld is by submerged arc welding automatic welding, nondestructive flaw detection
* The end truck adopts 10.9 high strength bolt connection.
* The crane traveling mechanism adopts separated driving, and it can use trinity drive too, safe and reliable.
* End beam equipped with buffer block, orbital cleaning device.

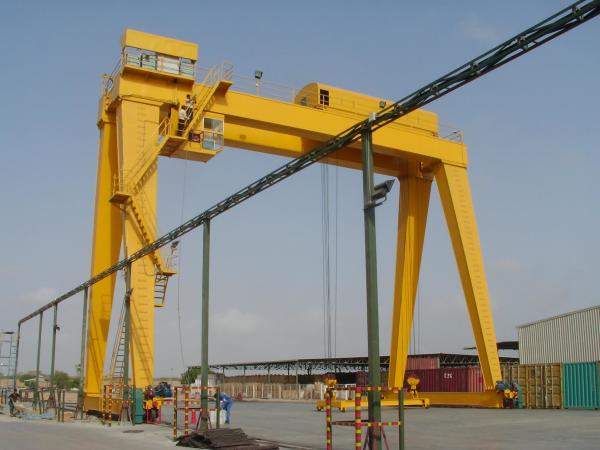

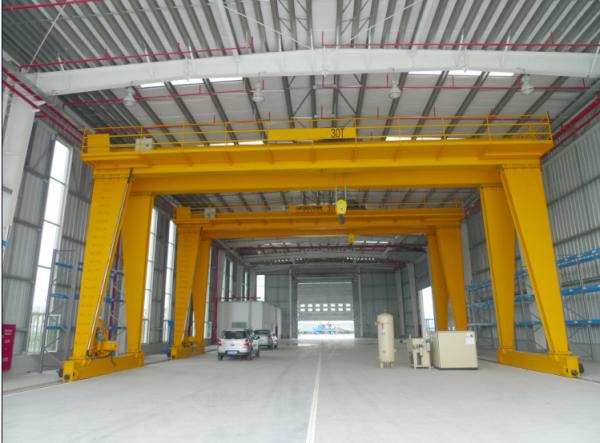

MG Type Double Girder Gantry Crane Details

MG Type 200 ton 100 ton 50 ton Double Girder Gantry Crane AC380V 50HzMG Type 200 ton 100 ton 50 ton Double Girder Gantry Crane AC380V 50Hz
