100 Ton 200 Ton Large Double Girder Gantry Crane for Outside U Shape 3.5m/Min
100 Ton 200 Ton Large Double Girder Gantry Crane for Outside U Shape 3.5m/Min
Specifications
Brand Name :
KRG
Model Number :
MG
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
USD5000-USD50000
Supply Ability :
5000sets/per month
Delivery Time :
20-30 workdays
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
Payment Terms :
L/C, T/T, Western Union
Name :
Double girder gantry crane
Work duty :
A5-A8
Span :
18~32m
Lifting mechanism :
Wire Rope Electric Hoist Trolley
capacity :
5~800/10t
Main electrical parts :
Siemens, Schneider and CHINT
Application :
Outside
Type :
U shape
Color :
Customized
Keywords :
large double girder gantry crane
Description

U Shape 20 ton 100 ton 200 ton Rail Mobile Double Beam loading Gantry Crane

Double Girder Gantry Crane Description

Rated lifting capacity from 5 to 500 tons; Cranes can be equipped with jibs on both sides; Heavy duty A5 to A7 (ISO) working loads; Hooks can be grabs, magnets, lifting girders for special industries; Ambient working temperature from -40 to 50 degrees; Electrical parts are available in both Chinese and European brands, and you can tell us about your choices.

Double Girder Gantry Crane Technical Parameters

Capacity(t)

Span (m)

Lifting Height
(m)

Work Duty

Main Lifting Speed
(m/min)

Aux Lifting Speed
(m/min)

Crab Travelling Speed
(m/min)

Trolley Travelling Speed
(m/min)

Power (kw)

Rail

5

18~26

10

A5

9.2

-

37.2

37.7

27.8

43kg/m

30~35

12

10

18~22

10

8.5

-

37.2

37.7

35.8

26

10

44.8

30~35

11

20/5

18~26

10

7.1

9.2

36.6

40.1

65

30~35

12

44

73

32/5

18~26

10

6.3

9.2

29.8

38

89

30~35

12

40

107

50/10

18~26

10

5.9

8.5

31

40.1

141.5

QU80

30~35

12

44

157.5

75/20

18~26

12

3.9

7.2

38.4

3.7~37

146

30~35

100/20

18~35

12

3.1

7.2

33.9

3.23~32.3

162

160/50

18~35

15

3.5

5.9

22.5

2.8~28

242

QU100

200/50

18~35

15

3.5

5.9

29

2.8~28

299

320/80

18~35

15

3.6

6

16.7

2.8~28

476

QU120

400/30

18

18

0.15~1.5

6

10

18

275

500/80

28.5

33

0.15~1.5

0.6~6

1.36~13.6

1.6~16

350

600/80

36

22

0.13~1.3

0.4~4

1.5~15

2.5~25

405

800/10

36

14

0.1~1

7

0.5~5

1~10

330

Double Girder Gantry Crane Features

1. The double beam welding structure is adopted to increase the working space and facilitate transportation, installation and maintenance. 2. The trolley adopts special-shaped steel rail cable conductive device. 3. Standardization, serialization and generalization of parts and components. 4. There are two types of crane power supply: cable reel type (divided into left and right ends) and sliding contact line type (divided into left and right ends), which can be selected by users. 5. The driver's cab has a wide field of vision, with a linkage console inside, which is flexible, stable and comfortable. Fans, heaters, air coolers, air conditioners, walkie-talkies, etc. can also be added according to user requirements.

Components of Double Girder Gantry Crane

Double girder gantry crane consists of bridge, trolley, spreader, crane travelling mechanism and electrical system.

Application of Double Girder Gantry Crane

Double girder gantry crane is usually used to open warehouse or along rail for general material handling and lifting work, such as, freight yard or dock, etc.

Advantages of Double Girder Gantry Crane

  • Advanced technology, delicate design, attractive appearance

  • Novel structure, wide span, high crane stability and reliability

  • Large loading capacity and high working efficiency

  • Flexible operation and easy maintenance

  • Standardization, generalization and serialization of the spare parts.

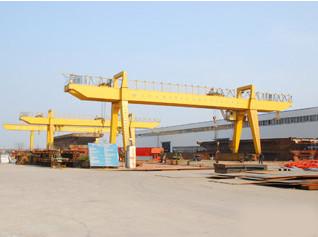

Double Girder Gantry Crane Images

100 Ton 200 Ton Large Double Girder Gantry Crane for Outside U Shape 3.5m/Min

100 Ton 200 Ton Large Double Girder Gantry Crane for Outside U Shape 3.5m/Min
