50T 2 Hooks Gantry Overhead Crane Cabin Control Pendant Control
50T 2 Hooks Gantry Overhead Crane Cabin Control Pendant Control
50T 2 Hooks Gantry Overhead Crane Cabin Control Pendant Control
50T 2 Hooks Gantry Overhead Crane Cabin Control Pendant Control
Specifications
Brand Name :
KRG
Model Number :
MG
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Set/Year
Delivery Time :
60 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Name :
50 Ton MG Type Double Girder Gantry Crane
keywords :
2 Hooks Gantry Overhead Crane
Lifting Capacity :
50 ton
Span :
7.5~35 m
Lifting Height :
10 m
Lifting Speed :
0.4~4 m/min
Trolley Traveling Speed :
3.2~32 m/min
Crane Traveling Speed :
4~40 m/min
Material :
Q235 Q345
Control :
Cabin Control/Pendant Control/Remote Control
Description

50T 2 Hooks Gantry Overhead Crane Cabin Control Pendant Control

Double Girder Gantry Crane Description

Double Girder Gantry Crane is a commonly seen equipment for heavy stuff handling outdoors at freight yard for example. Gantry Crane normally has 2 hooks: main hook and auxiliary hook. The legs of double girder gantry crane can be A type and U type. A type leg steel structure is made of Q235B/Q345B carbon steel with seamless one-time forming technology, thus it is strong and adapt to adverse weather conditions. U type leg steel structure offers more space and fit for conveying larger products.

Double girder gantry crane can designed with cantilever or without cantilever. Reducer, motors and electrics adopt China or world famous brands such as Jiamusi, Nanjing motor, Schneider, Siemens, ABM, SEW etc.

Double Girder Gantry Crane Parameter

Rated load/ton

50/10

Span/m

18~35m

Lifting height/m

10(main)/12(aux)

Working class

A5

Lifting speed/m/min

5.9(main)/10.4(aux)

Trolley running speed/m/min

36

Crane running speed/m/min

38.5

Power Supply

3-phase A.C. 50Hz 380V

Process of Double Girder Gantry Crane

1. CNC cutting of girder web plate with high deflection accuracy.

2. Shot-blasting Sa2.5 for whole girder treatment after welding with stress release.

3. Epoxy zinc rich coating and painting with thickness 2x2 with 140μm.

4. 10.9 class bolts connect girders and legs.

5. Three-in-one motor reducer with vertical gear motor driving.

6. Motors with high protection class IP55, F class, 40% ED.

7. End carriage is equipped with anti-friction bearings, cellular rubber buffers, and derailment protectors.

Safety

Limit switch, overload protection, height limit device, voltage lower protection, phase sequence protection device, emergency stop, rain cover for outdoor hoisting trolley, driving units, electrical cable, warning indicator alarming, etc.

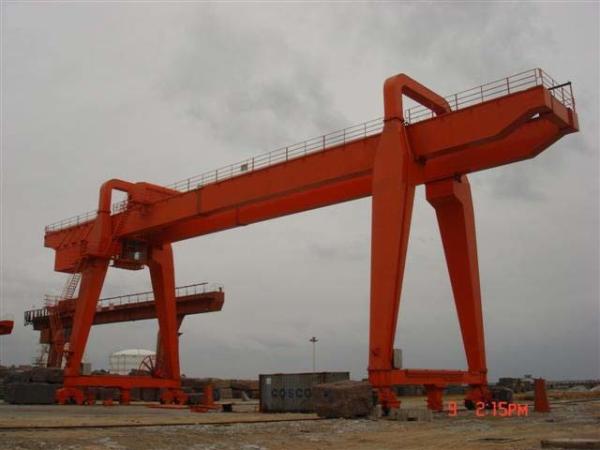

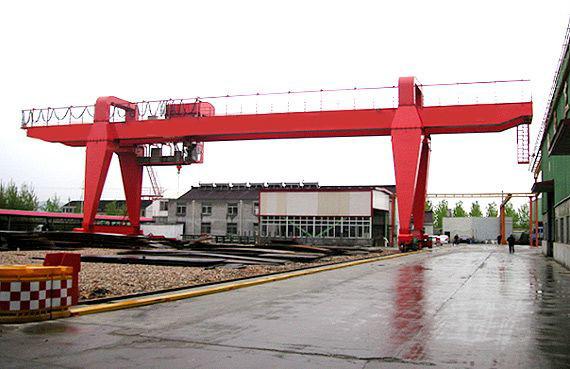

Double Girder Gantry Crane Images

50T 2 Hooks Gantry Overhead Crane Cabin Control Pendant Control

50T 2 Hooks Gantry Overhead Crane Cabin Control Pendant Control

50T 2 Hooks Gantry Overhead Crane Cabin Control Pendant Control
