Customized MZ Type Double Girder Goliath Gantry Crane 20 Ton With Grab
Customized MZ Type Double Girder Goliath Gantry Crane 20 Ton With Grab
Customized MZ Type Double Girder Goliath Gantry Crane 20 Ton With Grab
Customized MZ Type Double Girder Goliath Gantry Crane 20 Ton With Grab
Specifications
Brand Name :
KORIGCRANES
Model Number :
MG
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 10,000~20,0000 /SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 set per month
Delivery Time :
30 working days
Packaging Details :
Main beams are packaged by plastic cloth; Electric parts are packaged by fumigation wooden box.
keywords :
A3-A8 Double Girder Goliath Crane
Type :
Gantry Crane
Capacity :
5-350t
Lifting height :
6-30m
Span :
18m-35m
Condition :
New
Working class :
A3-A8
Control method :
Cabin Control and remote control
Traveling speed :
30-40m/min
OEM :
YES
Description

Customized MZ Type Double Girder Goliath Gantry Crane 20 Ton With Grab

Double Girder Goliath Crane Information

Double Girder Gantry Crane is widely used in open warehoused, material stocks area, cementplant, granite industry, port,the freight yard, windy areas and other outwork places to lifting and loading unloading goods, or working together with other lifting tools for special purpose.

MG double girder gantry crane with hook is composed of gantry,crane crab,trolley traveling mechanism,cab and electric control system. The gantry is of box-shaped structure ,Support legs can be customized according to customer requirements.

Double Girder Goliath Crane Main specifications

Capacity T 50/10 75/20 100/20
Span m 7.5~31.5
Lifting height Main hook m 12 20 22
Aux.hook m 16 22 22
Operation method Pendent control,wireless control,cabin control
Speed Lifting Main hook m/min 5.9 5.5 3.53
Aux.hook m/min 13.2 9.23 7.2
Cross travel m/min 38.5 38.4 33.86
Long travel m/min 74.6 65 65.6
Lifting mechanism type electric winch cart
Working duty A5,A6,A7
Power supply AC 220/380/400/415/460V,50/60Hz, 3P

Advantages of Double Girder Gantry Crane

1.Flexible operation and easy maintenance.

2.Large loading capacity and high working efficiency.

3.wide span, high crane stability and reliability.

4.Novel structure,Advanced technology, delicate design, attractive appearance.

Protection Devices Of Double Girder Goliath Crane

*Preventing hook clashing the top, set shields and barriers

*Circuit self-test protection device,Running the travel limit

*Protecting the current lacking of any phase.

*Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.

*Anti-collision, sound and light alarm devices.

*Equipped with rail clamp.

*Lifting weight limitation, height limitating, rail clamping device

*Speeding protection, zero pressure protection, the lightning protection

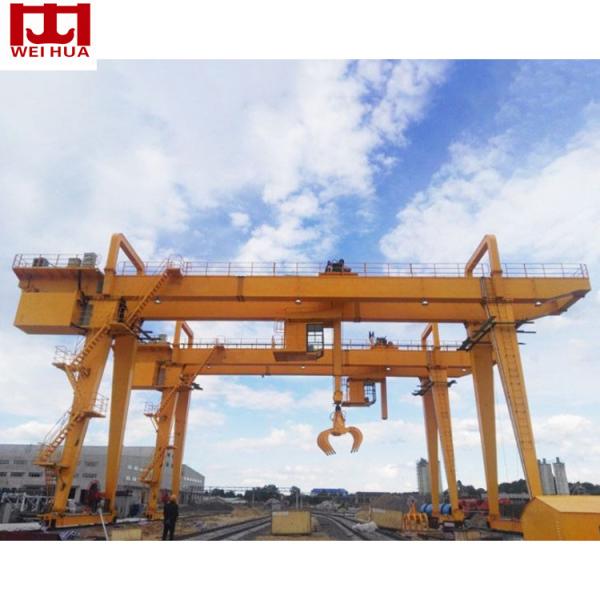

Double Girder Goliath Crane Images

Customized MZ Type Double Girder Goliath Gantry Crane 20 Ton With Grab
