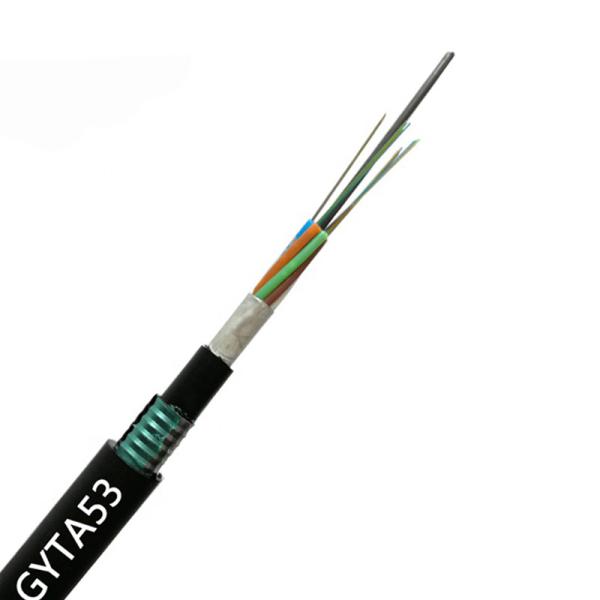

Direct Burial GYTA53 Multimode Underground Fiber Optic Cable 250um
Direct Burial GYTA53 Multimode Underground Fiber Optic Cable 250um
Direct Burial GYTA53 Multimode Underground Fiber Optic Cable 250um
Direct Burial GYTA53 Multimode Underground Fiber Optic Cable 250um
Direct Burial GYTA53 Multimode Underground Fiber Optic Cable 250um
Direct Burial GYTA53 Multimode Underground Fiber Optic Cable 250um
Specifications
Price :
USD 0.69-0.71 / kilometers
Supply Ability :
100,000 cores
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Model NO. :
direct burial fiber optic cable
Delivery :
FOB
Minimum order quantity :
3000 kilometers
Country of Origin :
Shenzhen
Description

Direct-burial GYTA53 Fiber Optic Cable 24 Cores Underground Cable

Description

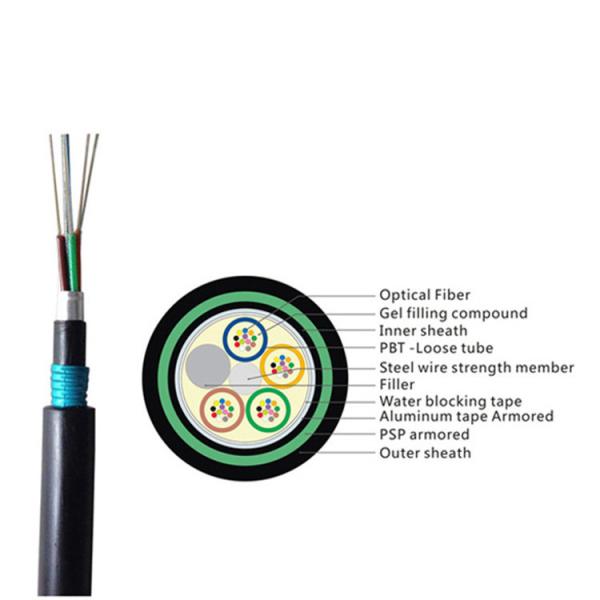

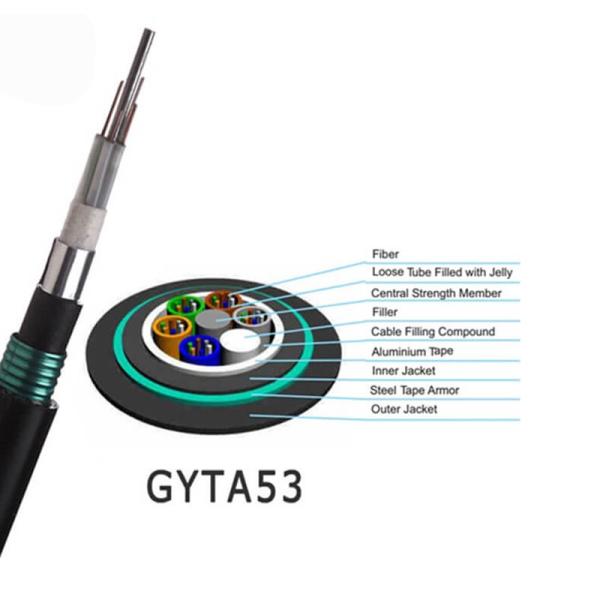

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Features

  • Good mechanical and temperatureperformance
  • High strength looes tube that is hydrolysisresistant
  • Special tube filling compound ensure a critical protection offiber
  • Crush resistance andflexibility
  • The following measures are taken to ensure the cablewatertight:
  • Steel wire used as the central strength member
  • Loose tube fillingcompound
  • 100% cable corefilling
  • APL moisture barrie
  • PSP enhancingmoisture-proof
  • Water-blockingmateria

Standards

GYTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Optical Characteristics
G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm

≤0.36

dB/km

≤0.40

dB/km
@1550nm

≤0.22

dB/km

 ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm

≥1000

MHz·km

 ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA

Cable Cut-off Wavelength

λcc

 ≤1260nm ≤1480nm

Technical Parameters
Cable Type Fiber Count Tubes Fillers Cable Diameter mm Cable Weight kg/km Tensile Strength Long/Short Term N Crush Resistance Long/Short Term N/100mm

Bending Radius Static

/Dynamic

mm
GYTA53-8~12 8~12 2 4 12.6 209 1000/3000 1000/3000 10D/20D
