FTTH 1 Core Fiber Optic Cable 500m 5.0mm Double Sheath 4.6mm 6.0 G657A2
FTTH 1 Core Fiber Optic Cable 500m 5.0mm Double Sheath 4.6mm 6.0 G657A2
FTTH 1 Core Fiber Optic Cable 500m 5.0mm Double Sheath 4.6mm 6.0 G657A2
FTTH 1 Core Fiber Optic Cable 500m 5.0mm Double Sheath 4.6mm 6.0 G657A2
FTTH 1 Core Fiber Optic Cable 500m 5.0mm Double Sheath 4.6mm 6.0 G657A2
FTTH 1 Core Fiber Optic Cable 500m 5.0mm Double Sheath 4.6mm 6.0 G657A2
FTTH 1 Core Fiber Optic Cable 500m 5.0mm Double Sheath 4.6mm 6.0 G657A2
FTTH 1 Core Fiber Optic Cable 500m 5.0mm Double Sheath 4.6mm 6.0 G657A2
Specifications
Model Number :
cable fiber optic
Place of Origin :
Guangdong, China
Brand Name :
Skylynn
Certification :
CE/ROHS/ISO9001
Packaging Details :
wooden reel.
Supply Ability :
500 Roll/Rolls per Day
MOQ :
10 rolls
Price :
$35.00 - $105.00/rolls
Type :
Fiber Optic Cable
Warranty Time :
30 years
Network :
Wired LAN
Product name :
cable fiber optic
Fiber Count :
1~4 core
Application :
Aerial
Fiber type :
G657A2
Jacket :
LSZH
diameter :
4mm~6mm
Weight :
15~30kg
Color :
Black+White
Wavelength :
1310/1550nm
Description

FTTH 1 core fiber optic cable 500m 5.0mm double sheath 4.6mm 6.0 G657A2

Product Description
Double Sheathed drop cable is a multi-purpose drop cable enabling simple, dast and reliable outdoor-indoor transitions. With a rugged and watertight construction, the double sheathed drop cable offers high mechanical performances. This optical cable is designed for artial roll-outs(spans up to 70m), but it can also be pulled into ducts, on several hundred meters.
Offering a double sheathed construction, the cable drop range presents twp ripcords enabling to strip off the HDPE outer sheath in a couple of seconds. Thanks to this operation a Low Smoke Zero Halogen Flame Retardant drop cable can be then used for indoor applications.
No splice is thus required to make the transition between the outdoor optical drop and the indoor one. The cable enables the transmission of optical signal from an outdoor distribution point to a telecommunications outlet without weighing down the optical budget.

Features & Benefits:
• Enables simple, fast and reliable outdoor-indoor transitions;
• One drop for aerial, duct and indoor FTTH installations;
• Wide operating temperature range;
• Integrated in a comprehensive FTTH solution including aerial & fecade
hardware and transition box, customer terminal box, fibre distribution box and
optical telecommunications outlets.
Specification:
Fibre type
Fully compliant with G657A1/A2 ITU
recommendations
Fibre cores
1FO
 2FO 4FO

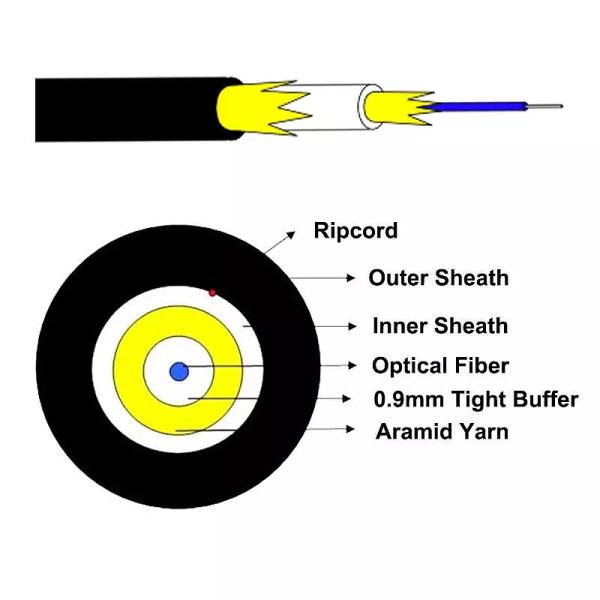

Buffer
900µm micro-bundle
Diameter
 3mm/4.5mm/6mm
Weight
29kg/km
30kg/km
Outer Sheath Material
HDPE Black RAL 9005
Inner Sheath Material
LSZH-FR White RAL 9010
Cable Reinforcement
Aramid yarns, 2FRP cores


Packing:
Description
Package
1FO outdoor/indoor drop cable
500meters per drum
2FO outdoor/indoor drop cable
4FO outdoor/indoor drop cable
FTTH 1 Core Fiber Optic Cable 500m 5.0mm Double Sheath 4.6mm 6.0 G657A2
