GYFTA53 Pre Terminated Fiber Optic Outdoor Optical Fiber Cable 250μM 3DB
GYFTA53 Pre Terminated Fiber Optic Outdoor Optical Fiber Cable 250μM 3DB
GYFTA53 Pre Terminated Fiber Optic Outdoor Optical Fiber Cable 250μM 3DB
GYFTA53 Pre Terminated Fiber Optic Outdoor Optical Fiber Cable 250μM 3DB
GYFTA53 Pre Terminated Fiber Optic Outdoor Optical Fiber Cable 250μM 3DB
GYFTA53 Pre Terminated Fiber Optic Outdoor Optical Fiber Cable 250μM 3DB
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
GYFTA53
Delivery :
FOB
Description

Outdoor Underground Directly Burried Stranded Loose Tube Cable GYFTA53

Description

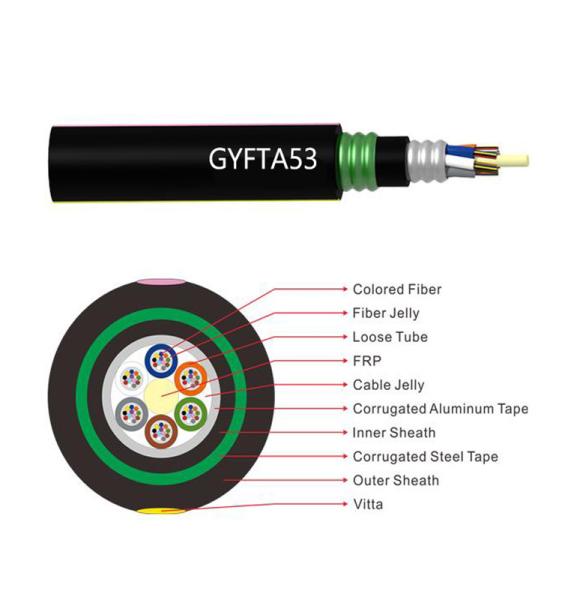

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features and Benefits
• Good mechanical and temperature performance
• Stranded loose tube improves the tensile strength
• Metal strength member provides excellent strain performance
• Double-jacket structure enusres moisture resistance and crush resistance
• Steel tape and aluminum tape enhances water-blocking & moisture-proof performancePE or AT sheath ensures safety of cable in high voltage environment


Application
• Used for duct and buried laying method
• Adopted to outdoor distribution
• Specially used where good mechanical performance and rodent resistance are expected

Optical Characteristic

　

G.652

G.655

50/125μm

62.5/125μm

Attenuation

@850nm

　

　

≤3.0 dB/km

≤3.0 dB/km

(+20℃)

@1300nm

　

　

≤1.0 dB/km

≤1.0 dB/km

　

@1310nm

≤0.36 dB/km

≤0.40 dB/km

　

　

　

@1550nm

≤0.22 dB/km

≤0.23dB/km

　

　

Bandwidth (Class A)

@850nm

　

　

≥500 MHz·km

≥200 MHz·km

@1300nm

　

　

≥1000 MHz·km

≥600 MHz·km

　

Numerical Aperture

　

　

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm

　

　

Technical Parameters

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter mm

Cable Weight Kg/km

Tensile Strength Long/Short Term N

Crush Resistance Long/Short Term N/100m

Bending Radius Static/Dynamic mm

GYFTY53-2~6

2~6

1

5

14.5

209

1000/3000

1000/3000

10D/20D

GYFTY53-8~12

8~12

2

4

14.5

209

1000/3000

1000/3000

10D/20D

GYFTY53-14~18

14~18

3

3

14.5

209

1000/3000

1000/3000

10D/20D

GYFTY53-20~24

20~24

4

2

14.5

209

1000/3000

1000/3000

10D/20D

GYFTY53-26~30

26~30

5

1

14.5

209

1000/3000

1000/3000

10D/20D

GYFTY53-32~36

32~36

6

0

14.5

209

1000/3000

1000/3000

10D/20D

GYFTY53-38~48

38~48

4

1

15.4

234

1000/3000

1000/3000

10D/20D

GYFTY53-50~60

50~60

5

0

15.4

234

1000/3000

1000/3000

10D/20D

GYFTY53-62~72

62~72

6

0

15.9

244

1000/3000

1000/3000

10D/20D

GYFTY53-74~84

74~84

7

1

18

297

1000/3000

1000/3000

10D/20D

GYFTY53-86~96

86~96

8

0

18

297

1000/3000

1000/3000

10D/20D

GYFTY53-98~108

98~108

9

1

19.4

338

1000/3000

1000/3000

10D/20D

GYFTY53-110~120

110~120

10

0

19.4

338

1000/3000

1000/3000

10D/20D

GYFTY53-122~132

122~132

11

1

21.3

392

1000/3000

1000/3000

10D/20D

GYFTY53-134~144

134~144

12

0

21.3

392

1000/3000

1000/3000

10D/20D
