Composite 12 Core Hybrid Fiber Optic Outdoor Optical Fiber Cable 0.36 DB And Power
Composite 12 Core Hybrid Fiber Optic Outdoor Optical Fiber Cable 0.36 DB And Power
Composite 12 Core Hybrid Fiber Optic Outdoor Optical Fiber Cable 0.36 DB And Power
Composite 12 Core Hybrid Fiber Optic Outdoor Optical Fiber Cable 0.36 DB And Power
Composite 12 Core Hybrid Fiber Optic Outdoor Optical Fiber Cable 0.36 DB And Power
Composite 12 Core Hybrid Fiber Optic Outdoor Optical Fiber Cable 0.36 DB And Power
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
Optical Power Composite Hybrid Cable
Delivery :
EXW/FOB/CIF
Country of Origin :
GUA, CN
Weight :
347kg/km (RV-2*2.5mm)
Description

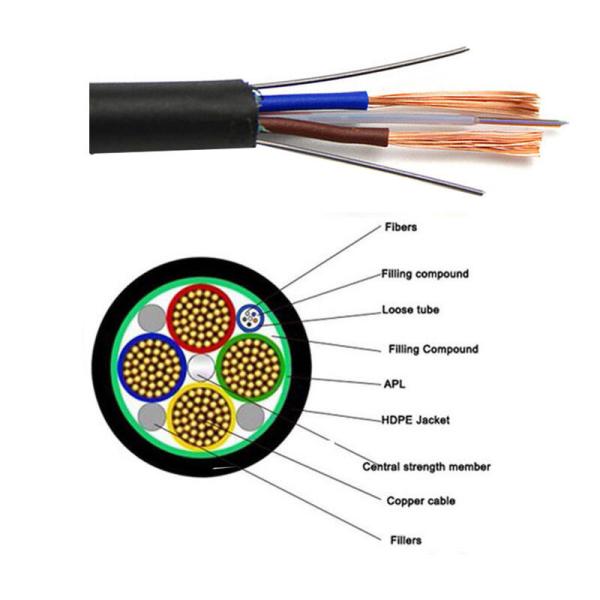

Optical Power Composite Hybrid Cable
Description
Hybrid cable fiber and power maintain relatively independent structure which is easy to import, export and link when it is installed. Cable diameter and bending radius are small. So, you can install it freely in small space and compatible with optical signal and electric energy transmission.
The application of Hybrid cable fiber and power is extensive, such as telecommunications network, construction of communication base stations in villages, remote areas in cities and towns, residential areas and buildings FTTH, security monitoring project .
Characteristics
  • Good flexibility and mechanical propertie
  • Opto and electricity integrated, fully save pipeline resources
  • Electric and optical cable maintain relatively independent structure, easy to import, export and link when installation
  • Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs
  • Larger operating temperature range
  • Larger construction temperature range
  • Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission
Applicatioin
  • Telecommunications network
  • Construction of communication base stations in villages, remote areas in cities and towns
  • Residential areas and buildings FTTH
  • Security monitoring project
  • Others occasion which information together with electric power at the same time
Optical Characteristics
　
G.652
G.655
50/125μm
62.5/125μm
Attenuation
@850nm
　
　
≤3.0 dB/km
≤3.0 dB/km
(+20℃)
@1300nm
　
　
≤1.0 dB/km
≤1.0 dB/km
　
@1310nm
≤0.36 dB/km
≤0.40 dB/km
　
　
　
@1550nm
≤0.22 dB/km
≤0.23dB/km
　
　
Bandwidth (Class A)
@850nm
　
　
≥500 MHz·km
≥200 MHz·km
@1300nm
　
　
≥1000 MHz·km
≥600 MHz·km
　
Numerical Aperture
　
　
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm
　
　

Technical Parameters
Item
Technical Specifications
Bending Radius(mm)
Dynamic
30D
Static
20D
Tensile Strength(N)
Short Term
3000
Long Term
1500
Crush Resistance (N/100mm2)
Short Term
3000
Long Term
1000
Operating Temperature range
Electric wire
-15℃～+70℃
Other materials except electric wire
-40℃～+70℃
Water-blocking / Waterproof Performance
No water leak if immersed in water for long time
Construction Temperature range
-20℃～+60℃
　
0℃～+60℃
Weight
347kg/km (RV-2*2.5mm)
382kg/km (RV-4*2.5mm)
502kg/km (RV-6*2.5mm)
628kg/km (RV-8*2.5mm)
Mechanical Properties
Stretching, crushing, impacting, repeated bending, torsion, winding and loss comply with YD / T 901-2001
Applicable System of Laying
Suitable for pipe, channel, cable trenches, aerial, direct burial and so on
